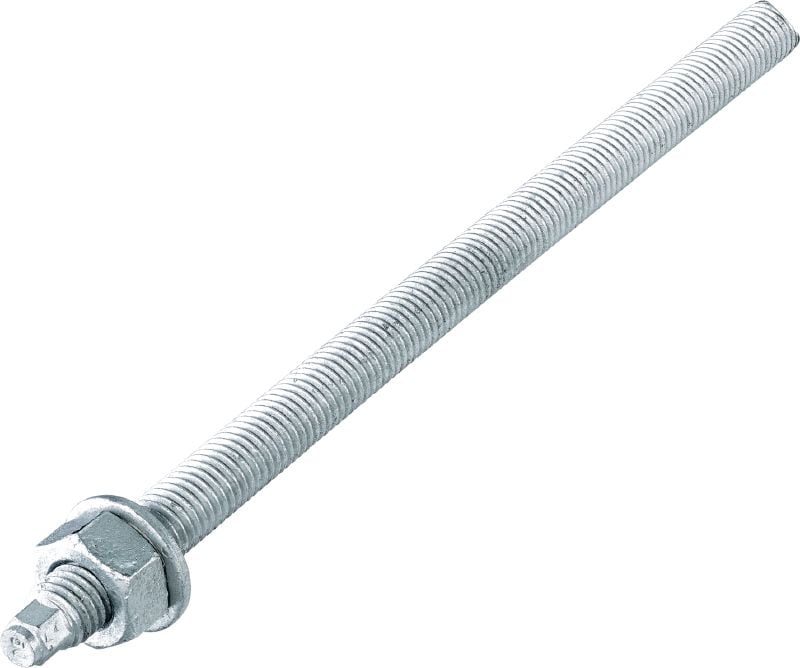

HAS-U 8.8 HDG Anchor rod
Anchor rod for use with injection and capsule adhesive anchors (8.8 CS HDG)
- Material, corrosion: Carbon steel, HDG (hot-dip galvanised)/sherardised
- Environmental conditions: Indoor with temporary condensation, Outdoor (more than 1km to coast)
- Base materials: Concrete (cracked), Concrete (non-cracked), Masonry (hollow), Masonry (solid)
Technical Data
Material, corrosion
Carbon steel, HDG (hot-dip galvanised)/sherardised
Environmental conditions
Indoor with temporary condensation, Outdoor (more than 1km to coast)
Base materials
Concrete (cracked), Concrete (non-cracked), Masonry (hollow), Masonry (solid)
PROFIS software
Yes
Approvals / test reports
ETA
Documents
Features & Applications
Features
- Head marking for easy verification of steel grade and rod length, even after installation
- Chisel-tip anchor rod for use with HVU2 adhesive capsules and for easy insertion when using with Hilti HIT injectable adhesive anchors
- Large range of anchor rod diameters (M6-M39)
- Custom lengths and additional diameters up to M39 available upon request
- Free of oil and other contamination for the highest performance with Hilti HIT adhesive anchoring systems
Applications
- Fastenings in concrete and masonry in combination with the relevant Hilti HIT adhesive anchoring systems
For approval or certificate information, please see individual items.
