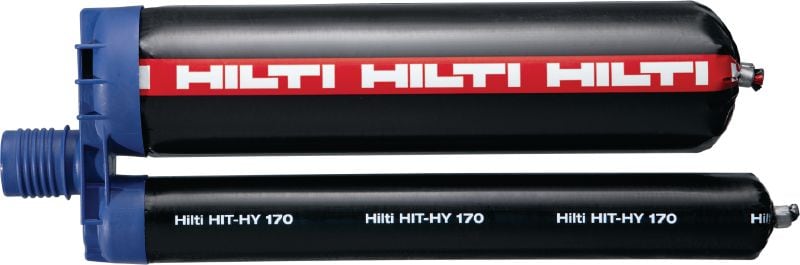

HIT-HY 170 Adhesive anchor

High-performance injectable hybrid mortar with everyday approvals for anchoring in concrete and masonry

  • Base materials: Concrete (cracked), Concrete (lightweight), Concrete (non-cracked), Masonry (hollow), Masonry (solid)
  • Base material condition: Dry, Wet
  • Approvals / test reports: ETA, Seismic

Customers also searched for anchoring in concreteanchoring in brickanchoring mortaradhesive mortar or anchoring.

Technical Data

Base materials
Concrete (cracked), Concrete (lightweight), Concrete (non-cracked), Masonry (hollow), Masonry (solid)
Base material condition
Dry, Wet
Approvals / test reports
ETA, Seismic
Seismic loading
No
Fatigue loading
No
Fire resistance
No
PROFIS software
No
Anchoring elements
AM rods, HAS-U threaded rods, HIS-N internally threaded sleeves, HIT-IC internally-threaded rods, HIT-SC mesh sleeves, Other fasteners, Rebar
Environmental conditions
Costal areas / Roads with de-icing salt, Dry indoor, Highly corrosive special applications (e.g. tunnels, swimming pools), Indoor with temporary condensation, Outdoor (more than 1km to coast), Outdoor with heavy industrial pollution
Cleaning procedures
Automatic cleaning (SafeSet hollow drill bit), Compressed-air cleaning, Manual cleaning
Storage and transportation temperature range
5 - 25 °C
In-service temperature – range
-40 - 80 °C
Free of styrene
Yes

Documents

Features & Applications

Features

  • Suitable for use in masonry materials or cracked and uncracked concrete with all anchor rods (ETA report)
  • Provides strong, reliable and easily installed fastenings in concrete and masonry materials
  • Working time optimised for anchoring applications in concrete and masonry
  • Suitable for indoor and outdoor applications as well as use in dry and wet hole conditions
  • Extensive range of accessories available (e.g. sleeves, cordless electric dispenser)

Applications

  • Fastenings in hollow and solid masonry
  • Light- and medium-duty anchoring applications such as window bars, sanitary equipment, awnings, air conditioning systems, lights
  • Anchoring light structural steel connections such as steel columns and beams
  • Anchoring secondary steel elements
  • Connection of secondary post-installed rebars

For approval or certificate information, please see individual items.
