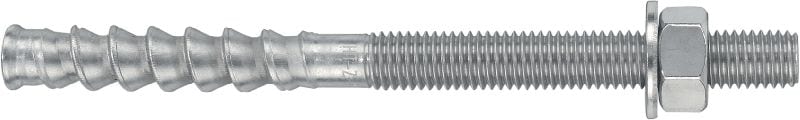

HIT-Z-R SS Anchor rod

Anchor rod HIT-Z-R M16x240 #2018437

Ultimate-performance anchor rod for injectable hybrid anchors (A4 stainless steel)

Material, corrosion: Stainless steel, A4
Drill bit diameter: 18 mm
Useable thread length: 123 mm

Customers also searched for anchor rods, anchors rods for cracked concrete, anchors rods for uncracked concrete, rods for anchoring or anchoring.

Choose options

Material composition

Steel, A4 (SS316)

Anchor size

Anchor length

95 mm
100 mm
105 mm
120 mm
140 mm
160 mm
175 mm
196 mm
205 mm
215 mm
240 mm
250 mm

Head configuration

Externally threaded

Pack size

6 pc
12 pc
20 pc
40 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

OMR 26.361

OMR 26.360 / 1 each

Technical Data

Material, corrosion

Stainless steel, A4

Drill bit diameter

18 mm

Useable thread length

123 mm

PROFIS software

Yes

Approvals / test reports

ETA, ICC-ES report (concrete), Seismic

Documents

Features & Applications

Features

Very high loads in cracked concrete and seismic applications according to ICC-ES and ETA C2 approvals
No hole cleaning required (above 5°C/41°F) with HIT HY 200
Reliable and productive solution thanks to elimination of the hole cleaning process
Variable depth of embedment to fully utilise the anchor capacity
Head marking for easy verification of rod length, even after installation
