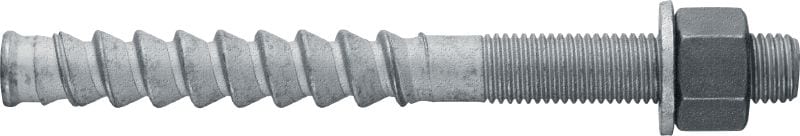

HIT-Z-F Anchor rod (88582)
HIT-Z-F (76927)
HIT-Z Long (76928)

Ultimate-performance anchor rod for injectable hybrid anchors (multilayer)

  • Material, corrosion: Carbon steel, Multilayer coating
  • Environmental conditions: Dry indoor, Indoor with temporary condensation
  • Base materials: Concrete (cracked), Concrete (non-cracked)

Choose options

Material composition
  • Steel, multilayer coating
Anchor size
  • M16
  • M20
Anchor length
  • 205 mm
  • 250 mm
Head configuration
  • Externally threaded
Pack size
  • 6 pc
  • 12 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From OMR 11.229

Technical Data

Material, corrosion
Carbon steel, Multilayer coating
Environmental conditions
Dry indoor, Indoor with temporary condensation
Base materials
Concrete (cracked), Concrete (non-cracked)
PROFIS software
Yes
Approvals / test reports
ETA, Seismic

Documents

Approval document
Sustainability Documentation
pdf ETA 11/0354 for HIT-CT 1 injection mortar for anchoring applications, English [ 868.2 KB ]
pdf ETA 11/0492 for HIT-HY 200-A injection mortar for rebar (ETAG 001-05, Option -), German, English, French, Polish [ 7.8 MB ]
pdf ETA-11/0493_HIT-HY 200-A_Anchor_EC2&TR055_50&100years_122020, English, German, Polish [ 7 MB ]
pdf ETA 12/0006 for HIT-HY 200-A injection mortar and HIT-Z(-F)(-R) rod for anchoring applications, English, German, Polish [ 9.1 MB ]
pdf ETA-12/0084_HIT-HY-200-R_Anchor_EC2&TR055_50years_082019, English, German [ 3.4 MB ]

Features & Applications

Features

  • Very high loads in cracked concrete and seismic applications in accordance with ETA C2 applications
  • No hole cleaning required (5°C / 41°F) with HIT-HY 200
  • Increased productivity and safety through elimination of the hole cleaning process
  • Head marking for easy verification of rod length, even after installation
  • The first adhesive anchoring system for use in cracked concrete and seismic applications in diamond-cored holes

Applications

  • Fastenings in cracked and uncracked concrete in combination with HIT-HY 200
  • Seismic anchoring applications

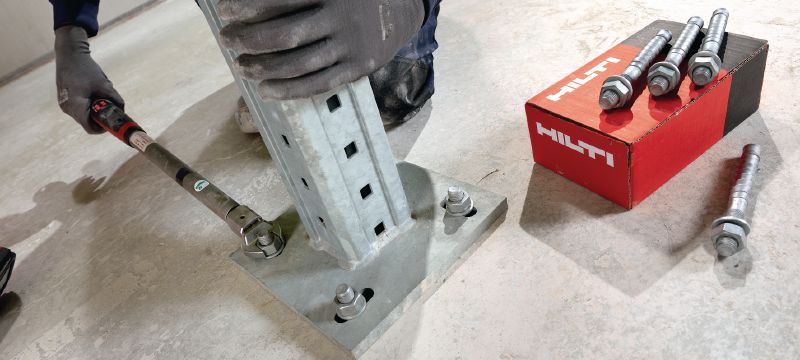

  • Anchoring structural steel
  • Anchoring secondary steel structures

For approval or certificate information, please see individual items.
