HIT-Z Anchor rod

Configurator
Technical Data
Documents
Features & Applications
Related Products
70165.tif
69293.tif
HIT-Z Long (76921)
HIT-Z Long (76922)
HIT-Z Long (76925)

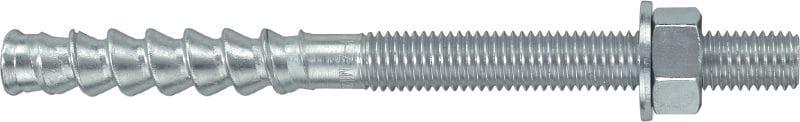

Ultimate-performance anchor rod for injectable hybrid anchors (carbon steel)

  • Material, corrosion: Carbon steel, zinc-plated
  • Environmental conditions: Dry indoor
  • Base materials: Concrete (cracked), Concrete (non-cracked)

Customers also searched for anchor rods, anchors rods for cracked concrete, anchors rods for uncracked concrete, rods for anchoring or anchoring.

Choose options

Material composition
  • Steel, zinc-plated (min. 5 µm)
Anchor size
  • M8
  • M10
  • M12
  • M16
  • M20
Anchor length
  • 80 mm
  • 95 mm
  • 105 mm
  • 115 mm
  • 140 mm
  • 155 mm
  • 160 mm
  • 196 mm
  • 205 mm
  • 215 mm
  • 250 mm
Head configuration
  • Externally threaded
Pack size
  • 6 pc
  • 12 pc
  • 20 pc
  • 40 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From OMR 1.382

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Environmental conditions
Dry indoor
Base materials
Concrete (cracked), Concrete (non-cracked)
PROFIS software
Yes
Approvals / test reports
ETA, Seismic
Cleaning procedures
Non-cleaning
Type of fastening
Pre-fastening, Through-fastening

Documents

Approval document
Technical information
Brochure
Sustainability Documentation
pdf ETA 12/0006 for HIT-HY 200-A injection mortar and HIT-Z(-F)(-R) rod for anchoring applications, English, German, Polish [ 9.1 MB ]
pdf ETA-19/0632 HIT-HY 200-A/R V3 with HIT-Z Anchor, English, German, Polish [ 19.5 MB ]
pdf ETA-19/0802 HIT-HY 200-A/R V3 with HIT-Z(-R)-D TP Jul-2023 (dynamic), English, German, Polish [ 6.7 MB ]

Features & Applications

Features

  • Suitable for very high loads in cracked concrete and seismic applications according to ICC-ES and ETA C2 approvals
  • No hole cleaning required (above 5°C/ 41°F) with HIT-HY 200
  • More reliable and productive solution thanks to potential elimination of the hole cleaning process
  • Variable depth of embedment to fully utilise the anchor capacity
  • Head marking for easy verification of rod length, even after installation

Applications

  • Fastenings in cracked and uncracked concrete made with Hilti HIT-HY 200
  • Seismic anchoring applications (e.g. bracing of reinforced concrete buildings)
  • Anchoring structural steel connections (e.g. steel columns, beams)
  • Anchoring secondary steel structures (e.g. racking, guard rails, sound barriers)
  • Anchoring safety barriers, balustrades, fire escape staircases

For approval or certificate information, please see individual items.
