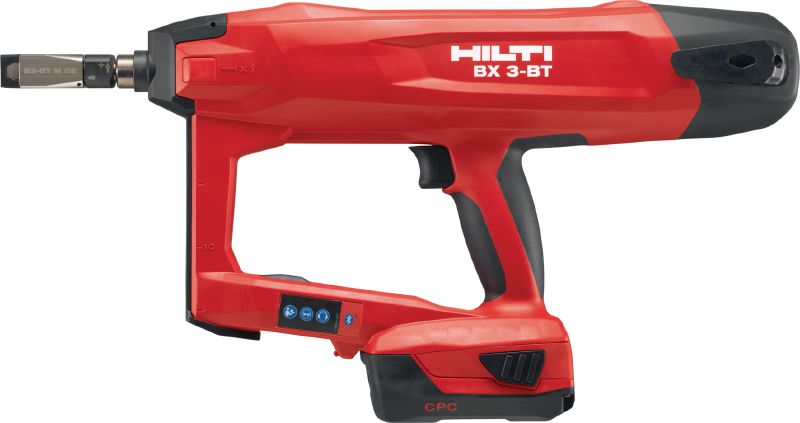

BX 3-BT (02) Cordless fastening tool

Battery-actuated tool BX 3-BT A22 #2194595

Configurator
Technical Data
Documents
Features & Applications
Related Products
L117638 (199864)
L117659_cropped (200630)
L117684_cropped (200642)
L117730_cropped (200622)
L117789_cropped (200656)

22V cordless nailer for fastening X-BT threaded stud

  • Dimensions (LxWxH): 490 x 134 x 255 mm
  • Tool body weight: 3.452 kg
  • Fastener intake: Threaded stud

Choose options

Hilti Connect
  • Yes
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
OMR 1,216.972
OMR 1,216.970
/
1 each

Technical Data

Dimensions (LxWxH)
490 x 134 x 255 mm
Tool body weight
3.452 kg
Fastener intake
Threaded stud
Fastener length range
31 - 31 mm
Bluetooth
No
Rated voltage
21.6 V

Documents

pdf Direct Fastening Technology Manual, English [ 6 MB ]
pdf [PDS_T_002_BX] BX 3 Battery-actuated tool - Data Sheet 05/2025, English [ 1.3 MB ]

Features & Applications

Features

  • Built on the second generation of Hilti's combustion-free direct fastening technology – for high-quality and more reliable X-BT threaded stud fastening on steel
  • Combustion-free operation – no powder cartridges to store and dispose of
  • Drives up to 800/500/400 fasteners with a single battery charge (depending on B22 battery model - 5.2, 3.0 or 2.6 Ah)
  • Fastens X-BT threaded studs which do not require further reworking for corrosion protection on steel base material
  • Ideal for use on high-strength coated steel 8 mm (5/16") or thicker

Applications

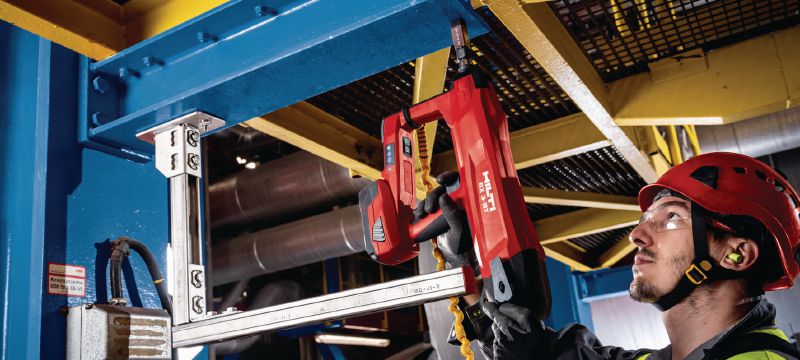

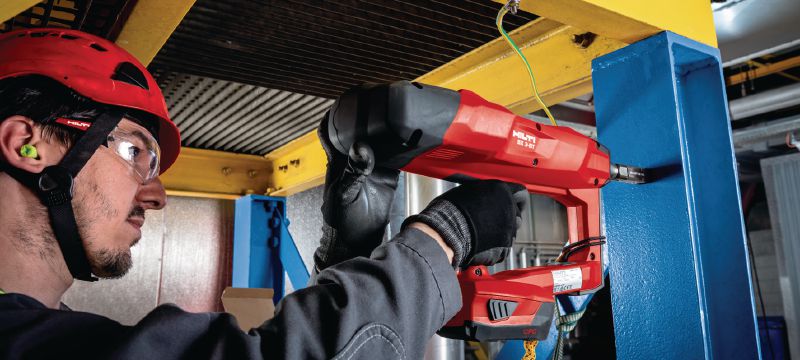

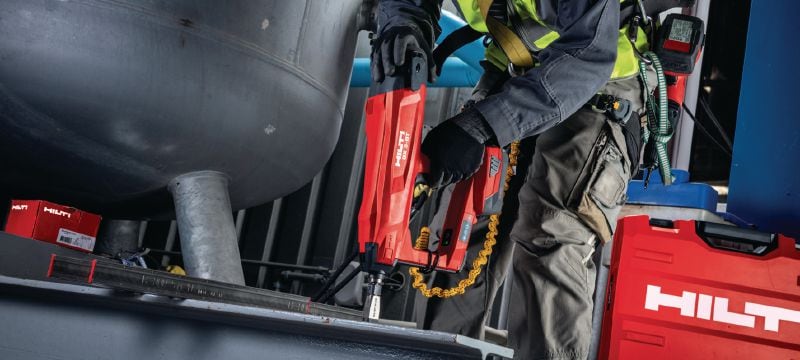

  • Fastening cable trays, cable ladders, channels, struts, light-duty electrical installations (T-bars, instrumentation panels, junction boxes), fitting out and much more
  • Fastenings X-BT threaded stud to fire-coated (PFP) beams
  • Fastening pipe supports and cable tray supports to steel
  • Fastening handrails to steel
  • Fixing façade brackets to steel
