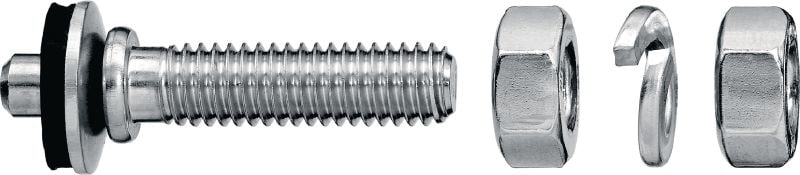

X-BT-ER Threaded studs (metric)

X-BT-ER
L076596.tiff
L076570.tiff

Threaded stud for electrical connectors on steel in highly corrosive environments

  • Base materials: Steel
  • Minimum thickness of base material (steel): 8 mm
  • Corrosion protection: Stainless steel A4(316) or equivalent
ultimate

Customers also searched for electrical connectors, industrial electrical instrumentation, electrical supports, industrial fastening or direct fastening.

Choose options

Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Base materials
Steel
Minimum thickness of base material (steel)
8 mm
Corrosion protection
Stainless steel A4(316) or equivalent
Environmental conditions
Outdoor, areas with heavy industrial pollution, Coastal areas, Outdoor with moderate concentration of pollution, Outdoor with low pollution, Indoor with temporary condensation, Dry indoor, Outdoor temporary applications
Material
Carbon steel
Length
31 mm
Approvals
ABS, BV, DNV GL, Lloyd's Register, UL
Product class
Ultimate

Documents

pdf Direct Fastening Technology Manual, English [ 11 MB ]
pdf X-BT-ER Data Sheet, English [ 2.4 MB ]

Features & Applications

Features

  • Ideal for equipotential bonding
  • Ideal for protection against static electricity
  • Maximum safety – allows electrical current to flow through the stud and discharge properly to the base material
  • Suitable for use on most standard and high-strength steel structures and pipes
  • High corrosion resistance – suitable for use in most industries: marine, offshore, petrochemical and power plant applications

Applications

  • Functional bonding
  • Protective bonding
  • Terminal connection
  • Lightning protection
  • Bonding and earthing/grounding

For approval or certificate information, please see individual items.
