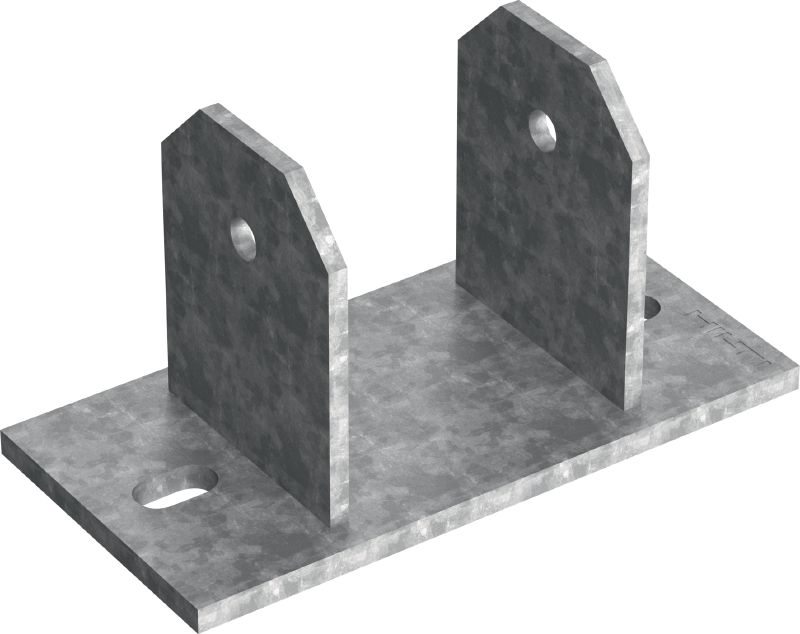

MIC-CU-MA connector
Connector MIC-CU-MA concrete #304828
MI-System connector for diagonal bracing
- Weight: 2.21 kg
- Material composition: Connector: DD11 MOD - HN 547, S235JR - DIN EN 10025; bolt: 8.8 grade steel; nut: 8 grade steel
- Surface finish: HDG: connector 55 µm - DIN EN ISO 1461; bolt, nut 45 µm - DIN EN ISO 1461
Choose options
Modular Girder Type
- 90, 120
Pack size
- 4 pc
Quantity
Packs
Total Pieces
4
Discounted net
OMR 30.262
OMR 30.260 / 1 each
Technical Data
Weight
2.21 kg
Material composition
Connector: DD11 MOD - HN 547, S235JR - DIN EN 10025; bolt: 8.8 grade steel; nut: 8 grade steel
Surface finish
HDG: connector 55 µm - DIN EN ISO 1461; bolt, nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
84 Nm
Wrench size
19 mm
Features & Applications
Features
- Anchor holes for fastening to concrete
- Elongated holes – to simplify exact positioning
Applications

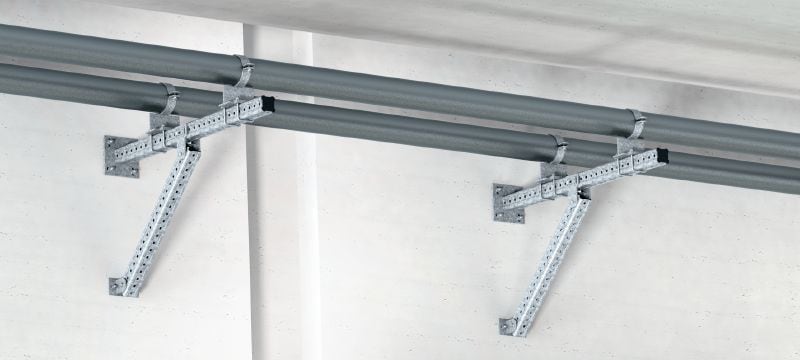

- Connecting girders directly to concrete at angles between 0° and 180°
- Fastening to concrete walls
