MIC-U Connector
Connector MIC-120-U #304804

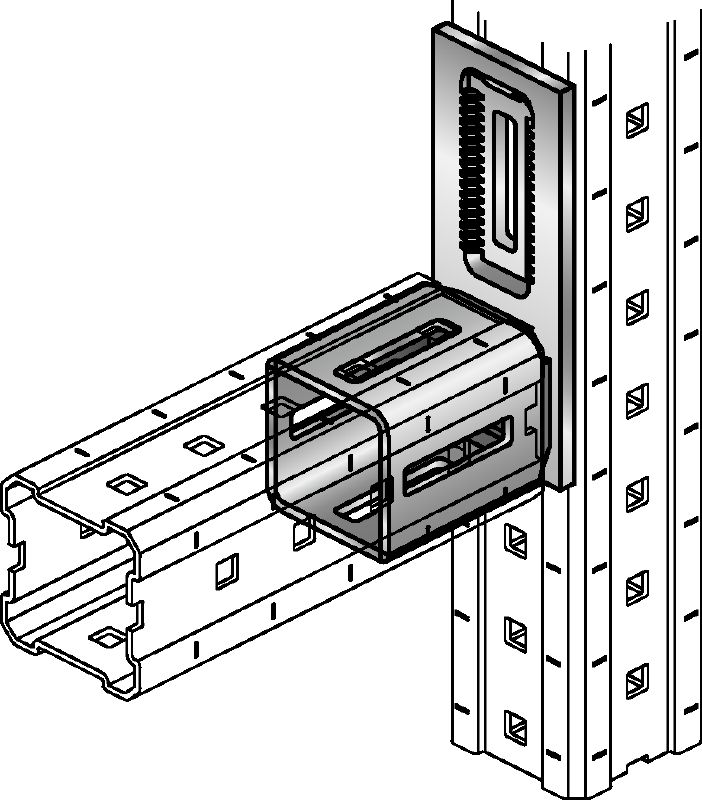

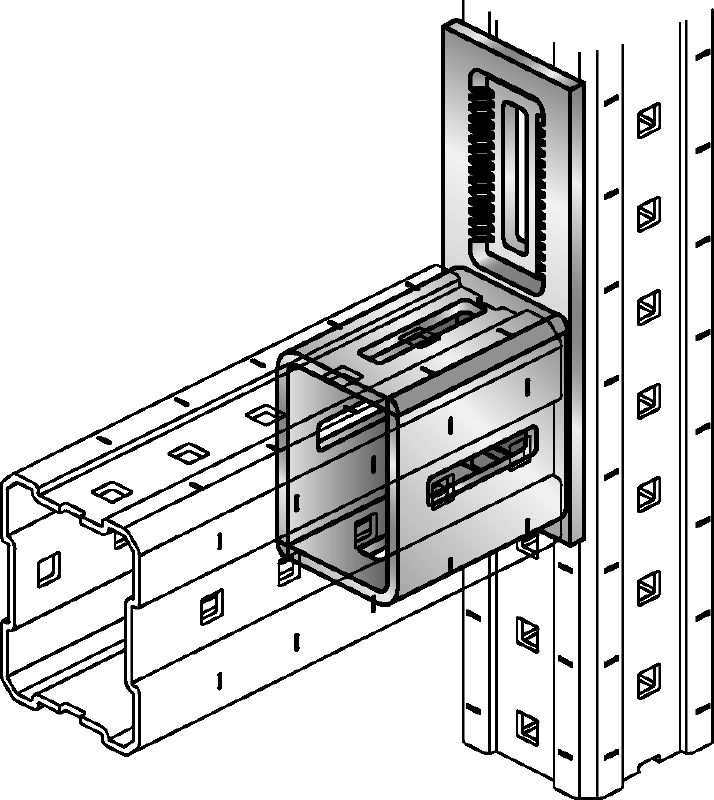

Connector for attaching modular girders to each other at right angles
- Weight: 2.79 kg
- Material composition: Connector: DD11 MOD - HN 547, S235JR - DIN EN 10025; backing plate, toothed plate: EN-GJMW-400-5 - DIN EN 1562, EN-GJMW-450-7 - DIN EN 1562; bolt: 8.8 grade steel; nut: 8 grade steel
- Surface finish: HDG: connector 55 µm - DIN EN ISO 1461; backing plate, toothed plate, bolt, nut 45 µm - DIN EN ISO 1461
Customers also searched for 3d channel systems, connecting girders, cable tray installations, piping installations or metal connectors.
Choose options
Modular Girder Type
- 120
Pack size
- 4 pc
Quantity
Packs
Total Pieces
4
Discounted net
Technical Data
Weight
2.79 kg
Material composition
Connector: DD11 MOD - HN 547, S235JR - DIN EN 10025; backing plate, toothed plate: EN-GJMW-400-5 - DIN EN 1562, EN-GJMW-450-7 - DIN EN 1562; bolt: 8.8 grade steel; nut: 8 grade steel
Surface finish
HDG: connector 55 µm - DIN EN ISO 1461; backing plate, toothed plate, bolt, nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Set
Yes
Tightening torque
84 Nm
Wrench size
19 mm
Features & Applications
Features
- Provides a strong and rigid connection
- Adjustable by up to 50 mm during installation
- Can be finely adjusted by up to 5 mm
- Connector comes with self-locking nuts to help protect against vibration
- Keyed hold for optimum transmission of forces and moments
Applications
- Part of a modular four-part system for supporting cable trays, pipes and miscellaneous secondary steel
- Industrial and heavy commercial applications, eliminating the need for welding
- Crossbeam connections
