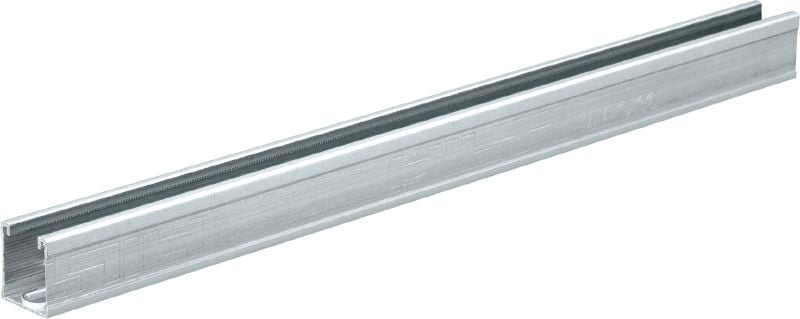

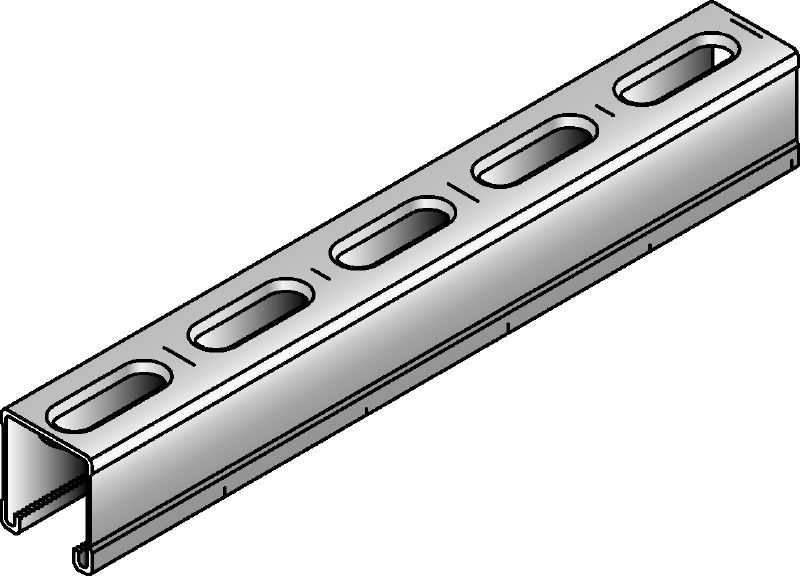

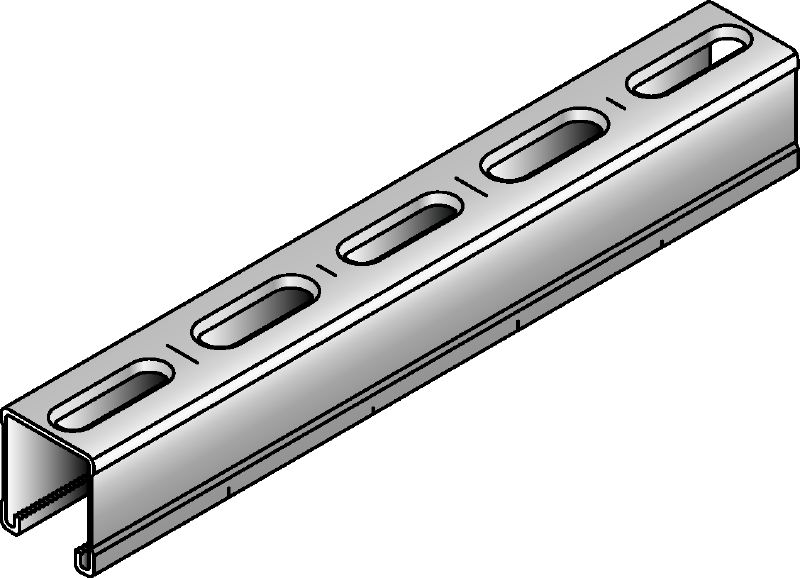

MM-C-36 C-Channel profile

Install. channel MM-C-36 3m M10 #418751

Galvanised C-Channel profile for light/medium-duty applications

  • Height: 36 mm
  • Material thickness: 1.75 mm
  • Material composition: S250GD - DIN EN 10346

Customers also searched for pipe supportscable tray supportsventilation duct supportsfastening supports or installation channel.

Choose options

Length
  • 3 m
Pack size
  • 18 m
Product options
Quantity
Packs
Total m
18
You can not see your company prices

Please Log in or register to see your company prices.

Price displayed for minimum order quantity:

0.05555555555555555 Packs (Total pieces 1)

Discounted net

OMR 7.734

OMR 7.730 / 1 m

Technical Data

32469.eps
Height
36 mm
Material thickness
1.75 mm
Material composition
S250GD - DIN EN 10346
Surface finish
Indoor Coated - Pre-galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
3990 g

Documents

Features & Applications

Features

  • C-profile with serrated edges – for optimised pull-out and shear capacity
  • Optimised back slots – for quicker, more flexible anchor fastening
  • Pre-marked dimensions – for rapid installation, assembly and cutting
  • Modular installation channel system – for versatility and flexibility
  • The Hilti MM system meets many requirements set by the leading green building standards (LEED®, DGNB®, BREEAM®, etc.)

Applications

  • Light- and medium-duty pipe support system
  • Fastening ventilation ducts and cable trays
  • Recommended for use in dry interiors
  • Recommended for use in dry interiors
