MQ-41 C-Channel profile

Install. channel MQ-41 6m #236645

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG001762_v1 (187388)
L_CG001819_v3_cropped (188117)

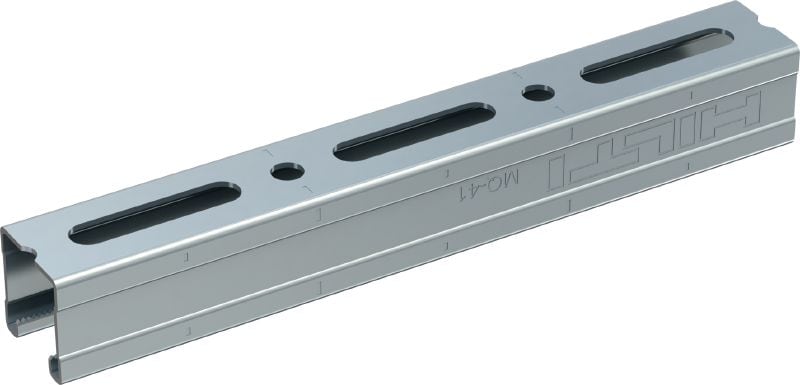

Galvanised C-Channel profile for medium-duty applications

  • Approvals: ETA
  • Height: 41.3 mm
  • Material thickness: 2.0 mm

Customers also searched for pipe supports, cable tray supports, ventilation duct supports, fastening supports or installation channel.

Choose options

Length
  • 6 m
Pack size
  • 6 m
 Product options
Quantity
Packs
Total m
6
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
OMR 37.488
OMR 6.250
/
1 m

Technical Data

Approvals
ETA
Height
41.3 mm
Material thickness
2.0 mm
Material composition
S250GD - DIN EN 10346
Surface finish
Indoor Coated - Pre-galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
12480 g

Documents

Approval document
Brochure
pdf ETA_Modulare_Schienensysteme_V1.4_de, German [ 14.2 MB ]

Features & Applications

Features

  • C-profile with serrated edges – for higher pull-out and shear capacity
  • Long back slots – for more flexible attachment options and round holes for optimised anchor fastening
  • Pre-marked dimensions – for rapid installation, assembly and cutting
  • Versatile and flexible due to modular channel system
  • Sound insulation elements available for all MQ installation channels

Applications

  • Recommended for installation in dry interiors

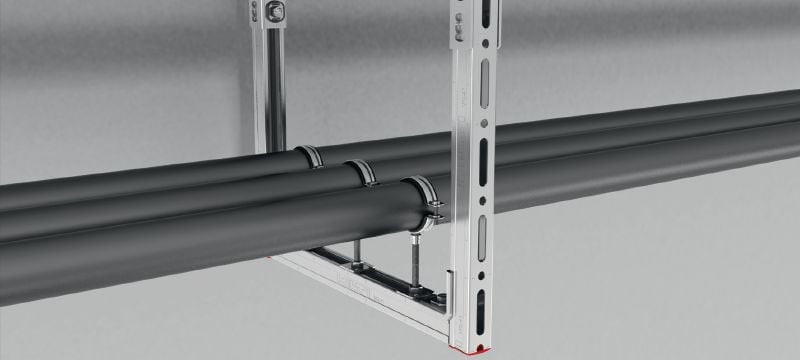

  • Modular support systems for piping
  • Modular support systems for air ducts and cable trays
  • Modular support systems for 3D structures
  • Wall-mounted installation
