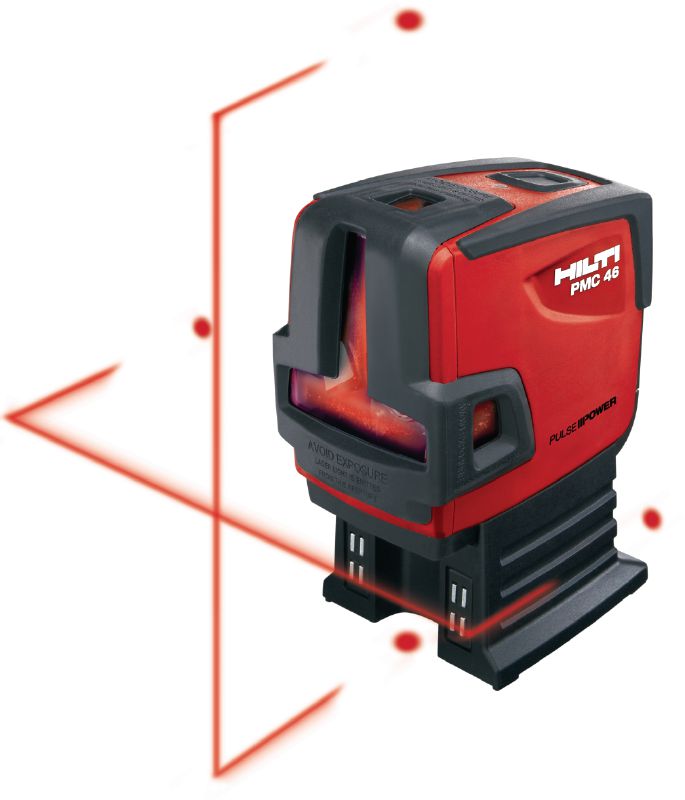

PMC 46 Plumb and line laser
Combi-laser with 2 lines and 4 points for plumbing, levelling, aligning and squaring with red beam
- Accuracy: ±2 mm at 10 m
- Max. operating distance (diameter): 60 m (Points), 20 m (Lines), 60 m (Lines, with receiver)
- Maximum operating time: 20 h
Customers also searched for interior measuring, aligning pipes, leveling doors and windows, leveling cable trays or construction measuring tools.
Technical Data
Accuracy
±2 mm at 10 m
Max. operating distance (diameter)
60 m (Points), 20 m (Lines), 60 m (Lines, with receiver) 1
Maximum operating time
20 h
Battery type
4 x 1.5 V (AA)
Self-levelling range at room temperature
±5 °
Self-levelling time
3 s
Horizontal fan angle
110 °
Vertical fan angle
110 °
IP protection class
IP 54 (EN 60529)
Laser type
Line and point
- Operating distance can be significantly affected by site conditions. See operating instructions.
Features & Applications
Features
- Compact size allows high-speed layout
- Impact protection system – rugged inner pendulum housing for higher robustness
- Out-of-level and low-battery alerts – help to prevent mistakes and unexpected downtime
- Laser class 2 – no special precautionary measures needed

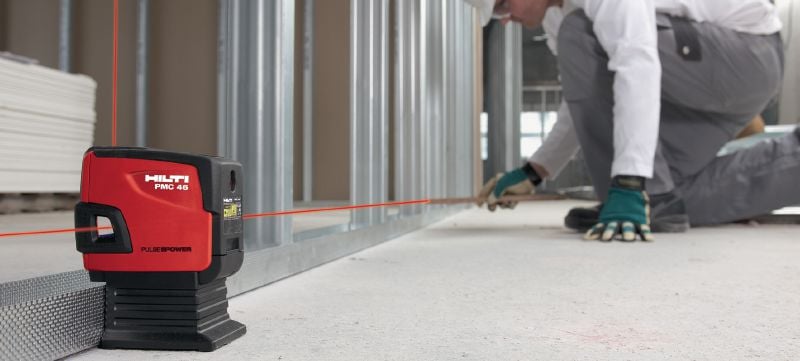

- Magnetic foot for easy attachment to drywall track
Applications
- Vertical alignment of pipes

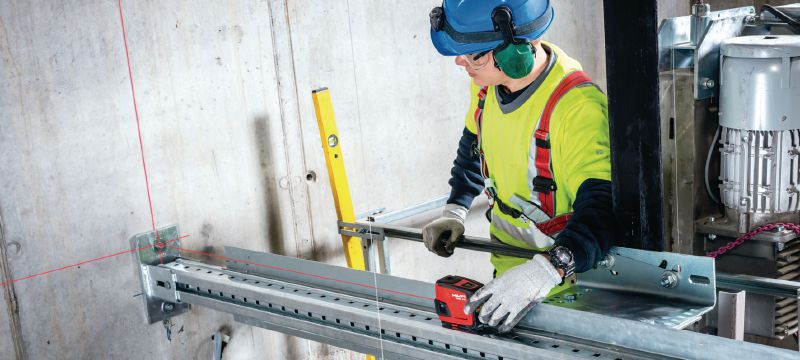

- Levelling electric sockets, cable trays, radiators and pipe installations
- Levelling and aligning doors and windows

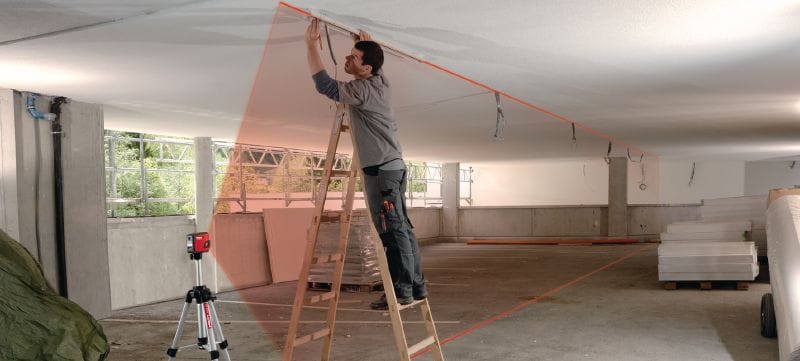

- Transferring fastening points from floors to ceilings

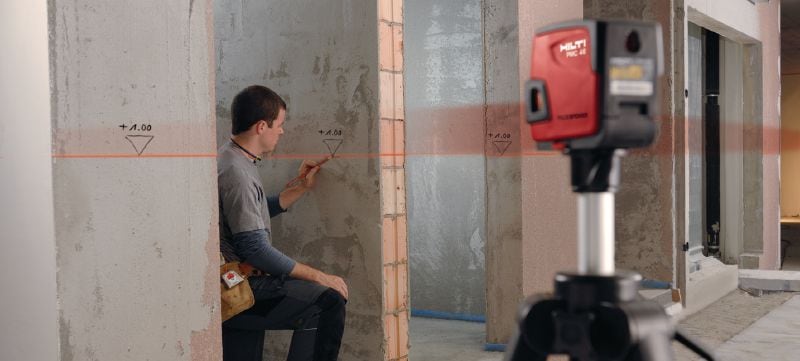

- Transferring reference heights
For approval or certificate information, please see individual items.
Services
Hilti Tool Service
- Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
- After the no-cost period, repair costs are capped
- Product warranty against parts and manufacturing irregularities for as long as we service the tool
- Product warranty against parts and manufacturing irregularities for 20 years
- 3-month no-cost period after each paid repair
LifeTime Services
- No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
- After the no-cost period, repair costs are capped for as long as we service the tool
- 3-month no-repair-cost period again after every paid repair
- Materials and workmanship warranty over the entire life of the tool
- Pick-up and delivery service
