PD-CS Laser meter

Laser range meter PD-CS #2102498

Configurator
Technical Data
Features & Applications
Related Products
Services
PD-CS Laser range meter (87684)
PD-CS Laser range meter (87685)
PD-CS Laser range meter (87686)
PD-CS (77254)
PD-CS (89405)
PD-CS (77257)
PD-CS (77255)

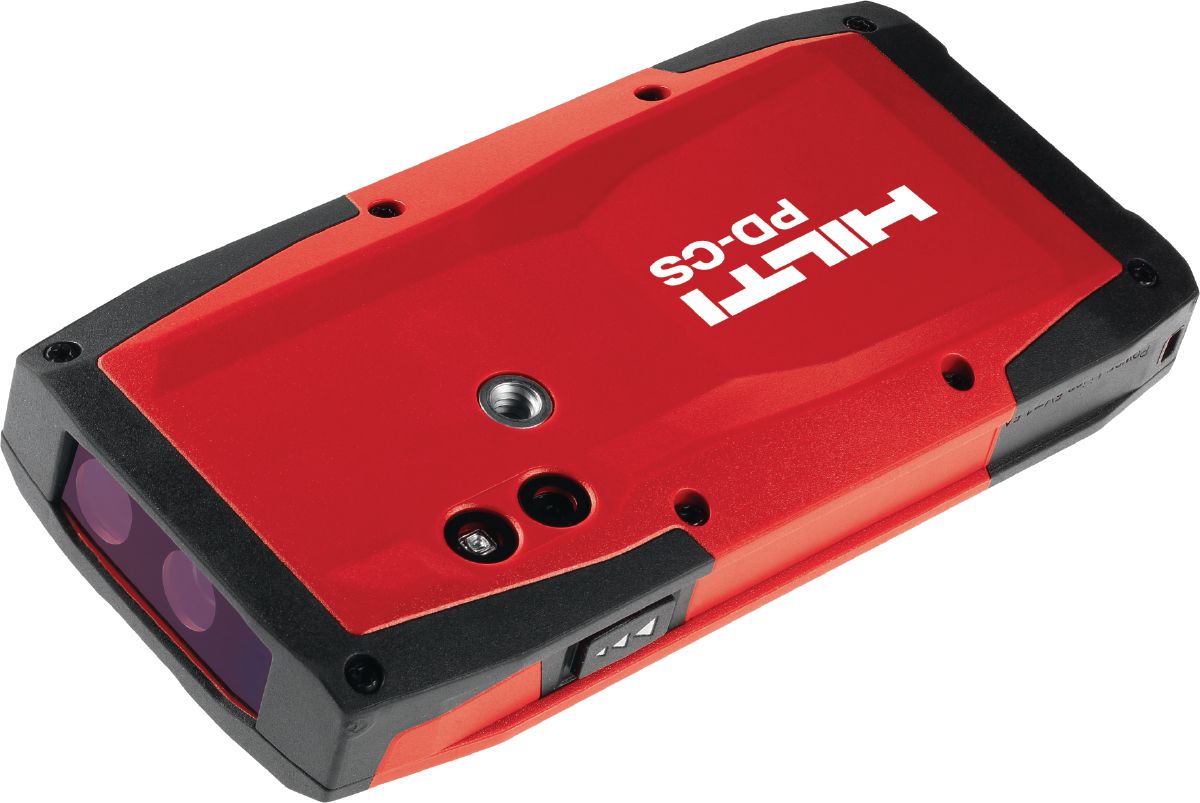

Ultimate laser meter with Wi-fi and built-in camera for documenting measurements up to 200 m / 650 ft

  • Measurement accuracy: 1.0 mm
  • Measuring functions: Single and continuous measurement, Digital level
  • Calculation functions: Area, Volume, Trapezoid (2x), Pythagoras (3x), Indirect measurement (4x), Addition, Subtraction, Offset, Timer, Min/max

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
OMR 1,164.432
OMR 1,164.430
/
1 each

Technical Data

Measurement accuracy
1.0 mm
Measuring functions
Single and continuous measurement, Digital level
Calculation functions
Area, Volume, Trapezoid (2x), Pythagoras (3x), Indirect measurement (4x), Addition, Subtraction, Offset, Timer, Min/max
Data memory
Internal flash memory
Maximum operating time
10 h
Battery type
Li-ion
Laser class
<1 mW, 635 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)
IP protection class
IP 54 (EN 60529)
Interface
Bluetooth, USB, WiFi

Features & Applications

Features

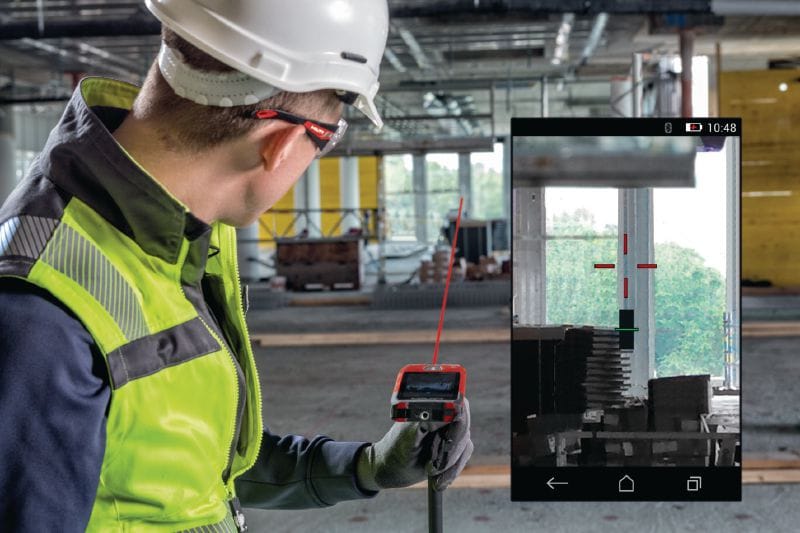

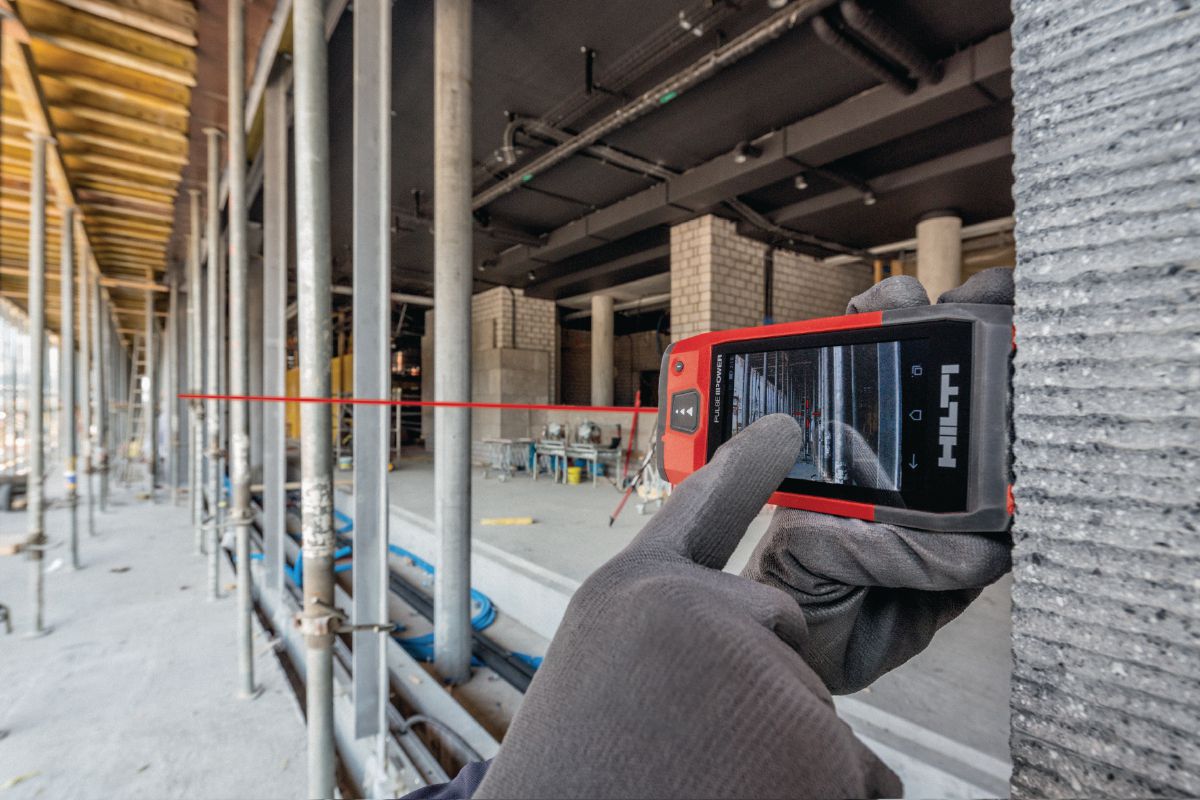

  • Built-in target camera to easily position the laser point outdoors
  • Save thousands of measuring results with the 8 GB built-in memory – streamlines the recording of survey data and reduces opportunities for mistakes
  • Export measurements to a report (PDF), spreadsheet (CSV) or photo (JPG) for easy and efficient documentation production

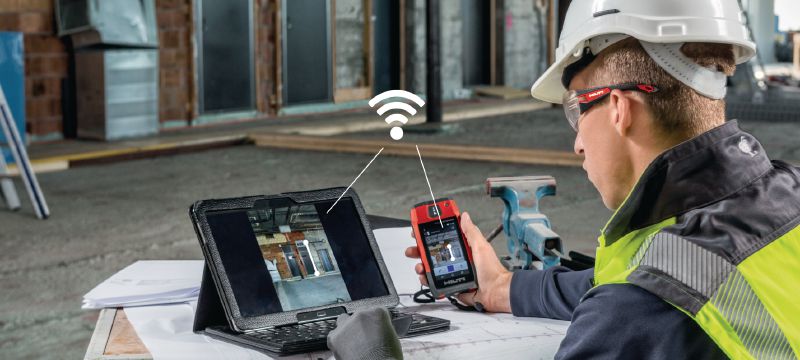

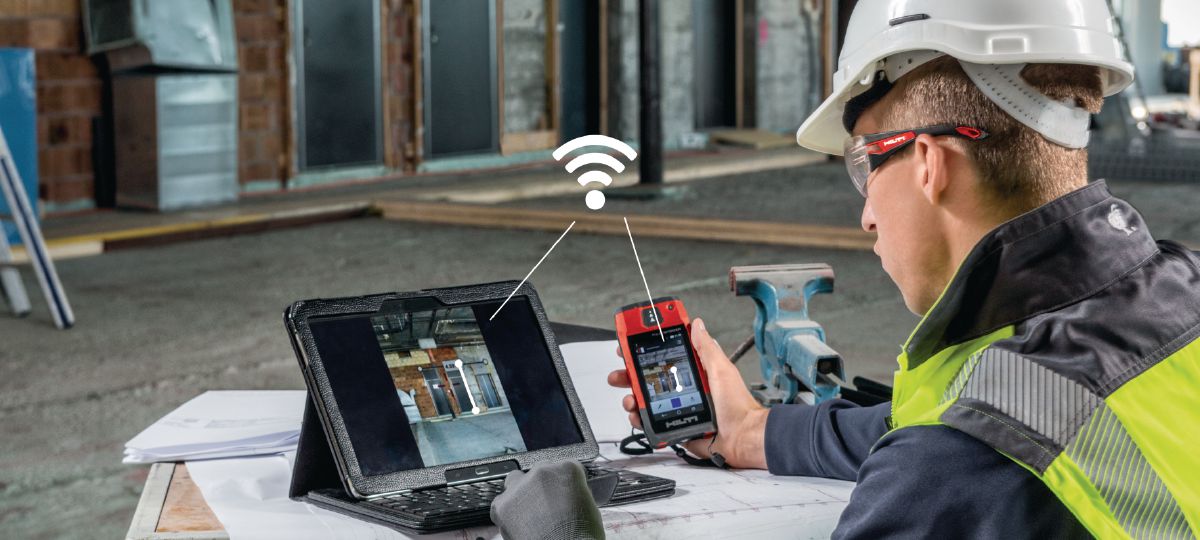

  • Wi-Fi, Bluetooth and USB interface – instantly send measurements to colleagues and other devices from anywhere

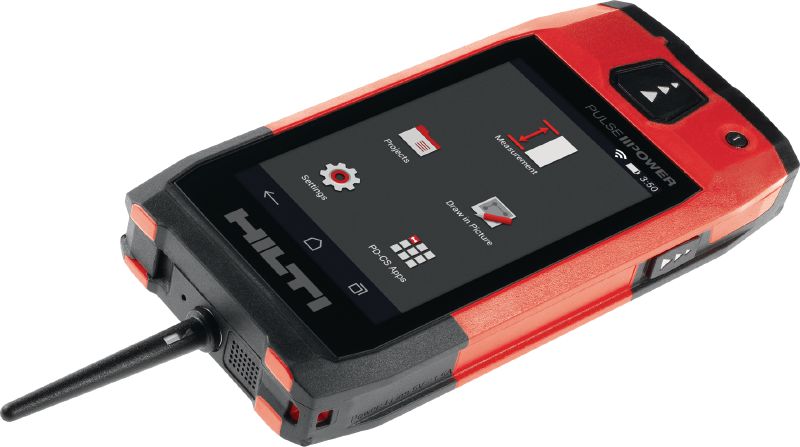

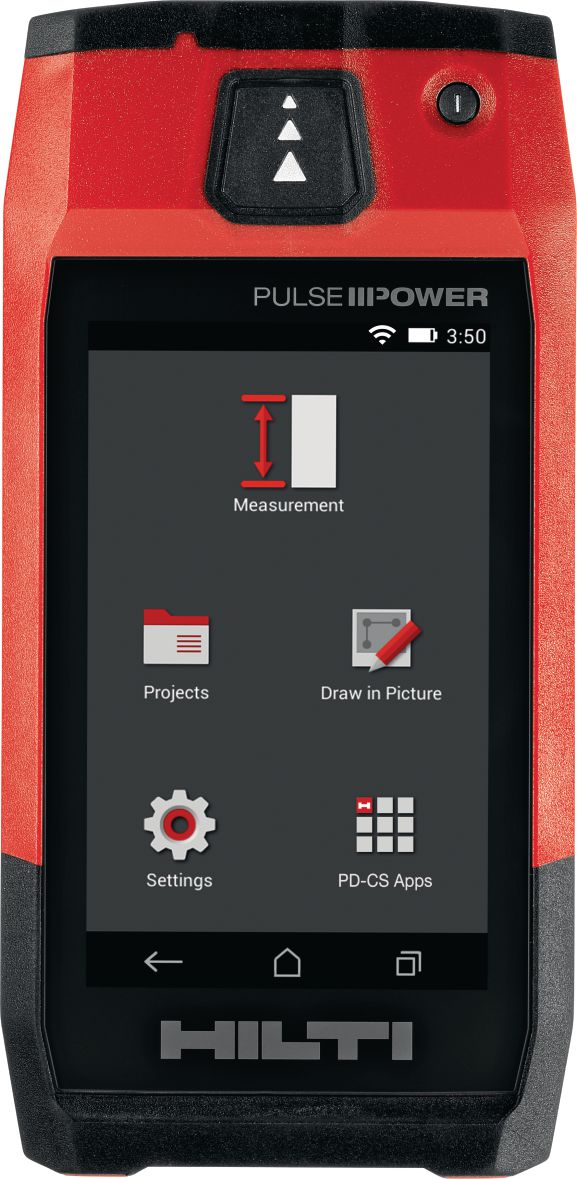

  • User-friendly Android touchscreen menus for intuitive navigation

Applications

  • Clear documentation of measurements while making a quotation to win a job, or for purchasing materials
  • Preparing documentation of quality checks to ensure work was fully completed to specification or for listing faults that need to be fixed
  • Checking a repeated series of measurements requiring many measurements, such as formwork heights or railings

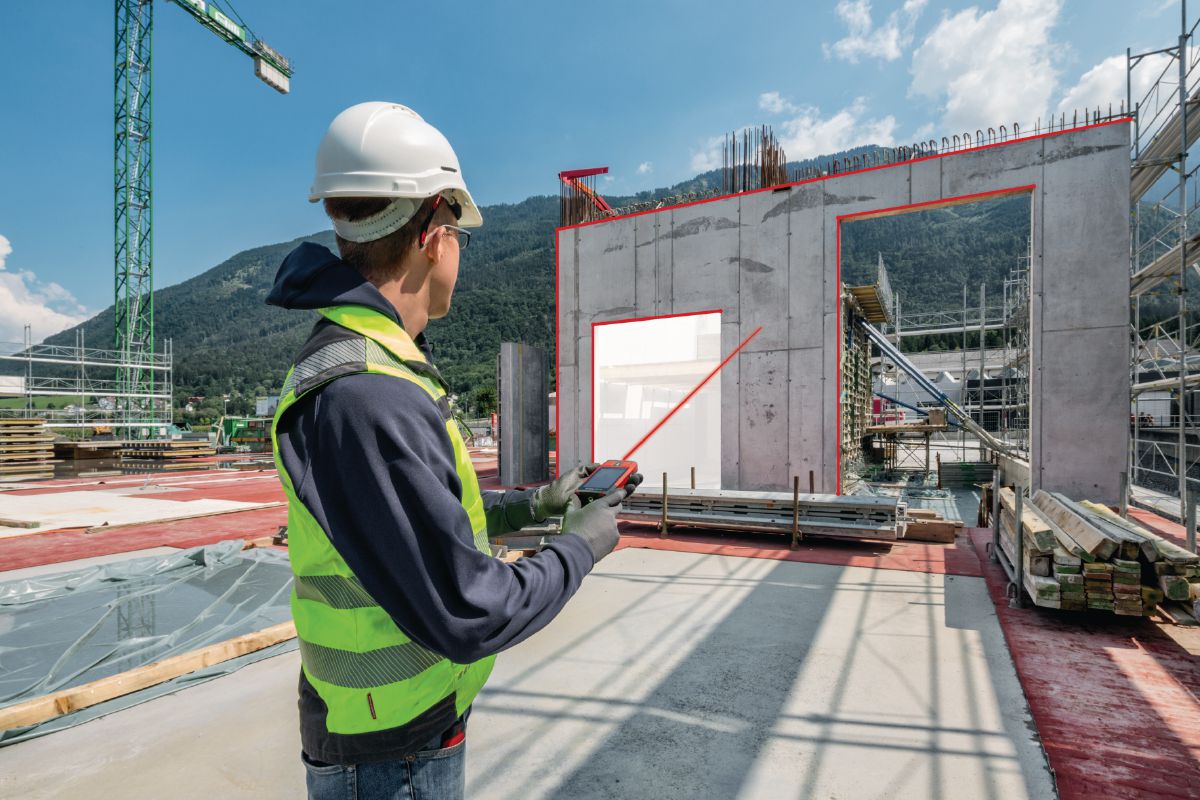

  • Taking difficult outdoor measurements such as scaffolding and roofing dimensions
  • Avoiding bending down to the ground to take measurements, as the PD-CS is compatible with the Hilti PDA 72 long extension (sold separately)

Services

Hilti Tool Service

  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
More information about Tool Services

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 3-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
