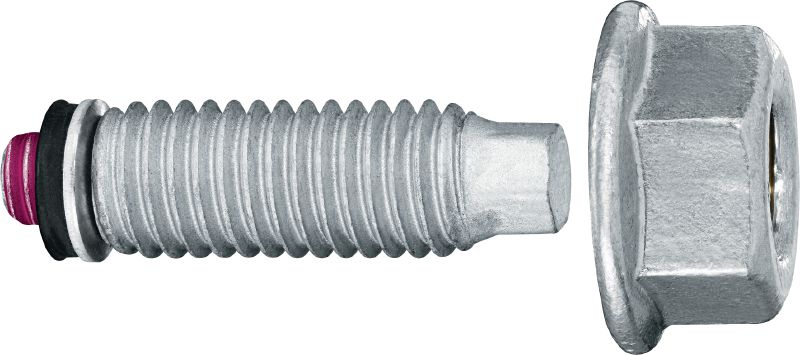

S-BT MF Screw-in stud

S-BT-MF M10/15 AN 6, S-BT-MF W10/15 AN 6 (83251)

S-BT fastening system - Fast. Simple. Reliable. (EN / 86153)

Threaded screw-in stud (carbon steel, Metric or Whitworth thread) for multi-purpose fastenings on steel in mildly corrosive environments

Base materials: Steel
Minimum thickness of base material (steel): 6 mm
Corrosion protection: Duplex coating, equivalent to 45 µm hot-dip galvanised

ultimate

Customers also searched for Composite studs, Stainless stud fasteners, Stainless stud nails, Blunt tip screw studs or Multi-fastening studs.

Technical Data

Base materials

Steel

Minimum thickness of base material (steel)

6 mm

Corrosion protection

Duplex coating, equivalent to 45 µm hot-dip galvanised

Environmental conditions

Outdoor, mildly corrosive

Material

Carbon steel

Approvals

ABS, BV, DNV, ETA, ICC-ES, LR, RMR

Product class

Ultimate

Documents

Features & Applications

Features

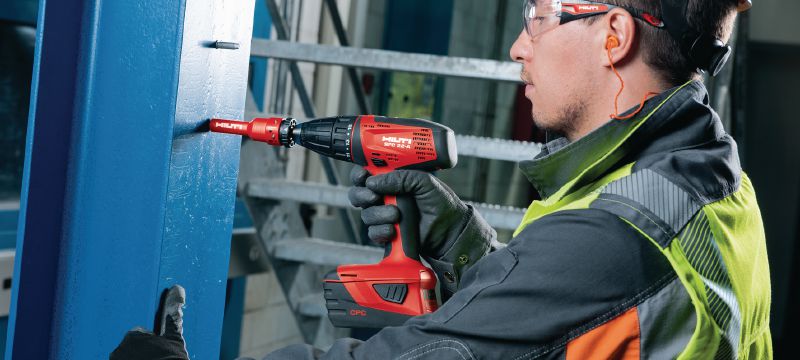

The S-BT MF is easier and more reliable – no electric supply cords or heavy equipment needed for installation
Suitable for use in mildly corrosive environments (C3) on coated steel

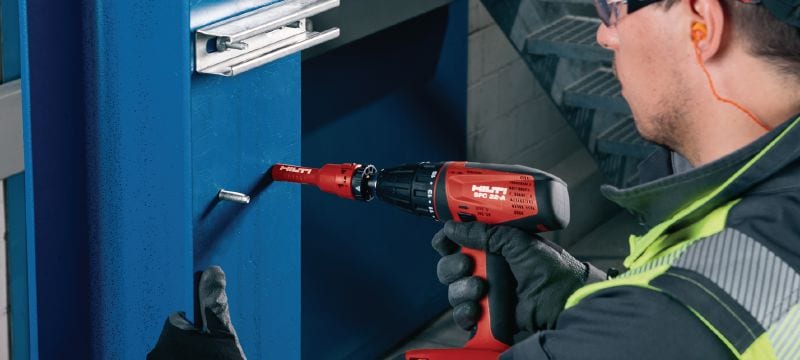

Easy installation in tight spaces
No rework on coated steel

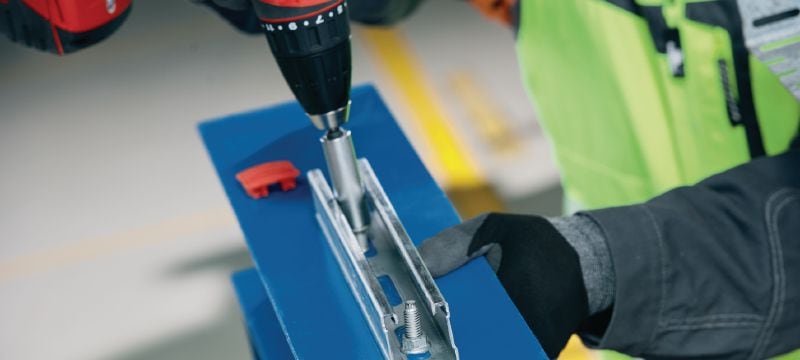

Compatible with Hilti MQ and MC installation channels

Applications

General fastenings on steel structure with a thickness of 6 mm (1/4") and greater
Fastening cable ladders using channels or hold-down/expansion guide clips

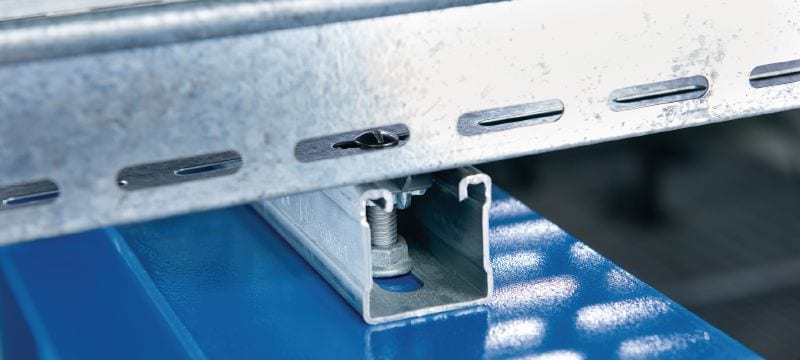

Fastening cable trays and cable runs using channels or conduit clips

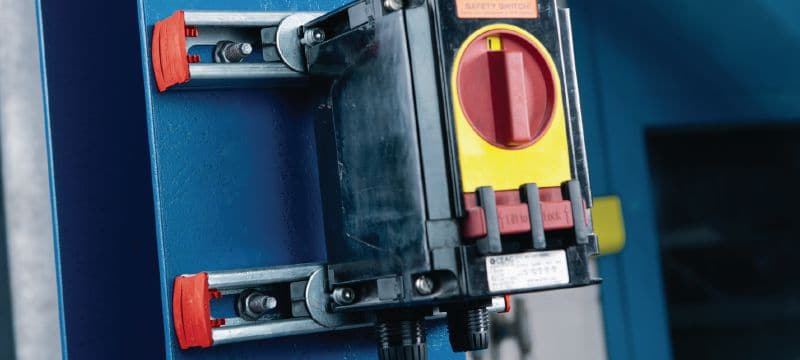

Fastening junction boxes, switchgear and instrumentation panels directly or using channels
Fastening lighting fixtures, signage etc.

For approval or certificate information, please see individual items.
