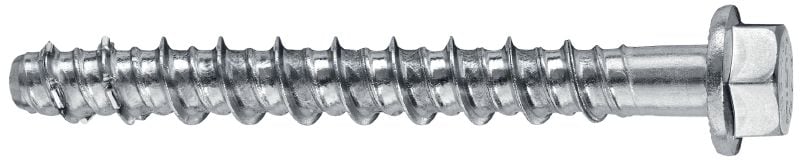

HUS-HR 6/8/10/14 Concrete screw anchor

L026965_HUS-HR.tif
SIW 22T-A

Ultimate-performance screw anchor for quicker permanent fastening in concrete (A4 stainless steel, hex head)

  • Material, corrosion: Stainless steel, A4
  • Head configuration: Hex head
  • Approvals / test reports: ETA, Fire, Seismic

Customers also searched for screw anchors, anchoring railings, anchors, reusable anchors or anchoring.

Choose options

Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Material, corrosion
Stainless steel, A4
Head configuration
Hex head
Approvals / test reports
ETA, Fire, Seismic
Base materials
Concrete (aerated), Concrete (cracked), Masonry (solid)
Type of fastening
Through-fastening
Reusable (and removable)
Not possible
Cleaning procedures
Manual cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor (more than 1km to coast)
Installation direction
All
Material composition
Steel, A4

Documents

pdf Technical data sheet for HUS-HR, CR screw anchor, English [ 606 KB ]

Features & Applications

Features

  • Higher productivity – less drilling and fewer operations than with conventional anchors
  • Hexagonal head with integral washer for neat appearance when fastening through in-place parts
  • Can be set reliably without need for a torque wrench – HSE product profile available
  • Cutting edges are welded to the thread to ensure perfect setting even under critical conditions (high-strength concrete, used drill bits, rebar hits)
  • Reduced edge and spacing distances

Applications

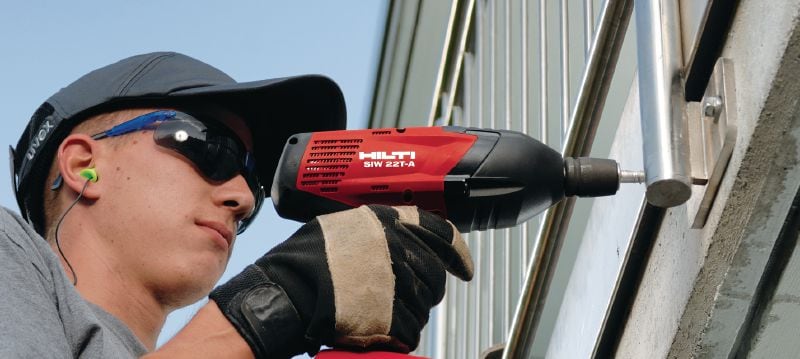

  • Installing railings
  • Anchoring facade panels
  • Tunnel construction
  • Stadium seating

For approval or certificate information, please see individual items.
