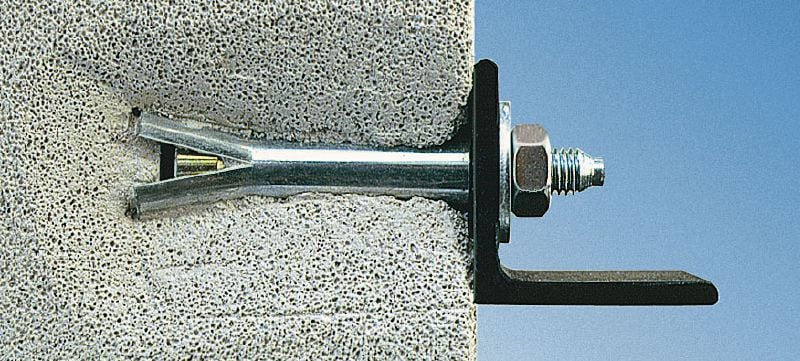

HPD Aircrete sleeve anchor
Economical sleeve anchor for light-duty fastenings in aerated concrete
- Head configuration: Externally threaded, Inner thread
- Environmental conditions: Indoor, dry conditions
- Approvals / test reports: DIBt, Fire, VDS
Choose options
Anchor size
- M10
Anchor length
- 110 mm
Pack size
- 25 pc
Quantity
Packs
Total Pieces
1
Discounted net
From OMR 5.862
Technical Data
Head configuration
Externally threaded, Inner thread
Environmental conditions
Indoor, dry conditions
Approvals / test reports
DIBt, Fire, VDS
Material, corrosion
Carbon steel, zinc-plated
Type of fastening
Pre-fastening
Documents
Features & Applications
Features
- Fast and easy setting procedure, no drilling required
- Always set correctly thanks to the blue safety mark on the rod
- Design features ensure high load performance
- Approved for the tension zone of reinforced aerated concrete slabs in roof and ceiling
- Fire resistance data F120 available
Applications
- Any kind of light duty fastening in aerated concrete.
- MQ channels
- Sprinkler systems
- Air ducts
For approval or certificate information, please see individual items.
