TE 30-A36 Cordless rotary hammer

Cordless combihammer TE 30-A36 case #2173218

L097056 (178449)
L098017_cropped (179503)
L098027_cropped (179506)
L098157_cropped (179516)
L098086_cropped (179511)

Powerful SDS Plus (TE-C) cordless rotary hammer for heavy-duty concrete drilling and corrective chiselling

  • Weight according to EPTA-Procedure 01/2003 without battery: 5.1 kg
  • Optimum hammer drilling range: 10 - 20 mm
  • Single impact energy: 3.6 J

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
OMR 708.017
OMR 708.020
/
1 each

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
5.1 kg
Optimum hammer drilling range
10 - 20 mm
Single impact energy
3.6 J
Hammer drilling diameter range
4 - 28 mm
Hammer drilling RPM
850 rpm
Full hammering frequency
4500 impacts/minute
Functionality
Active Torque Control (ATC), Active Vibration Reduction (AVR), Removable chuck, Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
10.3 m/s² 1
Triaxial vibration for chiselling in concrete
8.5 m/s² 2
A-weighted emission sound power level
99 dB (A) 3
A-weighted emission sound pressure level
95 dB (A) 4
Dust removal system available
TE DRS-D, TE DRS-S
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see Operating Instruction for more details)
  4. According to the applicable product standard (see Operating Instruction for more details)

Features & Applications

Features

  • Active Torque Control (ATC) stops the tool body from spinning uncontrolledly if the drill bit jams – helping to reduce a common safety hazard
  • Active Vibration Reduction (AVR) makes the rotary hammer less tiring to use – helping to increase daily productivity
  • Brushless motor for exceptionally high performance and superior system efficiency
  • Quick-change chucks – changing bits is fast and tool-free
  • Extra-long lifetime thanks to a highly robust chuck, motor components and casing

Applications

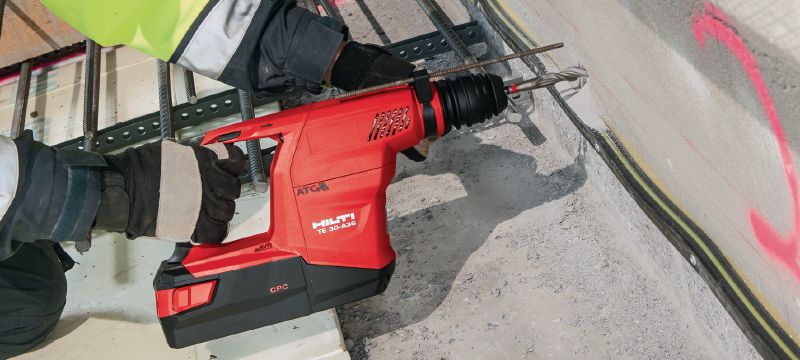

  • Drilling anchor holes and through-holes in concrete and masonry, diameter range 4-28 mm, recommended range 10-20 mm
  • Drilling holes for rebar doweling, diameter range 4-28 mm, recommended range 10-20 mm

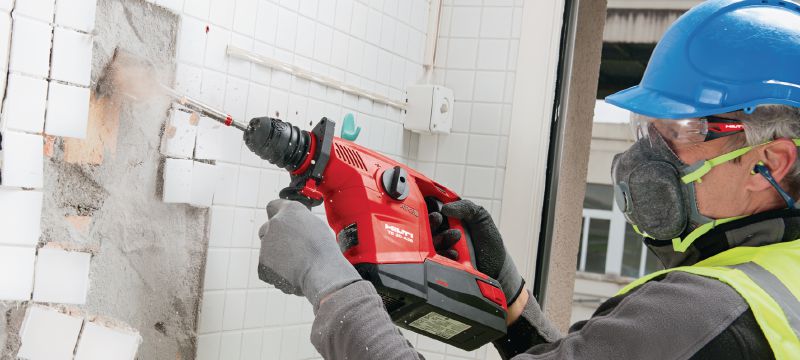

  • Corrective chiselling
  • Drilling in wood, metal and other materials using the quick-release chuck
  • Driving and removing screws using the quick-release chuck
