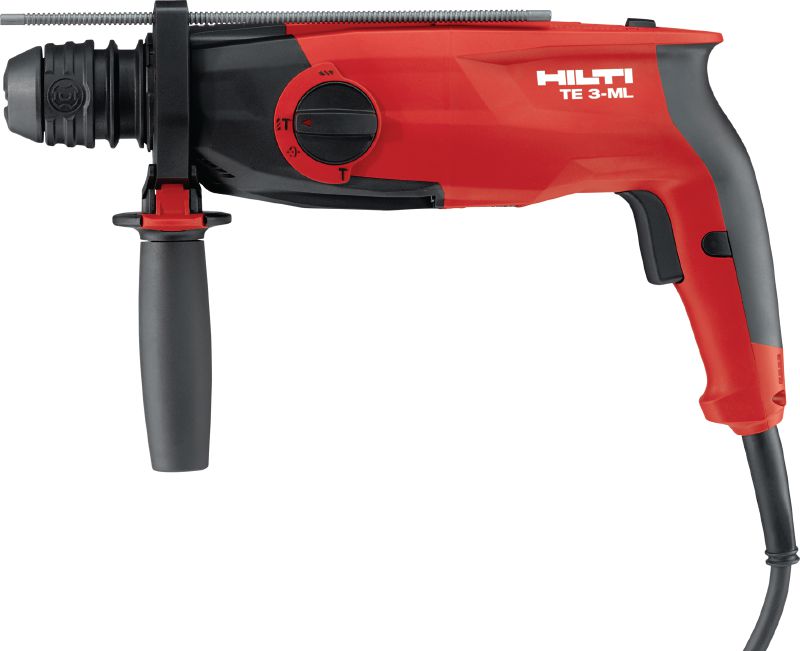

TE 3-ML Rotary hammer

L107337_ML (186262)
TE 3-CL, TE 3-ML, DCD (78813)
L080916_ML_v1_cropped (186202)
TE 3-ML (78812)
L083752_ML_v1_cropped (186203)
L107337_ML (186262)
TE 3-CL, TE 3-ML, DCD (78813)
L080916_ML_v1_cropped (186202)
TE 3-ML (78812)
L083752_ML_v1_cropped (186203)

Powerful pistol-grip, triple-mode, multi-purpose SDS Plus (TE-C) rotary hammer – with chipping function and easily changeable brushes

  • Weight according to EPTA-Procedure 01/2003 without battery: 3.1 kg
  • Optimum hammer drilling range: 6 - 16 mm
  • Single impact energy: 2.1 J

Customers also searched for Hammer drill, Hammer drill, SDS Plus or SDS Plus.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From OMR 200.357

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
3.1 kg
Optimum hammer drilling range
6 - 16 mm
Single impact energy
2.1 J
Working mode
Chiselling, Drilling, Hammer drilling, Chisel setting
Hammer drilling diameter range
5 - 28 mm
Hammer drilling RPM
1070 rpm
Full hammering frequency
4860 impacts/minute
Functionality
Chipping, 2nd gear for drilling in metal, Removable chuck, Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
15.6 m/s² 1
Triaxial vibration for chiselling in concrete
12.2 m/s² 2
A-weighted emission sound pressure level
93 dB (A) 3
Dimensions (LxWxH)
377 x 88 x 204 mm
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see Operating Instruction for more details)

Features & Applications

Features

  • Triple-mode SDS Plus (TE-C) rotary hammer – for hammer drilling, rotary-only drilling and chiselling
  • Sturdy motor provides high performance and overload protection
  • Innovative, long-lasting hammering mechanism
  • Includes Hilti Cooltec with active cooling to extend tool lifetime

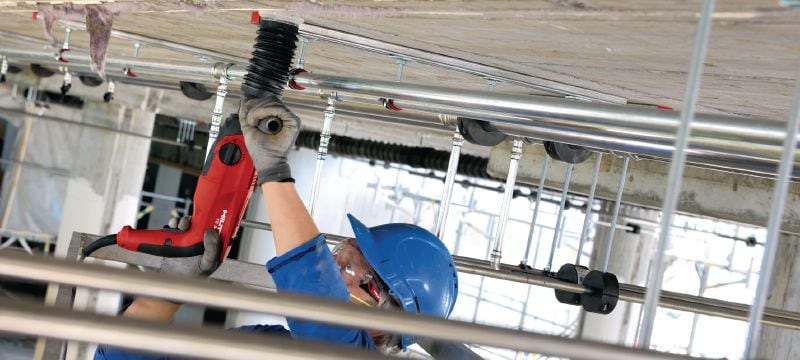

  • Optional, easily attachable dust collector helps protect the operator from falling dust and fragments when drilling overhead

Applications

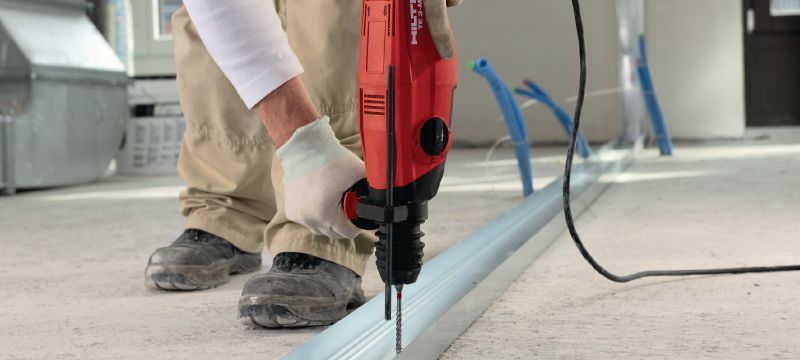

  • Drilling and hammer drilling in concrete and masonry

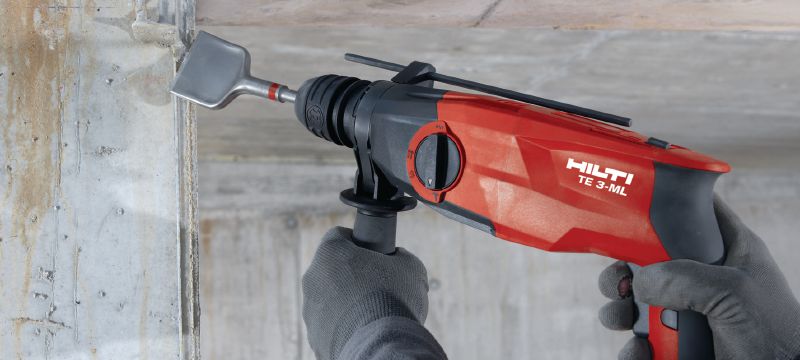

  • Corrective chiselling and light channel chasing in concrete and masonry

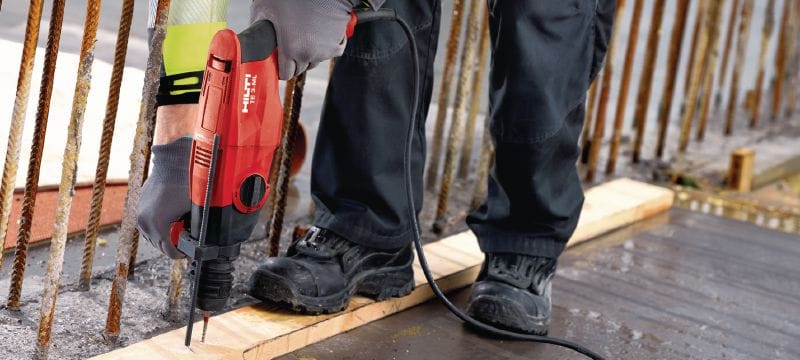

  • Drilling in wood and steel with the optional quick-release chuck
  • Cutting socket recesses in masonry
  • Driving screws using optional bit holders

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
More information about Tool Services
Lifetime_2_en_us_line.eps

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 3-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
