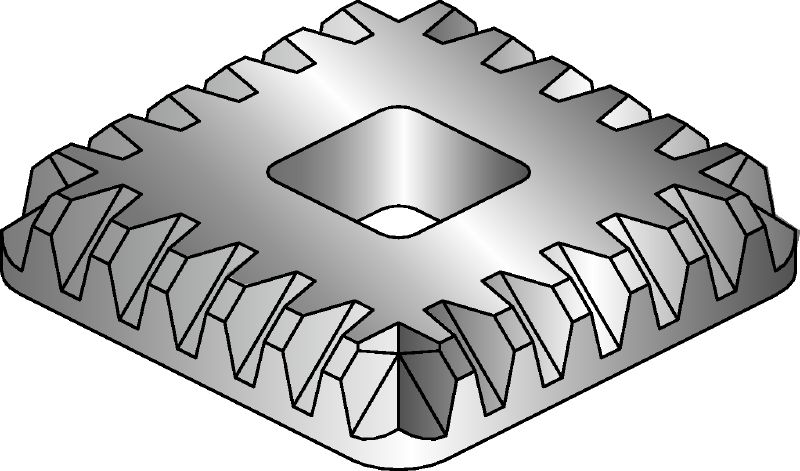

MIA-TP Tooth plate
hot-dip galvanised (HDG) tooth plate used with the MIA-OH bolt for fastening of MI and MIQ connectors
- Material composition: S235 - EN 10025-2
- Surface finish: HDG: 45 µm - DIN EN ISO 1461
- Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
Choose options
Modular Girder Type
- 90, 120
Pack size
- 20 pc
Quantity
Packs
Total Pieces
1
Discounted net
From OMR 2.344
Technical Data
Material composition
S235 - EN 10025-2
Surface finish
HDG: 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Documents
Features & Applications
Features
- Toothed plate for easy, single-handed adjustment of connections
- Enables secure incrementable height adjustment
Applications
- Fastening connectors that are part of the MI and MIQ modular support systems
For approval or certificate information, please see individual items.
