MIC-U-MA Connector

IS_HNA_317_o.eps
LCG001009.tiff
IS_ME_317.eps
IS_HNA_317.eps

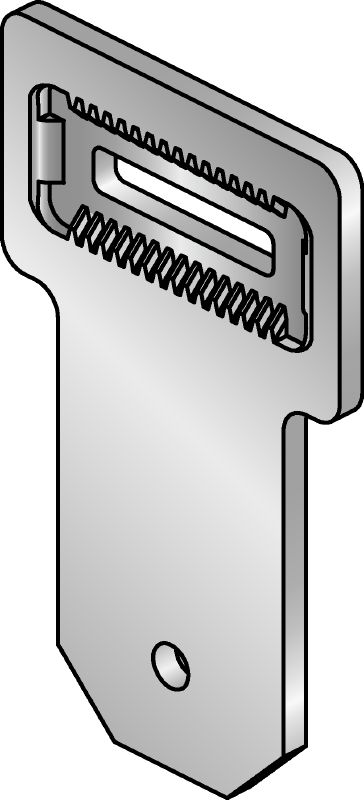

Hot-dip galvanised (HDG) multi-angle connector used with MIC-MAH connectors for fastening MI girders to one another at an angle

  • Surface finish: HDG: connector 55 µm - DIN EN ISO 1461; toothed plate, bolt, nut 45 µm - DIN EN ISO 1461
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
  • Tightening torque: 84 Nm

Customers also searched for 3d channel systems, connecting girders, cable tray installations, piping installations or metal connectors.

Choose options

Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Surface finish
HDG: connector 55 µm - DIN EN ISO 1461; toothed plate, bolt, nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
84 Nm
Wrench size
19 mm

Documents

pdf Corrosion handbook, English [ 9.4 MB ]

Features & Applications

Features

  • Connector comes with self-locking nuts to help protect against vibration
  • Can be finely adjusted by up to 5 mm
  • Keyed hold for optimum transmission of forces and moments

Applications

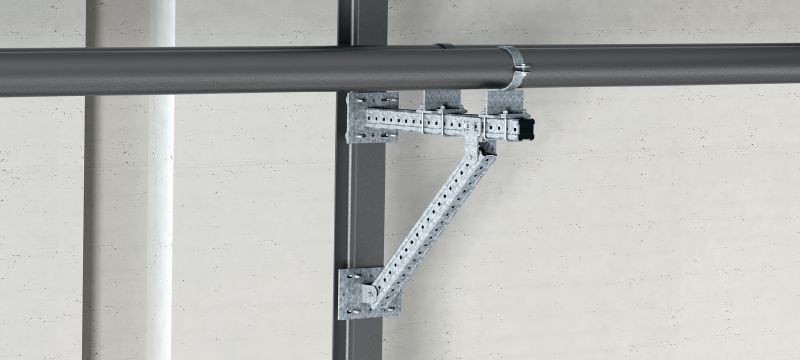

  • For supports or corner struts at angles between 0° and 180°

For approval or certificate information, please see individual items.
