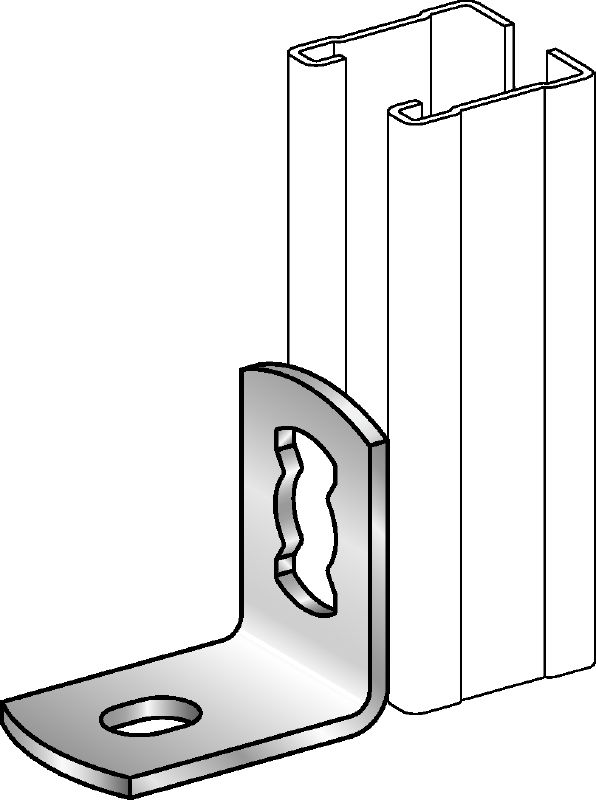

MQP-1 Channel foot

Rail support MQP-1/1 #369646

Galvanised channel foot for fastening channels to concrete in light/medium-duty applications

Material composition: DD11 MOD - HN 547, S235JR - DIN EN 10025
Surface finish: Indoor Coated - Electro galvanised
Material thickness: 4 mm

Customers also searched for rail supports, connecting channel to concrete floors, glavanised connectors, connectors or metal connectors.

Choose options

Pack size

20 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

OMR 2.092

OMR 2.090 / 1 each

Technical Data

Material composition

DD11 MOD - HN 547, S235JR - DIN EN 10025

Surface finish

Indoor Coated - Electro galvanised

Material thickness

4 mm

Environmental conditions

Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Weight

118 g

Documents

Features & Applications

Features

Flexibility – complete many different applications using few parts
Compatible with MQN-C push button channel connectors – for much faster, adaptable assembly

Applications

Connecting strut channels to various base materials
