MQN-CP

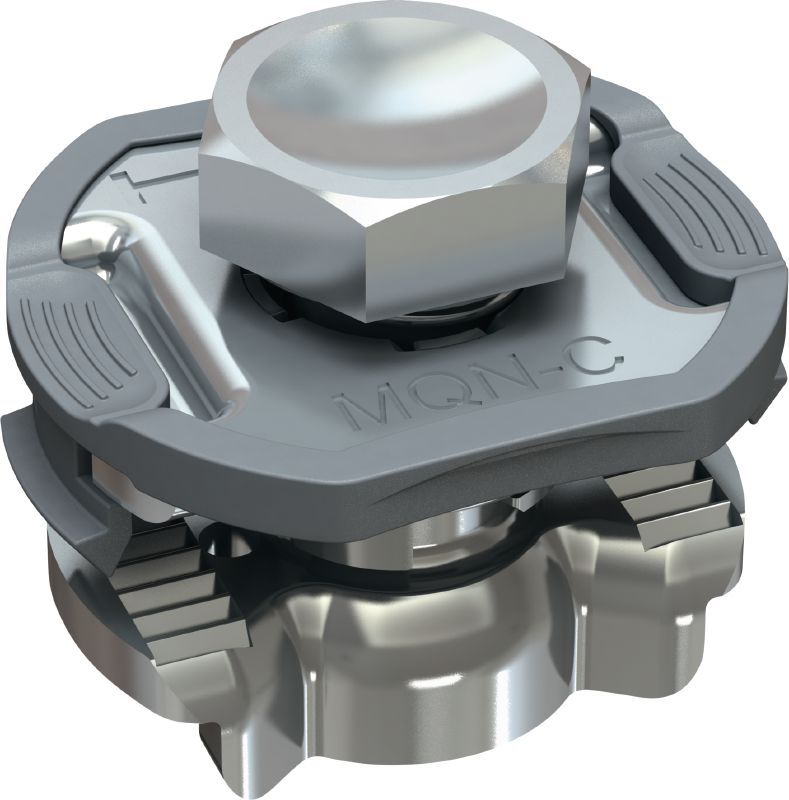

Channel connector MQN-CP #2184850

Configurator
Technical Data
Features & Applications
Related Products
LCG001766_v3 (187392)
L_CG001825_v3_cropped (188125)
L_CG001826_v3_cropped (188127)
L_CG001826_v4_cropped (188129)
L108510_cropped (187527)

Ultimate galvanised channel connector with pre-fastening function on all butterfly openings – for higher productivity

  • Product class: Ultimate
  • Material composition: Plate: S380MC, Nut: S355MC - DIN EN 10149-2, Bolt: grade 8.8 - DIN EN ISO 898, Plastic: PA 6.6, Plastic: PA6-I GF15
  • Surface finish: Indoor Coated - Electro galvanised
ultimate

Choose options

Pack size
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
50
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
OMR 2.044
OMR 2.040
/
1 each

Technical Data

Product class
Ultimate
Material composition
Plate: S380MC, Nut: S355MC - DIN EN 10149-2, Bolt: grade 8.8 - DIN EN ISO 898, Plastic: PA 6.6, Plastic: PA6-I GF15
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
69 g

Features & Applications

Features

  • Pre-fastening of element in butterfly opening
  • Universal – one connection element for all MQ strut channels
  • Provides a more secure hold once pressed in, turned and tightened
  • Simple removal
  • Maximum flexibility

Applications

  • Connecting angles to strut channels

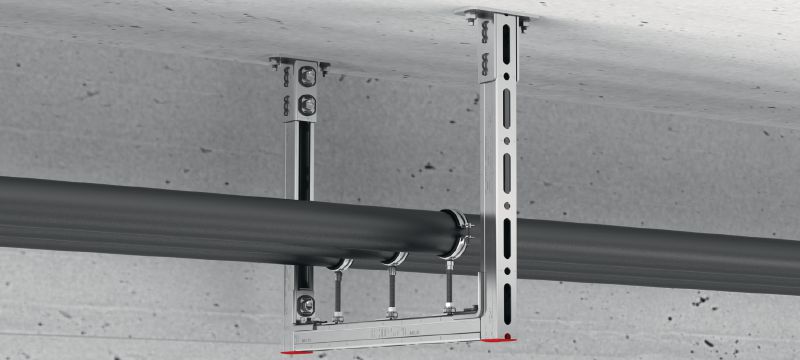

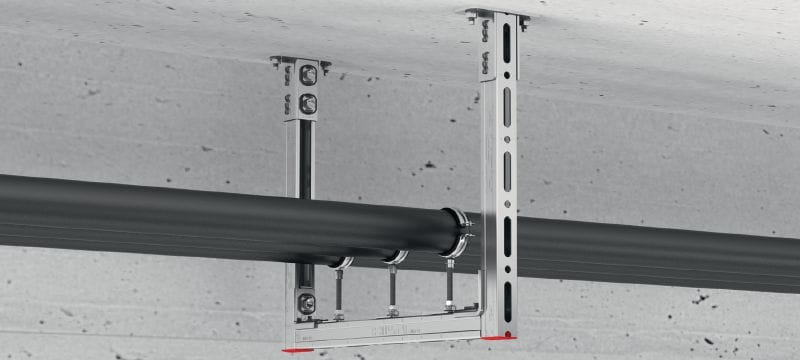

  • Connection element for U-frame/crossbeam structures
  • Connecting strut channels and structural elements

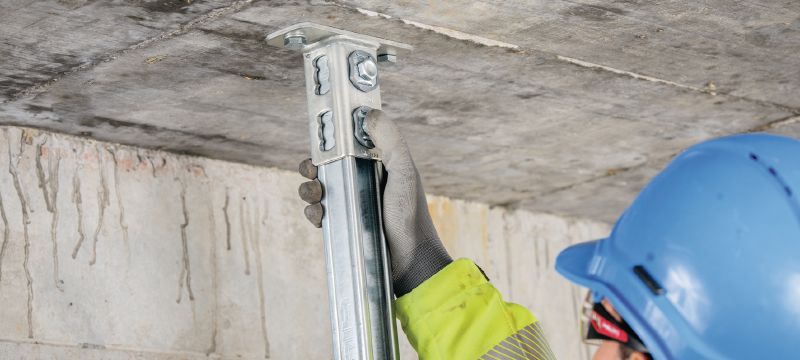

  • Connecting MQ brackets, angles and bases to MQ profiles
  • Connecting MQ angles and other elements to MQ strut channels in environments up to 50 °C
