MGM 2-F

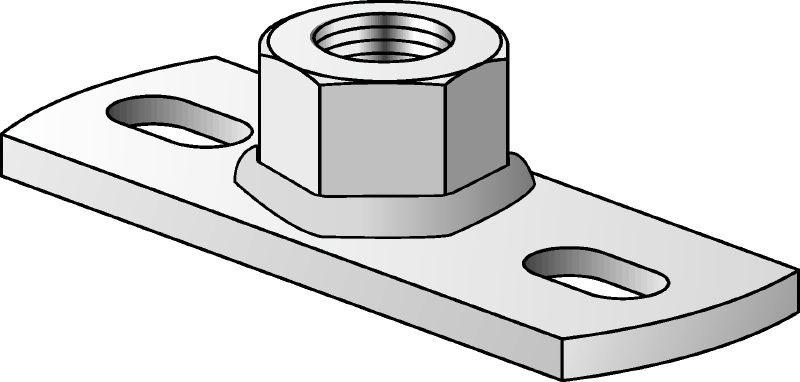

Fixed point baseplate MGM2 M16-F #202839
Premium hot-dip galvanised (HDG) 2-hole base plate for light-duty fixed point applications (metric)
- Thread connection - M: M16
- Height - H: 20 mm
- Maximum tensile load - F: 6.5 kN
Choose options
Thread connection - M
- M16
Height - H
- 20 mm
Maximum tensile load - F
- 6.5 kN
Pack size
- 10 pc
Quantity
Packs
Total Pieces
10
Discounted net
OMR 4.717
OMR 4.720 / 1 each
Technical Data
Thread connection - M
M16
Height - H
20 mm
Maximum tensile load - F
6.5 kN
Material composition
DD11 - DIN EN 10111
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Number of holes
2
Weight
0.17 kg
Features & Applications
Features
- Solid base plate for high load transfer
- Increased load capacity due to all-around welded connection head
- Load classes and capacities matched to Hilti pipe clamps
Applications
- Installing light fixed points for pipes subject to thermal elongation and contraction
- Heavy-duty base plate for single point fastening of pipes
