MFP-GP-F

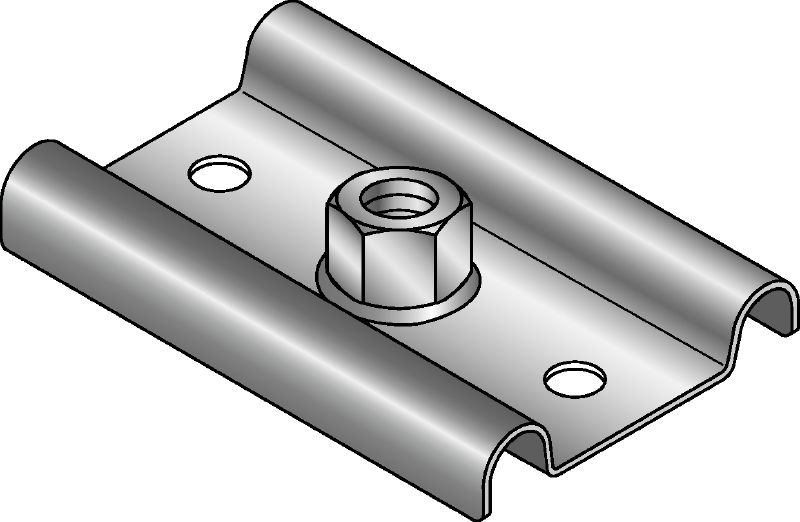

Fixed point baseplate MFP-GP 16-F #304279
Premium hot-dip galvanised (HDG) base plate for light-duty fixed point applications (metric)
- Thread connection - M: M16
- Height - H: 16 mm
- Maximum tensile load - F: 12.5 kN
Choose options
Thread connection - M
- M16
Height - H
- 16 mm
Maximum tensile load - F
- 12.5 kN
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
OMR 13.447
OMR 13.450 / 1 each
Technical Data
Thread connection - M
M16
Height - H
16 mm
Maximum tensile load - F
12.5 kN
Material composition
S235JR - DIN EN 10025
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Number of holes
2
Weight
0.68 kg
Features & Applications
Features
- Specially designed base plate shape to transfer high loads
- Increased load capacity due to all-around welded connection head
- Load classes and capacities matched to MFP-L pipe clamps
Applications
- Installing light fixed points for pipes subject to thermal elongation and contraction
- Heavy-duty base plate for single point fastening of pipes
