MQ3D-F

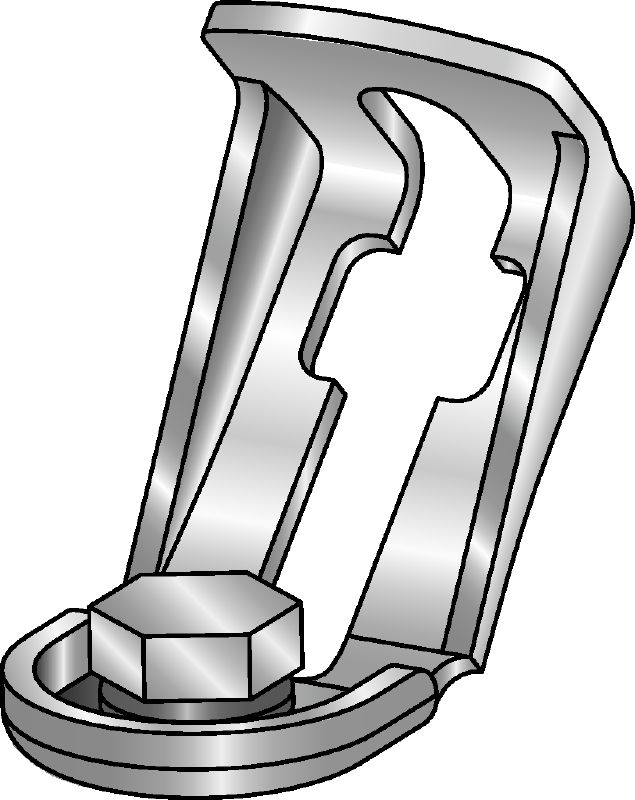

Bracing component MQ3D-A-F #304212
Hot-dip galvanised (HDG) elements for assembling 3D structures on site
- Wrench size: 17 mm
- Tightening torque: 40 Nm
- Material composition: DD11 MOD - HN 547, S235JR - DIN EN 10025, Bolt: M10x10-10.9-HDG - DIN 933
Choose options
Angle
- 45 °
Thread connection - M
- M10
Pack size
- 20 pc
Quantity
Packs
Total Pieces
20
Discounted net
OMR 7.902
OMR 7.900 / 1 each
Technical Data
Wrench size
17 mm
Tightening torque
40 Nm
Material composition
DD11 MOD - HN 547, S235JR - DIN EN 10025, Bolt: M10x10-10.9-HDG - DIN 933
Surface finish
Outdoor Coated - HDG
Material thickness
3 mm
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Angle
45 °
Weight
98 g
Features & Applications
Features
- Universal – complete many different applications using few parts
- Designed for quicker, easier assembly and installation
- 45-degree angle and bracing with predetermined bending point, +/- 15 degree adjustment
- For installation of angles or connectors on site
- Angle brackets or connectors can be installed on site
Applications

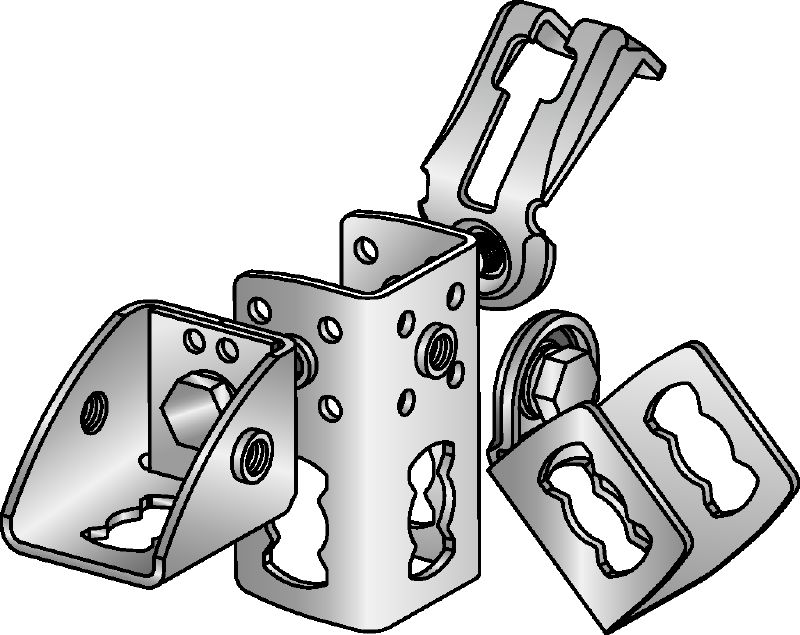

- Assembling 3D structures on site
- Bracing and stiffening complex strut channel assemblies
- Installing three-dimensional support frames
Related Products

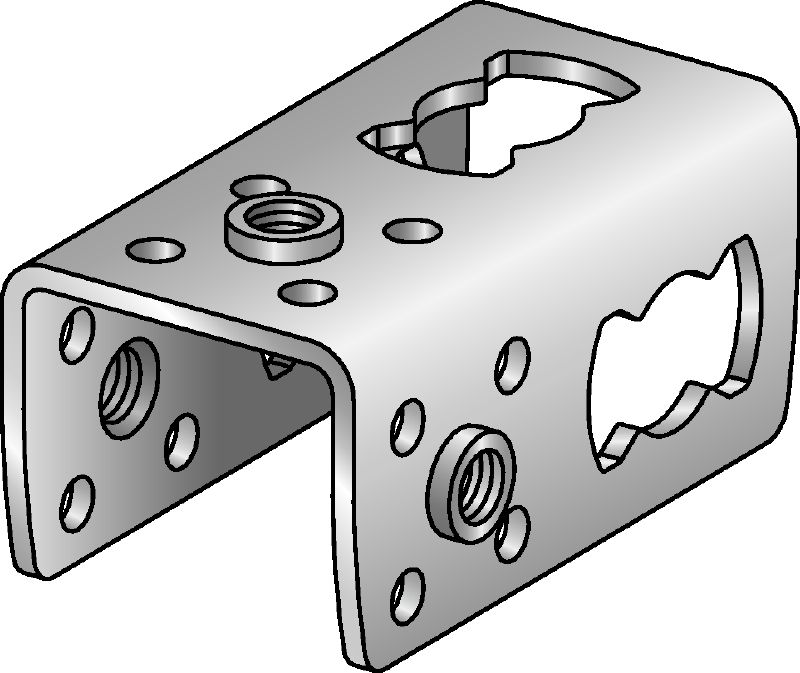

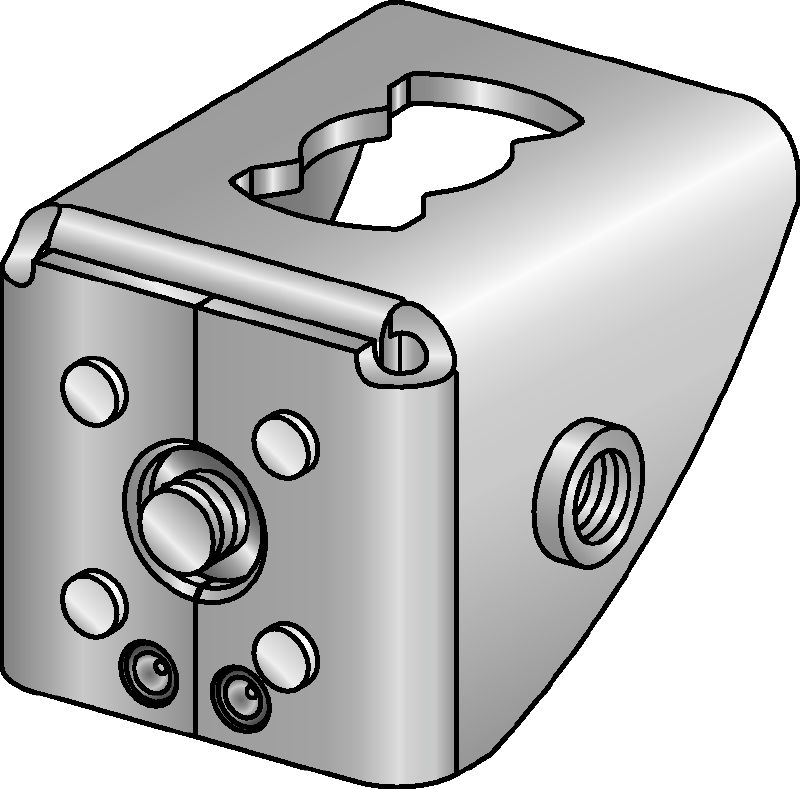

Hot-dip galvanised (HDG plus) channel connector for joining any elements with a butterfly opening
