MQN-HDG plus

Channel connector MQN-HDG plus #387779

Configurator
Technical Data
Documents
Features & Applications
Related Products

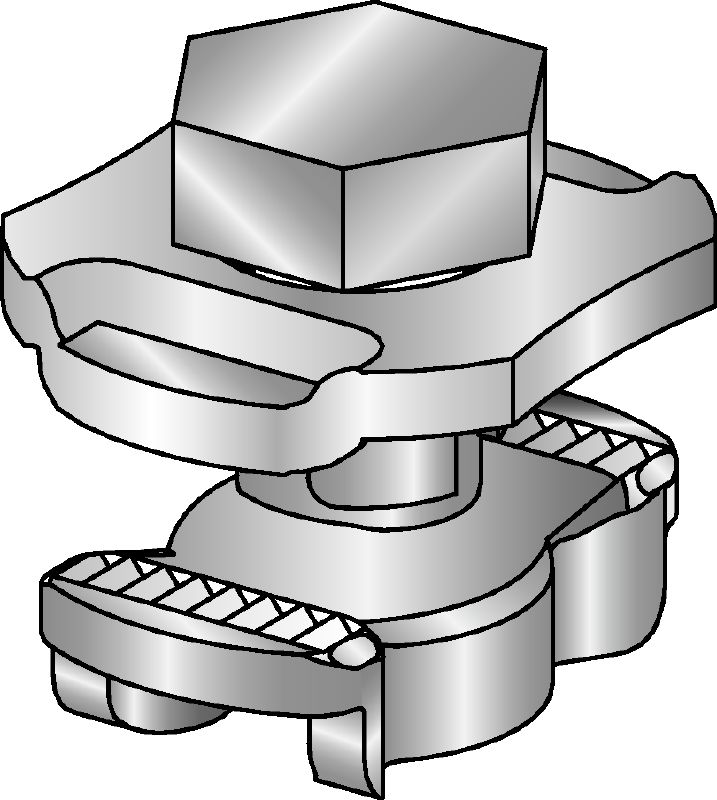

IS_MQN_o.eps

Hot-dip galvanised (HDG) channel connector for joining any elements with a butterfly opening

  • Product class: Premium
  • Tightening torque: 40 Nm
  • Material composition: Bolt: M10 grade 8.8 - DIN ISO 898, S355 MC - DIN EN 10149-2, Plate: DD11 - DIN EN 10111
premium

Customers also searched for channel connector, HDG connectors, connectors, metal connectors or installation channel.

Choose options

Pack size
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
50
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
OMR 2.409
OMR 2.410 / 1 each

Technical Data

Product class
Premium
Tightening torque
40 Nm
Material composition
Bolt: M10 grade 8.8 - DIN ISO 898, S355 MC - DIN EN 10149-2, Plate: DD11 - DIN EN 10111
Surface finish
Outdoor Coated - HDG Plus
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Wrench size
17 mm
Weight
67 g

Documents

pdf Corrosion handbook, English [ 9.6 MB ]

Features & Applications

Features

  • Designed to be simple, compact and time-saving
  • Universal – one connection element for all MQ strut channels
  • Simple removal
  • Holds securely once it has been pressed, turned and tightened correctly
  • One-part fastener replaces a spring nut, bolt and washer for quick installation

Applications

  • Connecting angles to strut channels
  • Connection element for U-frame/crossbeam structures
  • Connecting strut channels and structural elements
  • Designed for long lifetime in temperate outdoor climates
  • Recommended for use in moderately corrosive outdoor and indoor environments
