MC-AH-90 OC-A
Angle MC-AH-90 OC-A #2063733

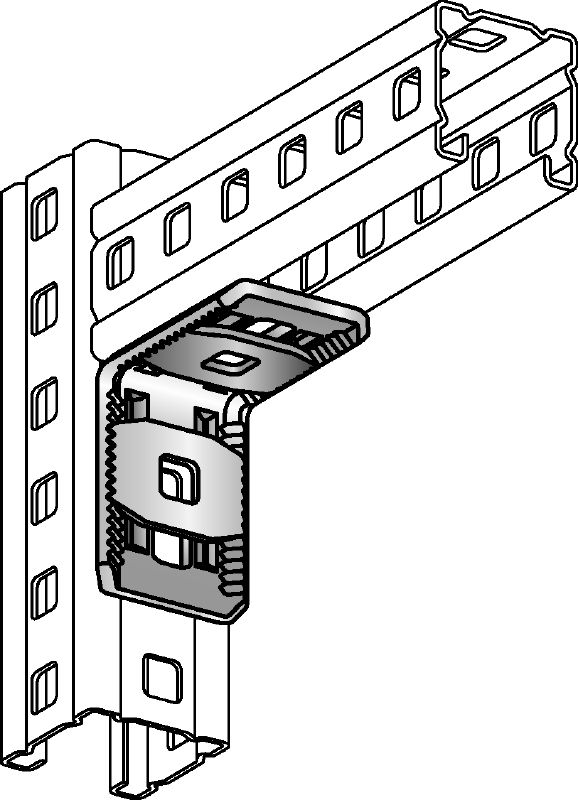

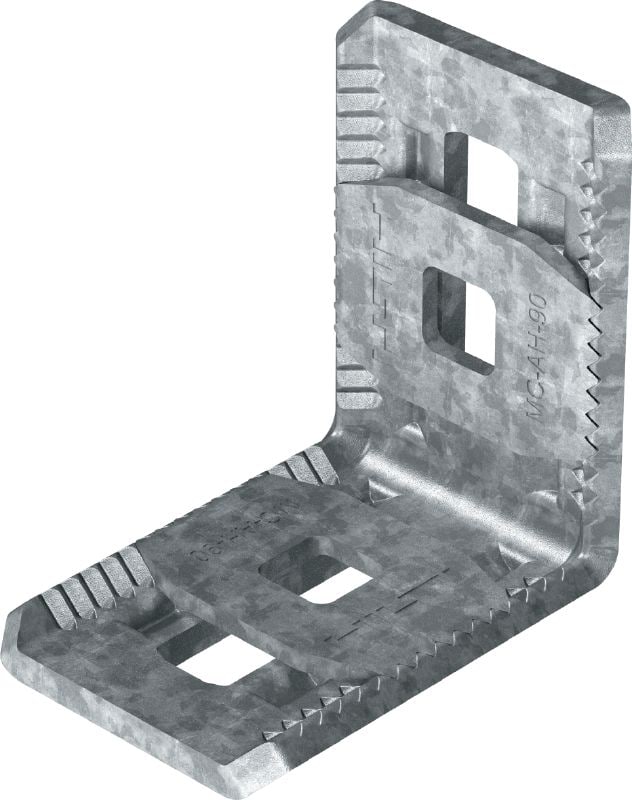

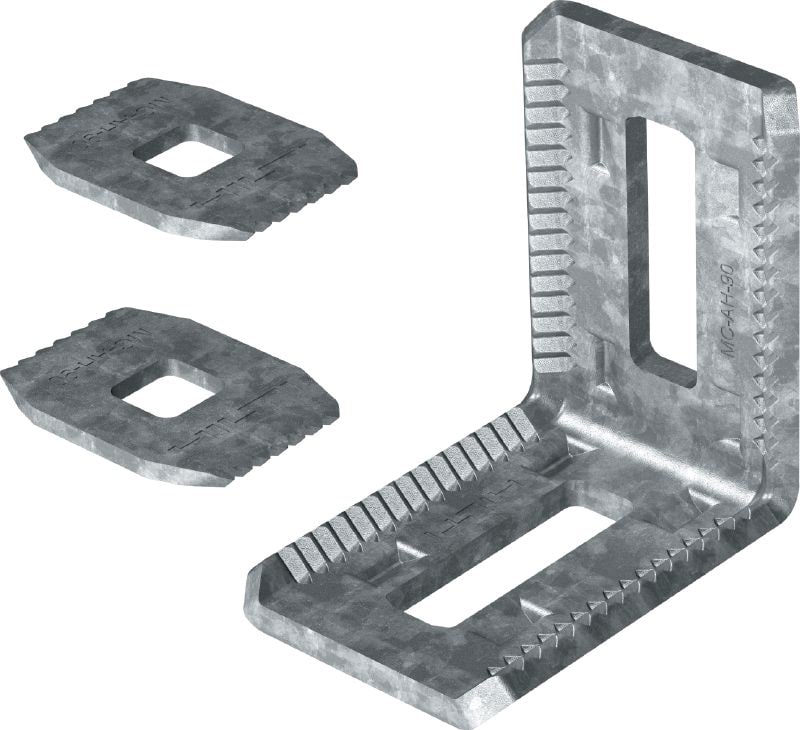

Galvanised, adjustable angle connector for the 90-degree attachment of MC-3D channels to one another outdoors
- Material composition: Structural steel with minimum yield strength of 235 N/mm2
- Surface finish: Hot-dip galvanized, 56 µm - ASTM A153
- Material thickness: 4 mm
Customers also searched for 90 degree connector, HDG metal connectors, hot dipped galvanised connectors, metal connectors or installation channel.
Choose options
Angle
- 90 °
Pack size
- 20 pc
Quantity
Packs
Total Pieces
20
Discounted net
OMR 1.966
OMR 1.970 / 1 each
Technical Data
Material composition
Structural steel with minimum yield strength of 235 N/mm2
Surface finish
Hot-dip galvanized, 56 µm - ASTM A153
Material thickness
4 mm
Angle
90 °
Weight
168 g
Features & Applications
Features
- High application flexibility
- Easy height adjustment along full channel length and on all channel faces
- High shear load capacity
Applications
- Connecting any two MC channels at 90 degrees
- Assembly of two and three-dimensional modular system structures
