MC-3D-41 OC-A

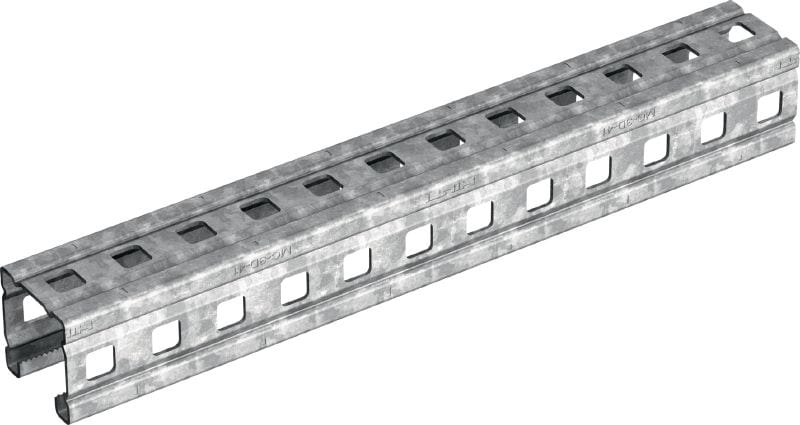

Install. channel MC-3D-41 OC-A 6m #2063296
Hot-dip galvanised (HDG) installation channel for 2D and 3D outdoor applications
- Height: 41 mm
- Material thickness: 1.6 mm
- Material composition: Structural steel with minimum yield strength of 275 N/mm2
Customers also searched for cable tray supports, floor supports, electrical supports, 3d channel system or installation channel.
Choose options
Length
- 6 m
Pack size
- 6 m
Quantity
Packs
Total m
6
Discounted net
OMR 7.165
OMR 7.170 / 1 m
Technical Data
Height
41 mm
Material thickness
1.6 mm
Material composition
Structural steel with minimum yield strength of 275 N/mm2
Surface finish
Outdoor Coated - HDG
Weight
10560 g
Features & Applications
Features
- Can be connected on any channel face
- High flexibility – supports multiple fastening types and directions
- Easier adjustment due to serrated open face
- Dimension marks to simplify cutting and installation
Applications

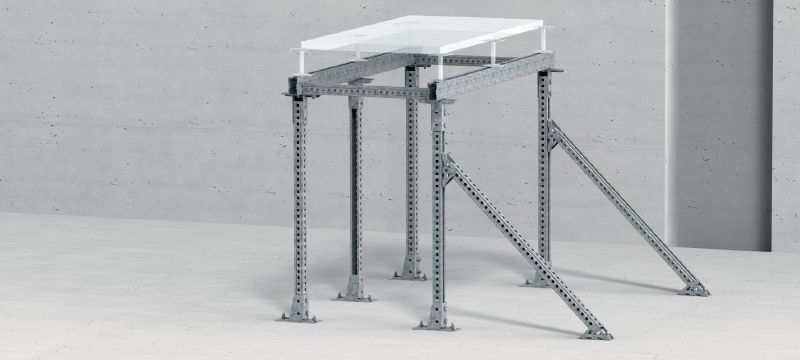

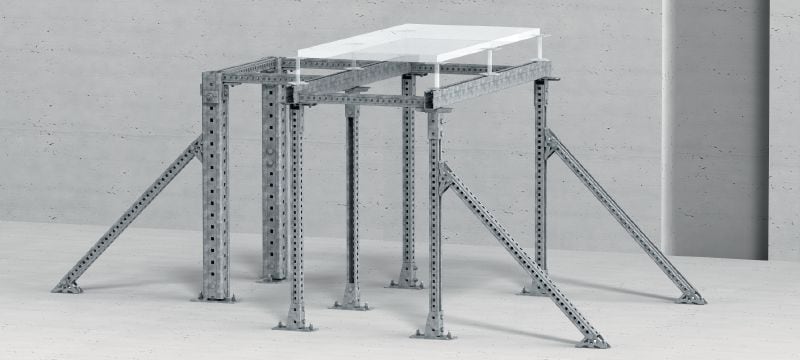

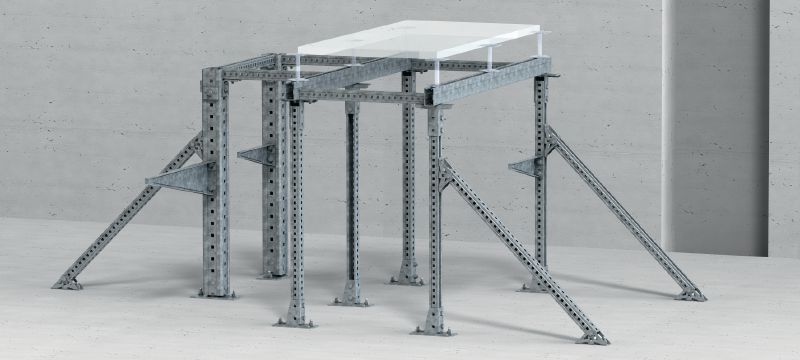

- Cable tray support structures
- Instrumentation support structures
- Integrated floor support structures
- Secondary steel support structures
