MQW-3

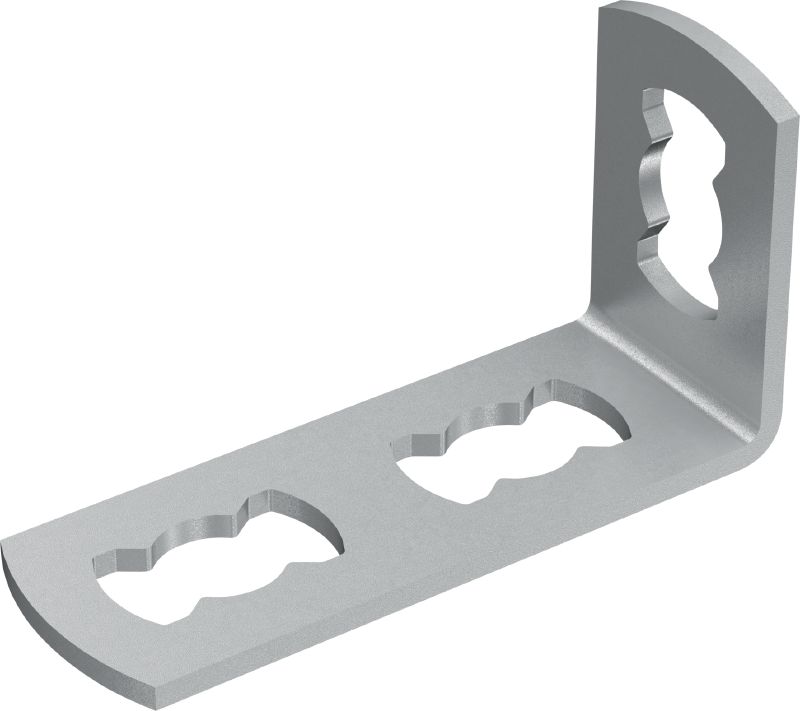

3-hole angle MQW-3 #369656

Configurator
Technical Data
Documents
Features & Applications
Related Products
CG002880_v1 (203723)
MQP-2

Galvanised 90-degree angle for connecting multiple MQ strut channels

  • Material composition: S235JR - DIN EN 10025
  • Surface finish: Indoor Coated - Electro galvanised
  • Number of holes: 3

Choose options

Angle
  • 90 °
Number of holes
  • 3
Pack size
  • 20 pc
 Product options
Quantity
Packs
Total Pieces
20
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
OMR 2.649
OMR 2.650
/
1 each

Technical Data

Details
Technical illustrations
Material composition
S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Number of holes
3
Material thickness
4 mm
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Angle
90 °
Weight
152 g

Documents

pdf Corrosion handbook, English [ 9.6 MB ]

Features & Applications

Features

  • Compatible with push button channel connectors – for much faster, adaptable assembly
  • Adjustable – easily fit and repositioned along strut channels

Applications

  • Assembling frames or connections with 45/135-degree angles
  • Compatible with multiple MQ strut channels
  • Recommended for use in dry, interior environments
