M12-F hexagon bolts

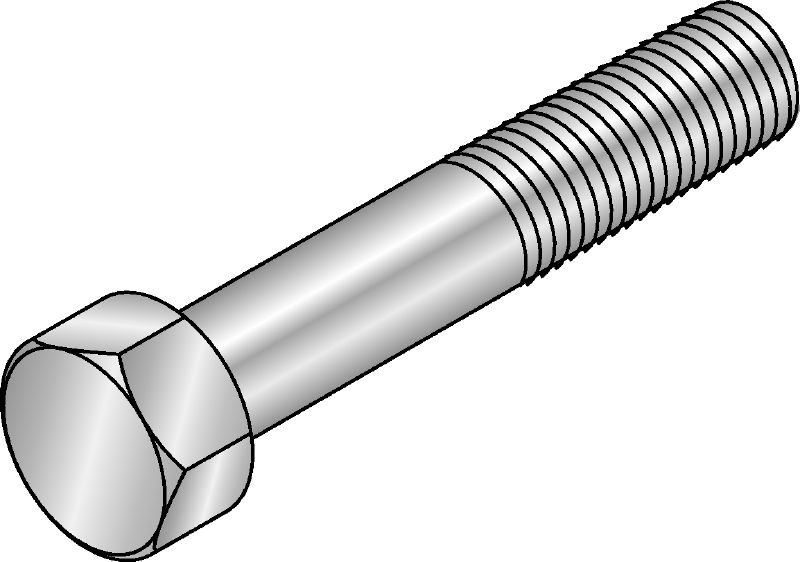

Hexagon bolt M12x130-F/8.8 #283596
Hot-dip galvanised (HDG) hexagon bolt used in various applications
- Thread - M: M12
- Material composition: Steel grade 8.8
- Surface finish: Hot-dip galvanized, 45 µm
Choose options
Thread - M
- M12
Thread length - L
- 36 mm
Pack size
- 40 pc
Quantity
Packs
Total Pieces
40
Discounted net
OMR 2.228
OMR 2.230 / 1 each
Technical Data
Thread - M
M12
Material composition
Steel grade 8.8
Surface finish
Hot-dip galvanized, 45 µm
Wrench size - W
19 mm
Tightening torque
84 Nm
Thread length - L
36 mm
Height - H
8 mm
Weight
124 g
A
130 mm
Base material type
n/a
Load range
Heavy duty
Features & Applications
Features
- Available in various lengths
- Easy to install
Applications
- Various connections with Hilti Modular Support Systems
- Recommended for use in moderately corrosive outdoor and indoor environments
