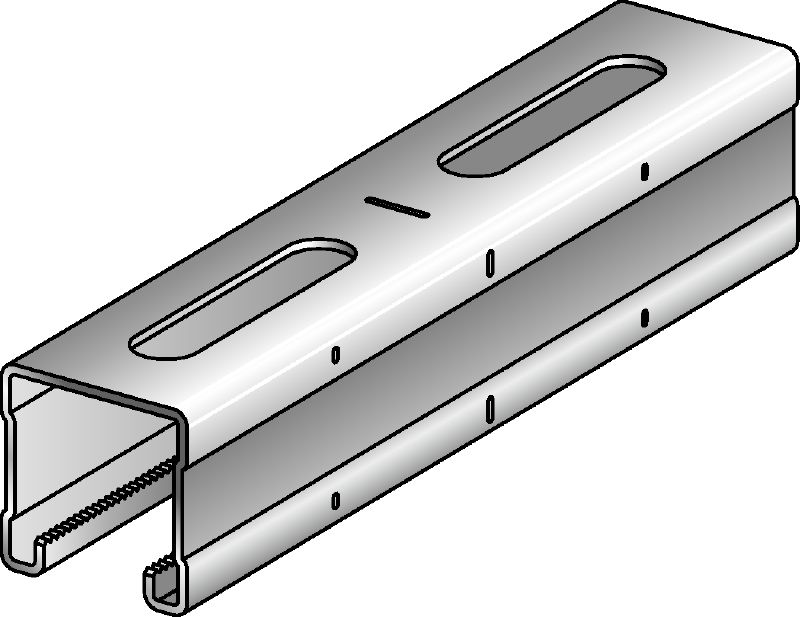

MQ-41-HDG plus C-Channel profile

Install. channel MQ-41-HDG plus 6m #304101

Configurator
Technical Data
Documents
Features & Applications
Related Products
MQ-41

hot-dip galvanised (HDG plus) C-Channel profile for medium-duty applications

  • Height: 41.3 mm
  • Material thickness: 2 mm
  • Material composition: S235JR - DIN EN 10025

Customers also searched for pipe supports, cable tray supports, ventilation duct supports, hot dipped galvanised supports or installation channel.

Choose options

Length
  • 6 m
Pack size
  • 6 m
 Product options
Quantity
Packs
Total m
6
You can not see your company prices

Please Log in or register to see your company prices.

Price displayed for minimum order quantity:

0.16666666666666666 Packs (Total pieces 1)

Discounted net
OMR 20.576
OMR 20.580 / 1 m

Technical Data

Height
41.3 mm
Material thickness
2 mm
Material composition
S235JR - DIN EN 10025
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Weight
12780 g

Documents

pdf Load data HDG plus channel, English, German [ 50 KB ]

Features & Applications

Features

  • C-profile with serrated edges – for higher pull-out and shear capacity
  • Optimised hole pattern – for more flexible attachment options
  • Pre-marked dimensions – for rapid installation, assembly and cutting
  • Versatile and flexible due to modular channel system
  • Sound insulation elements available for all MQ installation channels

Applications

  • Recommended for use in moist interiors, on exteriors exposed to slight or no weathering and on back-ventilated facades
  • Modular support systems for piping
  • Modular support systems for air ducts and cable trays
  • Modular support systems for 3D structures
  • Wall-mounted installation
