MQK-21 D-F bracket

Bracket MQK-21 D/600-F #304126

Configurator
Technical Data
Features & Applications
Related Products
IS_HNA_204_o.eps

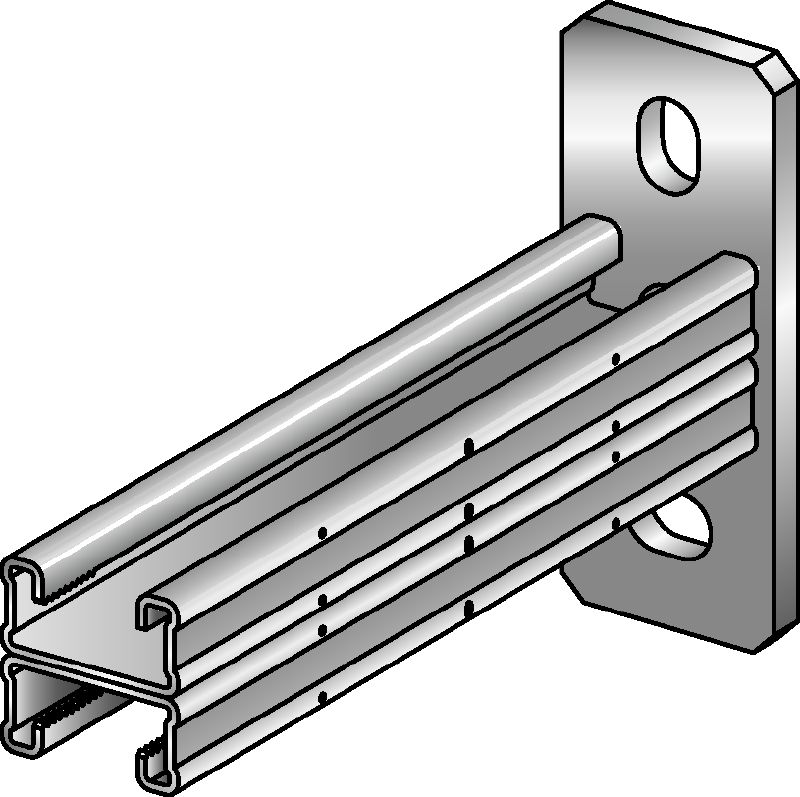

hot-dip galvanised (HDG) C-Channel double-bracket for medium-duty applications

  • Material thickness: Channel: 2 mm, Baseplate: 8 mm
  • Material composition: S235JR - DIN EN 10025
  • Surface finish: Outdoor Coated - HDG

Choose options

Profile
  • MQ-21-D-F
Length - L
  • 600 mm
Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
OMR 50.953
OMR 50.950
/
1 each

Technical Data

Material thickness
Channel: 2 mm, Baseplate: 8 mm
Material composition
S235JR - DIN EN 10025
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Profile
MQ-21-D-F
Weight
2360 g

Features & Applications

Features

  • C-profile with serrated edges – for higher pull-out and shear capacity
  • Engineered for higher shear load capacity and easier assembly
  • Rectangular base plate – strengthens the connection to the supporting material and increases rigidity
  • Pre-marked dimensions – for quicker installation, assembly and measurement
  • Double channel, unslotted

Applications

  • Stand-alone use on ceilings, walls and floors or in conjunction with strut channel systems
  • Installations in damp interiors and outdoor areas with little or no exposure to the weather
  • Installing cable trays, air ducts and pipe supports
  • Recommended for use in moderately corrosive outdoor and indoor environments
