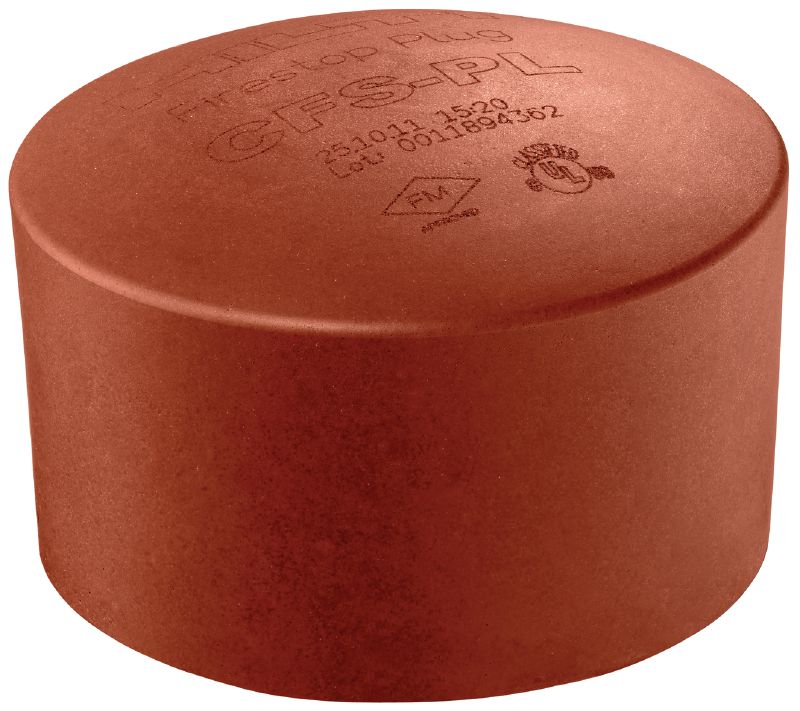

CFS-PL Firestop plug

Firestop plug
CFS-PL
CFS-PL
CFS-PL
L109422_cropped (188762)

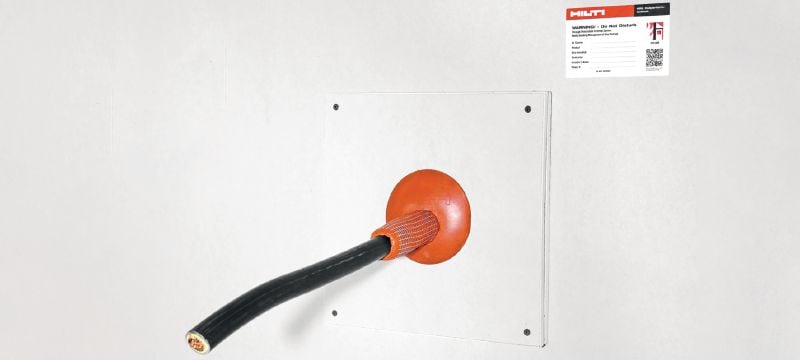

Reusable intumescent firestop solution for permanent or temporary cable openings in walls and floors

  • Base materials: Concrete, Masonry, Drywall
  • LEED VOC: 4.9 g/l
  • Application temperature range: 5 - 40 °C
ultimate

Customers also searched for Bricks Bung Wedge Spigot, Dust Fibre Free, Retrofit, Quick or Movement.

Choose options

Outside diameter
  • 107 mm
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
OMR 20.904
OMR 20.900
/
1 each

Technical Data

Base materials
Concrete, Masonry, Drywall
LEED VOC
4.9 g/l
Application temperature range
5 - 40 °C
Reaction to fire class (EN 13501-1)
E
Product class
Ultimate

Documents

pdf ETA-13/0125 for CFS-PL firestop plug for penetrations, English [ 447.8 KB ]

Features & Applications

Features

  • Simplifies maintenance and retrofitting of cables – no power tools required
  • Economical solution – sealant-free, ready-to-use and reusable
  • One-sided wall installation possible

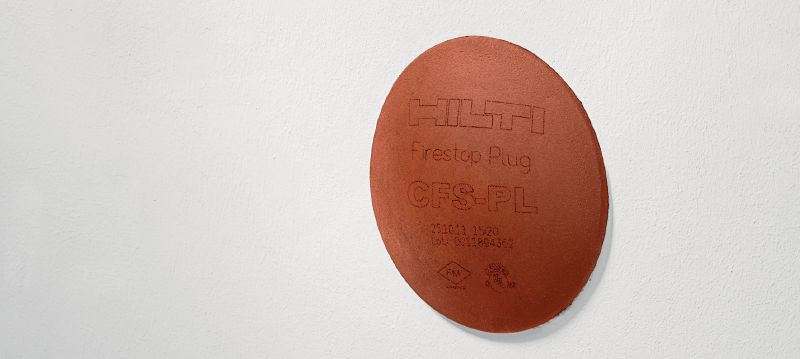

  • Ideal for the temporary closing of empty core holes
  • Acoustically tested according to ISO 140 and ASTM E90

Applications

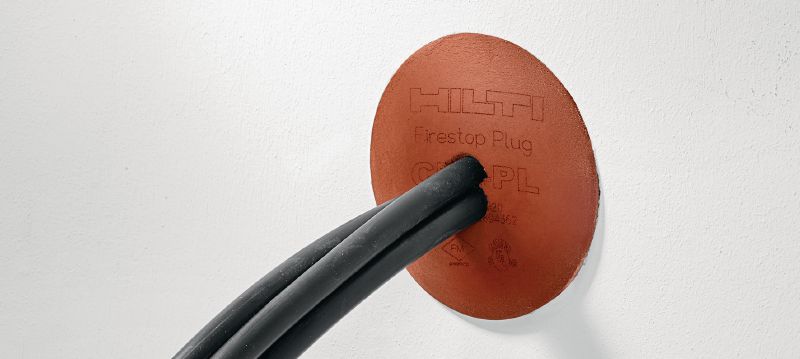

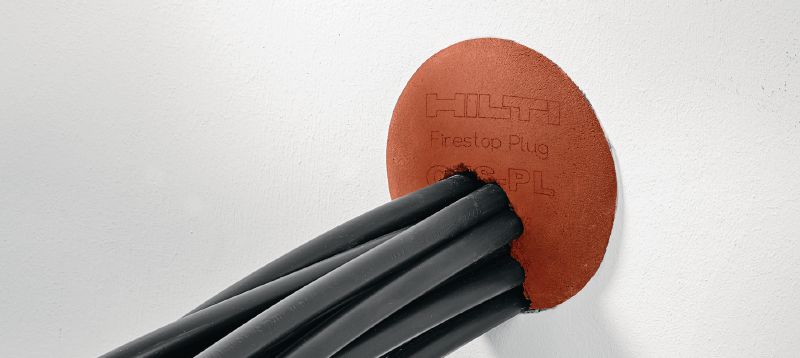

  • Temporary or permanent sealing around cables and cable bundles in wall and floor openings
  • Cables and cable bundles
  • Conduits and conduit bundles
  • Suitable for use with PVC sleeves in concrete cast-in applications
  • Rooms with virtually dust- and fibre-free requirements and areas that often change services, such as server rooms, laboratories and hospitals

For approval or certificate information, please see individual items.
