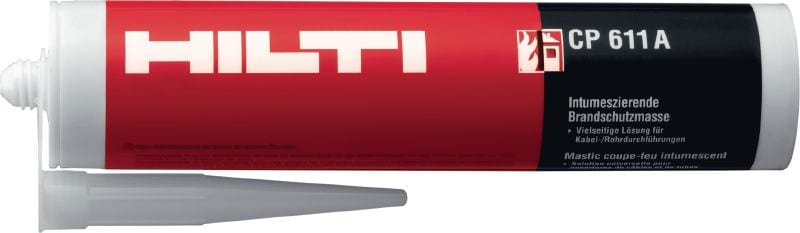

Water-based and silicone-free intumescent sealant for firestopping of electrical penetrations

  • LEED VOC: 56 g/l
  • Base materials: Concrete, Brick, Masonry, Drywall
  • Application temperature range: 40 - 5 °C
ultimate

Technical Data

LEED VOC
56 g/l
Base materials
Concrete, Brick, Masonry, Drywall
Application temperature range
40 - 5 °C
Approx. curing time
3 mm/3 days 1
Product class
Ultimate
Colour
Anthracite
  1. at 75°F/24°C, 50% relative humidity

Documents

Features & Applications

Features

  • Designed to make installation quicker and easier
  • Tested for firestopping of single cables, cable bundles and conduits
  • Smoke-tight sealant
  • Can be applied to concrete, masonry or gypsum
  • Acoustically tested according to ISO 10140

Applications

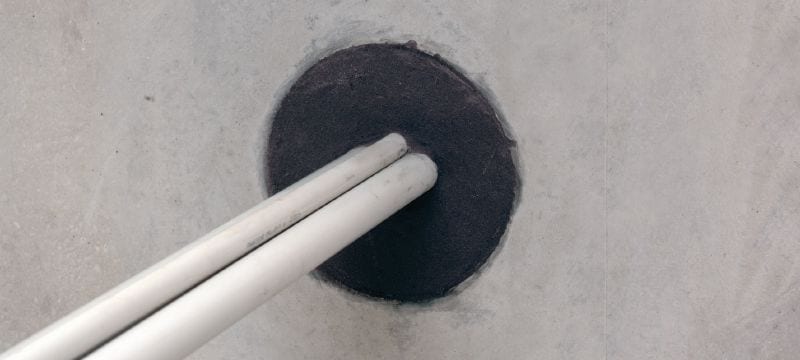

  • Single cables and cable bundles
  • Plastic pipes up to 50 mm (2") diameter without additional collar

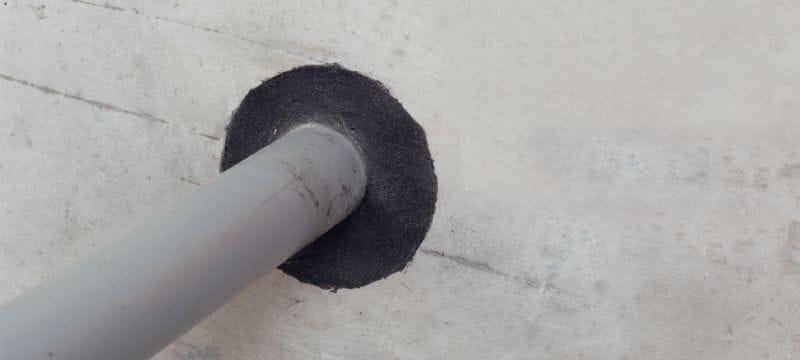

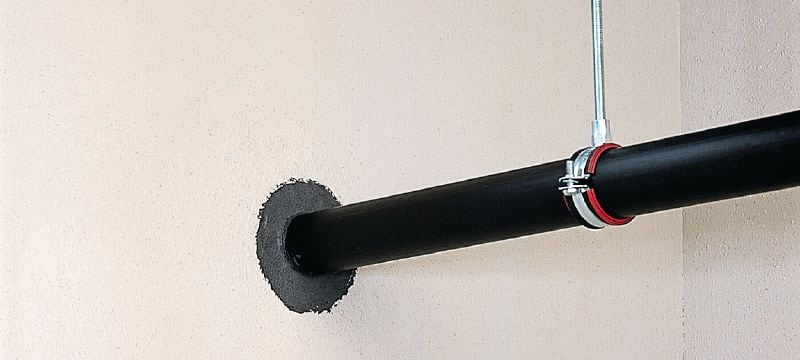

  • Metal pipes up to 160 mm (6") diameter
  • Irregular openings
  • Small openings

For approval or certificate information, please see individual items.
