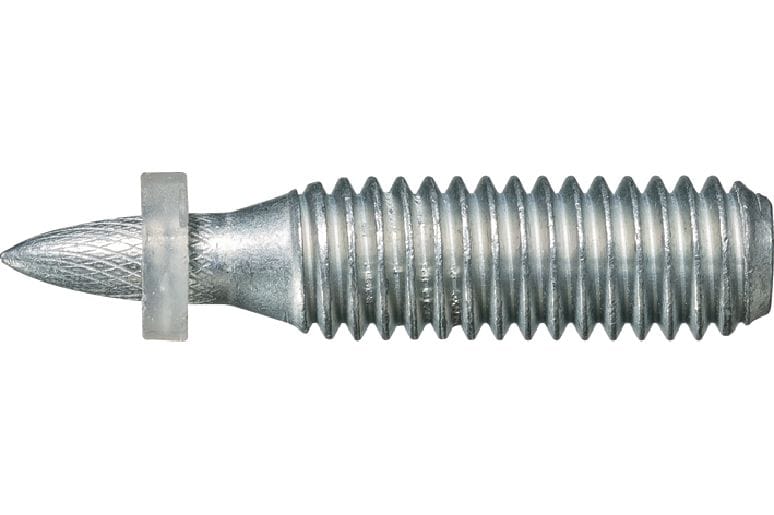

X-EW10H P10 Threaded studs
Carbon steel threaded stud for use with powder-actuated nailers on steel (10 mm washer)
- Base materials: Steel
- Minimum thickness of base material (steel): 6 mm
- Corrosion protection: Galvanised zinc coated <20 µm
premium
Choose options
Thread size
- W10
Thread length
- 30 mm
Pack size
- 100 pc
Quantity
Packs
Total Pieces
1
Discounted net
From OMR 2.256
Technical Data
Base materials
Steel
Minimum thickness of base material (steel)
6 mm
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Material
Carbon steel
Point type
Ballistic point, knurled
Approvals
ABS, FM, ICC-ES, LR, UL
For use with (tools)
DX 600N
Product class
Premium
Documents
Features & Applications
Features
- Easy-to-use, cordless system – up to 10 times quicker than drilling and with less vibration
- Thermo-pulled, entirely knurled shank – engineered for more reliable fastening in steel
Applications
- Threaded connections (e.g. for channels, pipe rings) on steel
- Threaded connections (e.g. for brackets, electrical boxes) on steel
- Threaded connections (e.g. for miscellaneous attachments) on steel
For approval or certificate information, please see individual items.
