X-BT M8 Threaded studs

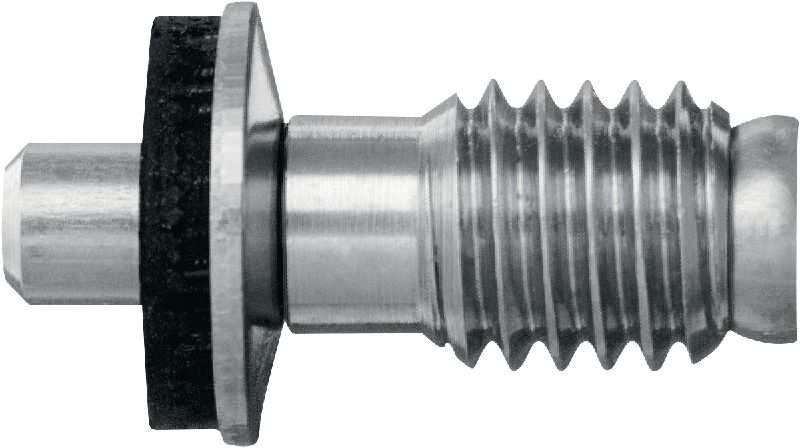

X-BT M8-15-6 SN12-R Stainless steel threaded stud adapted

Threaded stud for grating and multi-purpose fastenings on steel in highly corrosive environments

Base materials: Steel, Stainless steel, Cast iron
Minimum thickness of base material (steel): 8 mm
Corrosion protection: Stainless steel A4(316) or equivalent

ultimate

Customers also searched for threaded studs, stainless steel threaded studs, fastening in corrosive environment, industrial fastening or fastening gratng.

Technical Data

Base materials

Steel, Stainless steel, Cast iron

Minimum thickness of base material (steel)

8 mm

Corrosion protection

Stainless steel A4(316) or equivalent

Environmental conditions

Outdoor, areas with heavy industrial pollution, Coastal areas, Outdoor with moderate concentration of pollution, Outdoor with low pollution, Indoor with temporary condensation, Dry indoor, Outdoor temporary applications

Material

Duplex stainless steel (1.4462)

Thread diameter

8 mm

Length

21 mm

Point type

Blunt tip

Approvals

ABS, DNV GL, ICC-ES, LR

Product class

Ultimate

Documents

Features & Applications

Features

No reworking of base steel – corrosion protection remains intact
Versatile – suitable for use on most standard and high-strength construction steel
Secure – creates a true weld to the base material for an extremely strong hold and high loading capacity
Portable, cordless system – eliminates the need for long electric supply cords
Corrosion-resistant – suitable for marine, offshore, petrochemical and power plants applications

Applications

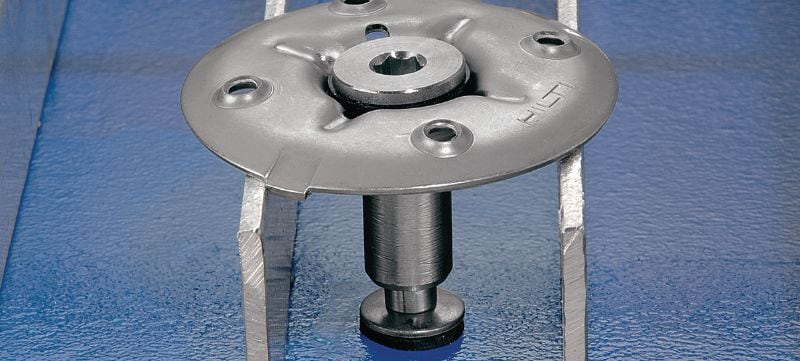

Fastening gratings to steel structures using the X-FCM-M and X-FCM-R grating disc
Fastening cable trays, strut, light duty electrical applications (T-bars, instrumentation panels, junction boxes)
Fastenings to fire coated (PFP) beams
Designed to work on steel thicknesses of 8 mm (5/16") and above

For approval or certificate information, please see individual items.
