HUS4-HR Screw anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
L026965_HUS-HR.tif
L144823_cropped (1918649)
L156302_cropped (4393580)

High-performing hexagonal head screw anchor for fastening to concrete (stainless steel)

  • Material, corrosion: Stainless Steel, 316
  • Head configuration: Hex head
  • Approvals / test reports: ETA, Fire

Choose options

Anchor size
  • 6 mm
  • 8 mm
Anchor length
  • 45 mm
  • 65 mm
Pack size
  • 25 pc
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From OMR 4.457

Technical Data

Material, corrosion
Stainless Steel, 316
Head configuration
Hex head
Approvals / test reports
ETA, Fire
Base materials
Concrete (aerated), Concrete (cracked), Concrete (non-cracked), Masonry (solid)
Cleaning procedures
Manual cleaning, Non-cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor, Outdoor, low to moderate pollution (C3), Outdoor with heavy industrial pollution
Material composition
Stainless steel, A4

Documents

Approval document
Technical information
Certificate
Brochure
Sustainability Documentation
pdf ETA-20/0867 HUS4 screw anchor in concrete , English, German [ 33.9 MB ]
pdf ETA-10/0005, HUS4/HUS3/HUS for fastening in concrete, static loading, ML, German, English, French, Polish [ 13.3 MB ]
pdf ETA-18/1160 HUS4-MAX Bonded screw, English, German, Polish [ 5.7 MB ]

Features & Applications

Features

  • Removable and high corrosion resistance – ideal for outdoor applications
  • Faster, simpler, safer installation – no cleaning, torque wrench or hammering required, now compatible with the SI-AT-22 Adaptive Torque Module
  • Improved setting with less blocking – thanks to smaller core diameter and new thread design
  • Hexagonal head – with an integrated washer
  • Cost-saving design – pair with PROFIS Engineering software to optimise designs and reduce material costs

Applications

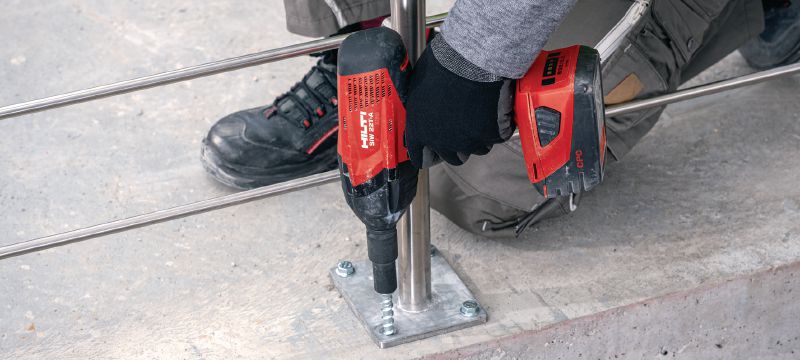

  • Fastening of baseplates – such as secondary steelwork, fences, handrails and racking systems
  • Suitable for use in uncracked and cracked concrete
  • Assessed for use in a range of conditions: static, quasi-static, seismic (C1) and fire
  • Suitable for dry indoor and outdoor use, including high corrosion environments

For approval or certificate information, please see individual items.
