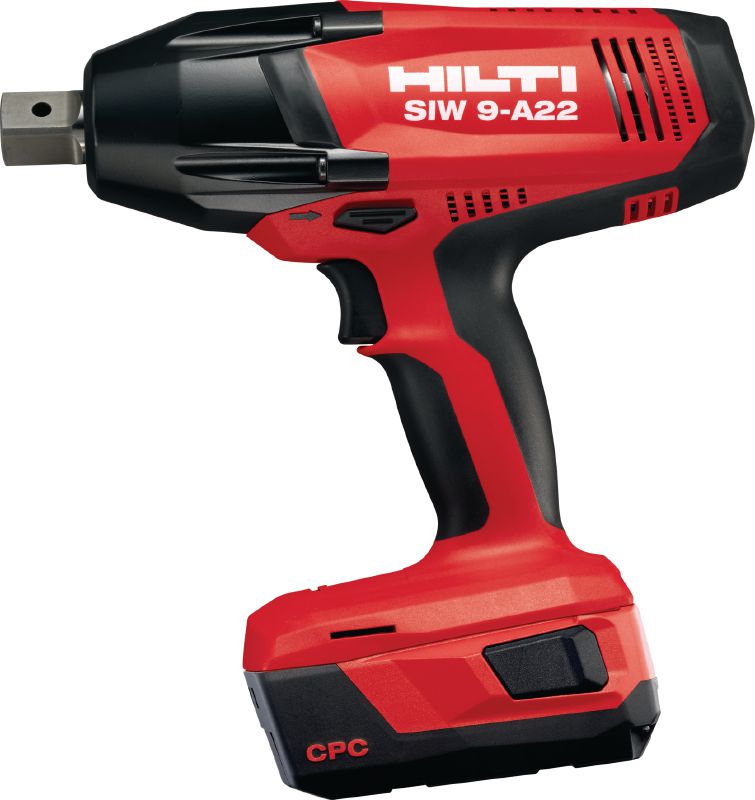

SIW 9-A22 3/4" Cordless impact wrench

Cordl. impact wrench SIW 9-A22 3/4" box #2242015

L115817 (198118)
L115818_HNA (202857)
L116214_cropped (198126)
L116245_cropped (198130)
L119292_cropped (201148)
L119321_cropped (201154)
L119314_cropped (201151)
L119304_cropped (201155)

Ultimate-class 22V high-torque impact wrench with 3/4" through hole anvil for bolting and anchoring

  • Anvil type: 3/4" through hole
  • Maximum torque: 800 Nm (1)
  • Nut-busting torque: 875 Nm

Customers also searched for impact gun,  rattle gun,  power wrench or nut runner.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
OMR 381.679
OMR 381.680
/
1 each

Technical Data

Anvil type
3/4" through hole
Maximum torque
800 Nm (1) 1
Nut-busting torque
875 Nm
Full hammering frequency
2200 impacts/minute
Number of gears
1
Dimensions (LxWxH)
250 x 92 x 267 mm
Tool body weight
2.86 kg
A-weighted emission sound pressure level
98.5 dB (A) 2
Rated voltage
21.6 V
  1. Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
  2. According to the applicable product standard (see Operating Instruction for more details)

Features & Applications

Features

  • Robust metal gearbox housing for demanding jobsite conditions
  • High-strength steel 3/4" square anvil drive with thru-hole retention for long lifetime
  • Durable and user-friendly E-spring lets you fit impact sockets in one step
  • Low vibration values due to double-hammer gearbox allow long periods of productive work
  • Centred balance point for precise handling in all working directions

Applications

  • Tightening and releasing M16 to M24 nuts and bolts
  • Tightening and releasing 5/8" to 1" nuts and bolts

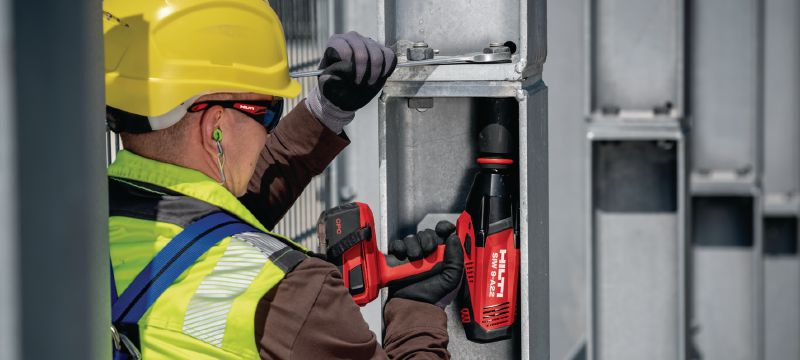

  • Assembling steel profiles, formwork, timber or precast concrete components

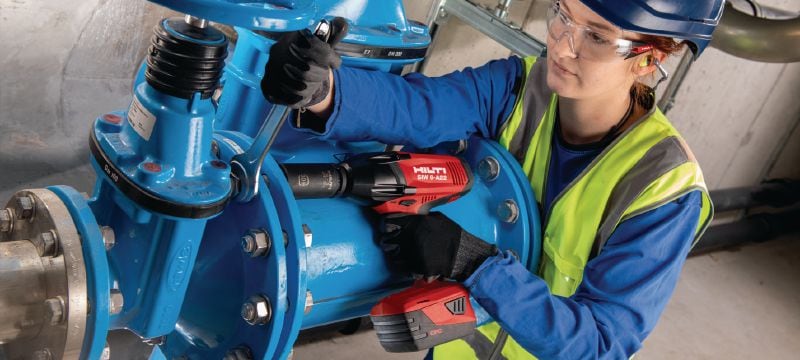

  • Pre-tightening bolts on the flanges of large-diameter pipes
  • Pre-tightening nuts and bolts up to 1-1/4"

Services

Hilti Tool Service

  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
More information about Tool Services

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 3-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
