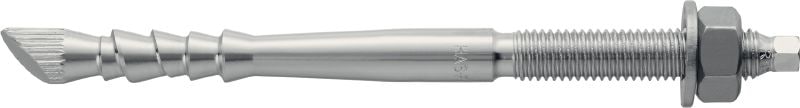

Ultimate-performance anchor rod for adhesive capsules in cracked concrete (A4 stainless steel)

  • Material, corrosion: Stainless steel, A4
  • Environmental conditions: Costal areas / Roads with de-icing salt, Outdoor (more than 1km to coast), Outdoor with heavy industrial pollution
  • Base materials: Concrete (cracked), Concrete (non-cracked)

Customers also searched for anchor rodsanchoringanchoring rodsstandard anchor rod or anchor rod setting.

Choose options

Anchor size
  • M12
  • M16
Anchor length
  • 181 mm
  • 183 mm
  • 201 mm
  • 231 mm
  • 271 mm
Material composition
  • Steel, A4 (SS316)
Head configuration
  • Externally threaded
Pack size
  • 5 pc
  • 10 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From OMR 25.973

Technical Data

Material, corrosion
Stainless steel, A4
Environmental conditions
Costal areas / Roads with de-icing salt, Outdoor (more than 1km to coast), Outdoor with heavy industrial pollution
Base materials
Concrete (cracked), Concrete (non-cracked)
PROFIS software
Yes
Approvals / test reports
BZS/shock, ETA, Fire
Type of fastening
Pre-fastening

Documents

Features & Applications

Features

  • High-performance capsule anchor
  • Minimal sensitivity to cracked concrete (tension zone)
  • Minimal sensitivity to dynamic loads
  • Minimal sensitivity to application irregularities
  • Highly flexible solution

Applications

  • Suitable for fastenings in cracked concrete in combination with Hilti HVU-TZ capsules

For approval or certificate information, please see individual items.
