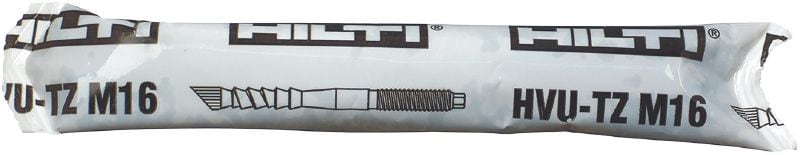

HVU-TZ Anchor capsule

6019.tif
6846.tif
5315.tif
7402.tif

Ultimate-performance foil adhesive capsule for anchoring in concrete with dynamic loads

  • Approvals / test reports: ETA, Fire
  • Base material condition: Dry
  • PROFIS software: Yes

Customers also searched for anchoring structural steel, anchoring road barriers, anchors or anchoring.

Choose options

Anchor size
  • M16
Standard embedment depth
  • 125 mm
Pack size
  • 16 pc
 Product options
Quantity
Packs
Total Pieces
16
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
OMR 3.529
OMR 3.530
/
1 each

Technical Data

Approvals / test reports
ETA, Fire
Base material condition
Dry
PROFIS software
Yes
Material composition
Hybrid urethane methacrylate adhesive
In-service temperature – range
-40 - 80 °C
Storage and transportation temperature range
5 - 25 °C
Seismic loading
No
Installation direction
All
Cleaning procedures
Manual cleaning, Non-cleaning

Documents

pdf ETA-17/0200 for adhesive capsule HVU-TZ and HAS-TZ, English, German, Polish [ 2.1 MB ]
pdf ETA 03/0032 for HVZ adhesive anchor system (ETAG 001-05, Option 1), German, English [ 2.8 MB ]

Features & Applications

Features

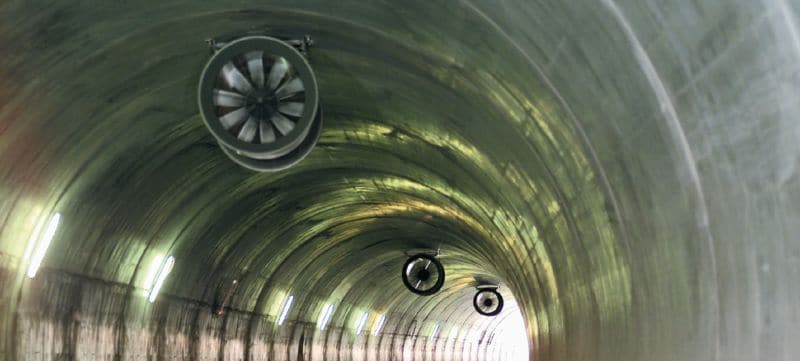

  • Tested according to standard temperature curve (ISO 834) and the German tunnel temperature curve (ZTV-ING, part 5)
  • Formulated for flexibility – you can use these adhesive capsules for a wide range of load conditions, concrete types and approval requirements
  • Suitable for use in cracked concrete
  • Suitable for dynamic loading subject to fatigue and shock
  • Flexible foil capsule instead of glass: a robust product for real jobsite conditions

Applications

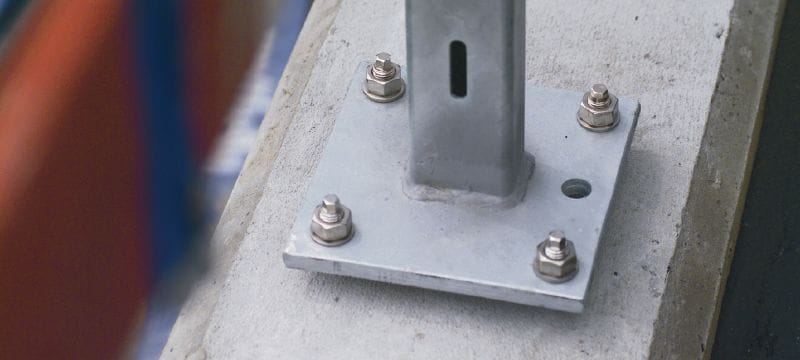

  • Heavy-duty fastenings in cracked concrete (steel structures, machinery, crash and noise barriers, curtain wall structures, railings.)
  • For safety-relevant fastenings
  • Dynamic loads

For approval or certificate information, please see individual items.
