SP-L core bit

Configurator
Technical Data
Features & Applications
Related Products
L097745_gray_320mm_SP (3153762)
L046375_v1_cropped (182795)
L046391_v1_cropped (182796)

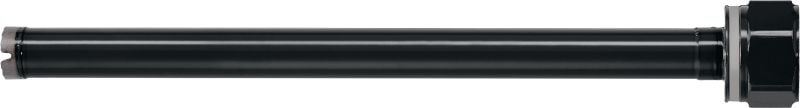

Premium core bit for coring in all types of concrete – for <2.5 kW tools (without connection end)

  • Base materials: Concrete
  • Drilling mode: Rig-mounted
  • Wet or dry operation: Wet

Choose options

Diameter
  • 12 mm
  • 14 mm
  • 16 mm
  • 18 mm
  • 72 mm
Working length
  • 320 mm
Connection end
  • BI (Hilti)
  • No connection end
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From OMR 63.379

Technical Data

Base materials
Concrete
Drilling mode
Rig-mounted
Wet or dry operation
Wet
X-Change module
No
Laser-welded segments
Yes
Connection end
BI (Hilti), BR (1/2 in), BS (1-1/4 in)
Segment height
8 mm

Features & Applications

Features

  • Hilti Equidist technology (35 mm diameter and above) – precisely positioned diamonds for unmatched drilling performance
  • Constant high drilling speed over the entire life of the core bit
  • Designed for the most challenging conditions, the core bit excels in concrete with a high rebar content
  • Diamond core bit without the Hilti X-Change module system

Applications

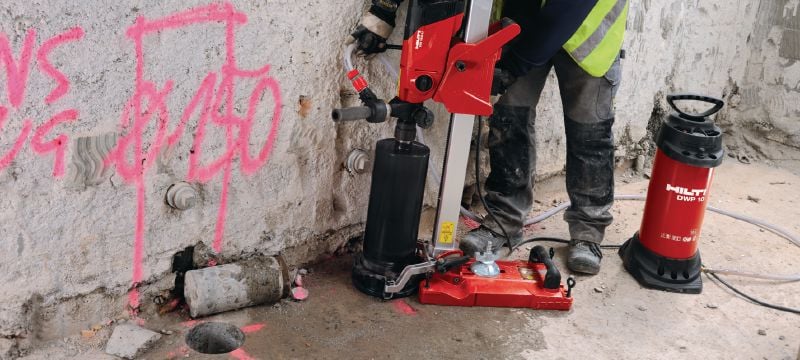

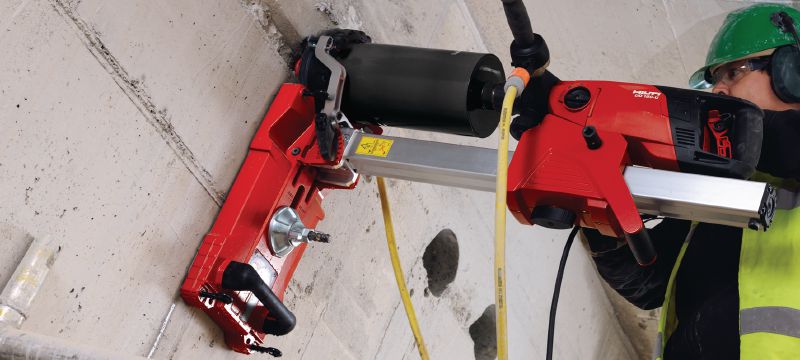

  • Rig-based wet coring in all types of concrete

For approval or certificate information, please see individual items.
