SPX-H abrasive core bit

Configurator
Technical Data
Features & Applications
Related Products
L097734_green_colorcode (180853)
L097745_green_320mm (180982)
L097742_green (180871)
L094398_cropped (181088)
L084330.tiff (81174)
L084294_V2 (112002)

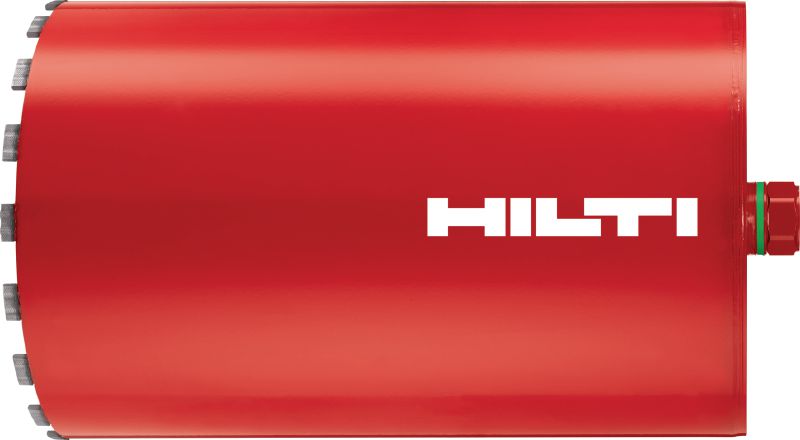

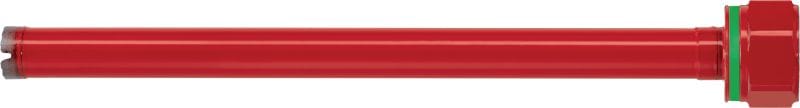

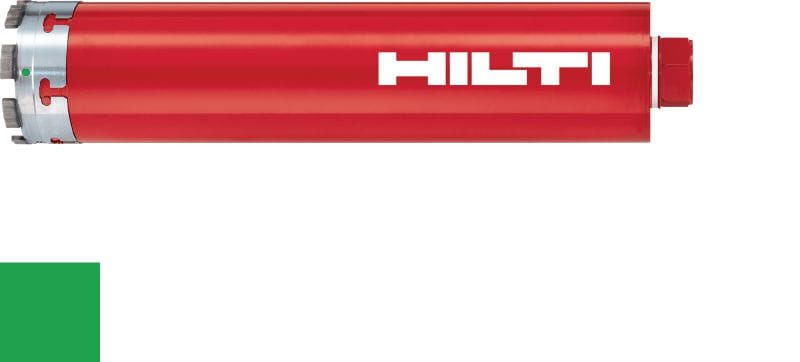

Ultimate core bit for coring in very abrasive concrete – for ≥2.5 kW tools (without connection end)

  • For use with: DD 200, DD 350-CA, DD 500-CA
  • Base materials: Concrete
  • Drilling mode: Rig-mounted

Choose options

Diameter
  • 40 mm
  • 225 mm
  • 250 mm
  • 300 mm
  • 350 mm
  • 400 mm
  • 450 mm
  • 500 mm
  • 600 mm
Working length
  • 430 mm
Connection end
  • No connection end
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From OMR 172.673

Technical Data

For use with
DD 200, DD 350-CA, DD 500-CA
Base materials
Concrete
Drilling mode
Rig-mounted
Wet or dry operation
Wet
X-Change module
Yes (52-202 mm)
Laser-welded segments
Yes
Connection end
BL (Hilti), BX (Pixie), BS (1-1/4 in), BU (Hilti)
Segment height
10 mm

Features & Applications

Features

  • Hilti Equidist technology (35 mm diameter and above) – precisely positioned diamonds for unmatched drilling performance and constant drilling speeds over the entire life of the core bit
  • Unique Hilti X-Change module system (52-202 mm diameter) enables easy core removal, fast stuck core bit recovery and on-site retipping using just a flat-tip screwdriver
  • Save significant space and weight by replacing traditional core bits with a single barrel and multiple modules (X-Change module)
  • Designed for the most challenging conditions, the core bit excels in concrete with a high rebar content

Applications

  • Rig-based wet coring in very abrasive concrete

For approval or certificate information, please see individual items.
