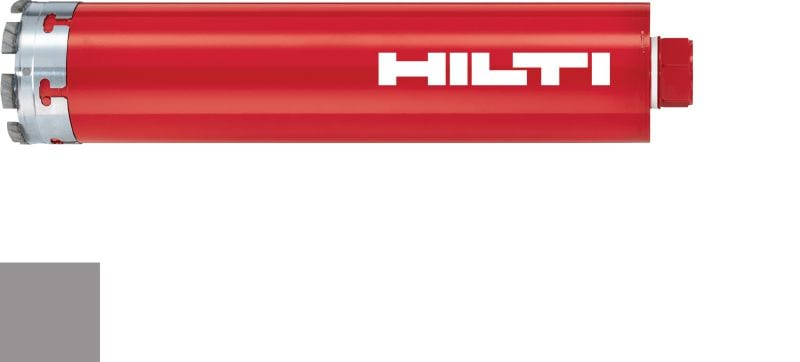

SPX-L core bit

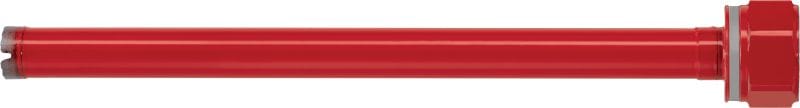

Diamond Core bit BI 12/320 SPX-L #2159012

Configurator
Technical Data
Features & Applications
Related Products
L097745_BI_gray_320mm (180977)
70861 (123492)
L046391_cropped (181089)

Ultimate core bit for coring in all types of concrete – for <2.5 kW tools (without connection end)

  • Base materials: Concrete
  • Drilling mode: Rig-mounted
  • Wet or dry operation: Wet

Choose options

Diameter
  • 12 mm
Working length
  • 320 mm
Connection end
  • BI (Hilti)
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
OMR 71.706
OMR 71.710
/
1 each

Technical Data

Base materials
Concrete
Drilling mode
Rig-mounted
Wet or dry operation
Wet
Laser-welded segments
Yes
Connection end
BI (Hilti)
Diameter
12 mm
Working length
320 mm
Segment height
10 mm
Number of segments
1

Features & Applications

Features

  • Hilti Equidist technology (35 mm diameter and above) – precisely positioned diamonds for unmatched drilling performance and constant drilling speeds over the entire life of the core bit
  • Unique Hilti X-Change module system (52-202 mm diameter) enables easy core removal, fast stuck core bit recovery and on-site retipping using just a flat-tip screwdriver
  • Save significant space and weight by replacing traditional core bits with a single barrel and multiple modules (X-Change module)
  • Designed for the most challenging conditions, the core bit excels in concrete with a high rebar content

Applications

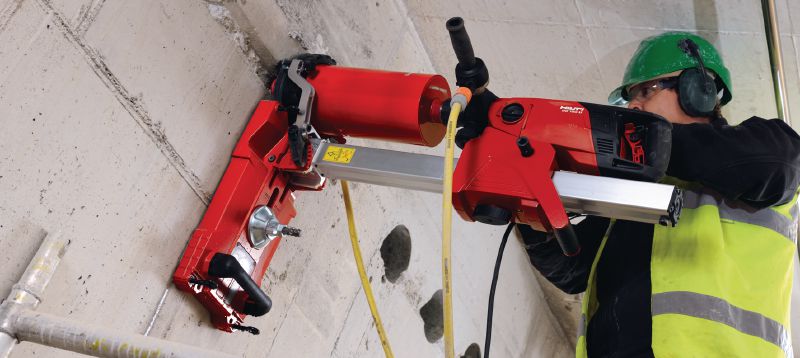

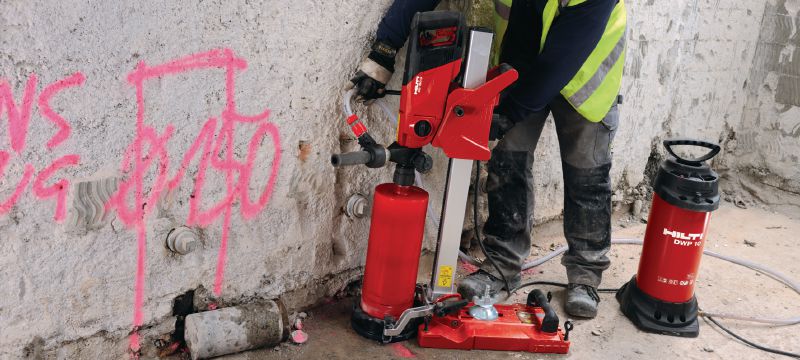

  • Rig-based wet coring in all types of concrete
