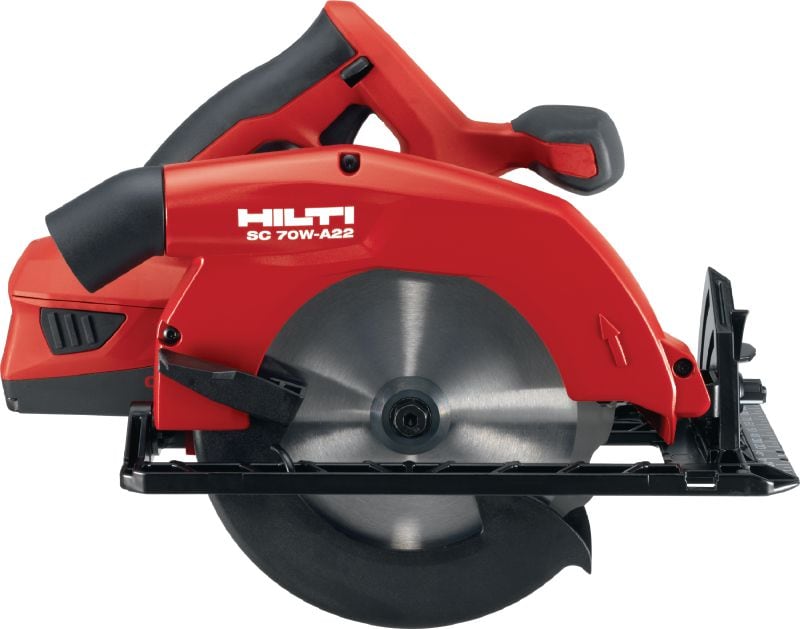

SC 70W-A22 Cordless circular saw

22V cordless circular saw for straight cuts up to 70 mm depth

  • Max. cutting depth: 70 mm
  • Blade diameter: 190 mm
  • Base material: Wood, Sandwich panel

Technical Data

Max. cutting depth
70 mm
Blade diameter
190 mm
Base material
Wood, Sandwich panel
No load RPM
gear 1: 3500 rpm
Guiding rail compatibility
Yes
Cutting depth at 45 degrees
51 mm
Max. bevel angle
50 °
Maximum Cross Cut Capacity
x
A-weighted emission sound pressure level
81 dB (A) 1
Triaxial vibration value for sawing into wood (ah,W)
1.3 m/s² 2
  1. According to the applicable product standard (see Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Features & Applications

Features

  • Versatile battery-powered circular saw with a virtually maintenance-free brushless motor and deeper cutting depth of 70 mm
  • Very fast blade stop (0.5 sec) for increased operator safety
  • Compatible with Hilti vacuums for dust removal
  • Full guide rail compatibility – cut precise 45 and 90 degree angles using this hand-held circular saw
  • Very fast blade stop (0.5 sec)

Applications

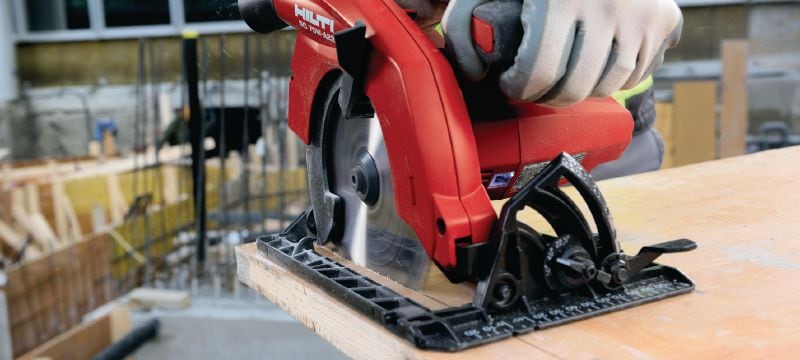

  • Rip and cross cuts up to 70 mm cutting depth
  • Bevel and mitre cuts, with or without a guide rail
  • General construction: cutting formwork board, OSB, plywood, chipboard, plastics, rafters and battens
  • Interior finishing: cutting plasterboard, cement board, MDF and HDF
  • Electrical installation: horizontal wall cuts

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
More information about Tool Services
Lifetime_2_en_us_line.eps

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 3-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
