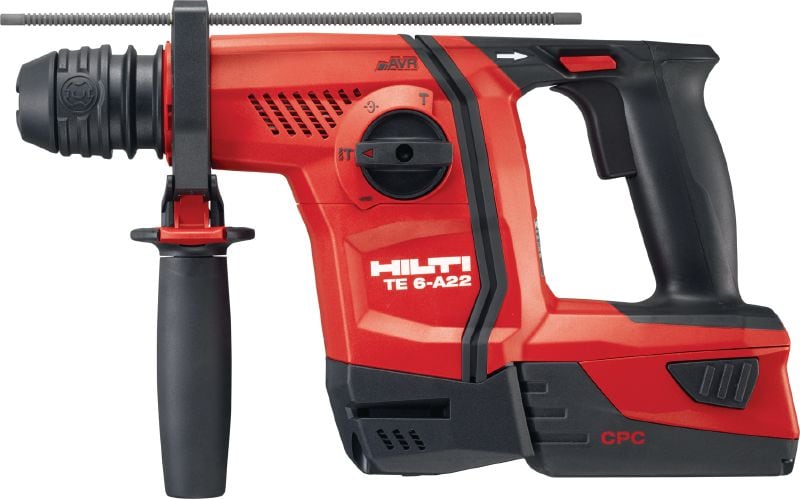

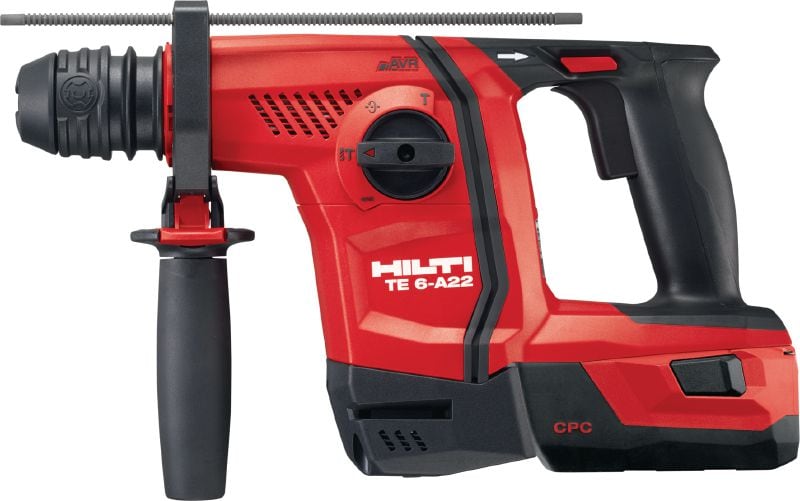

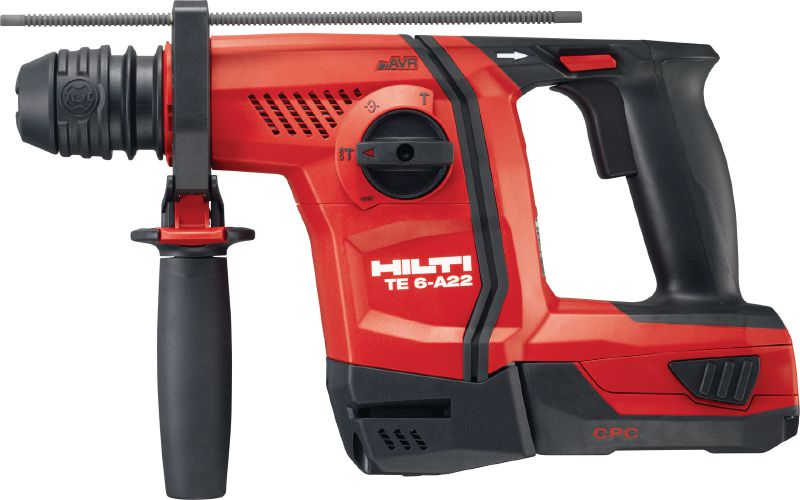

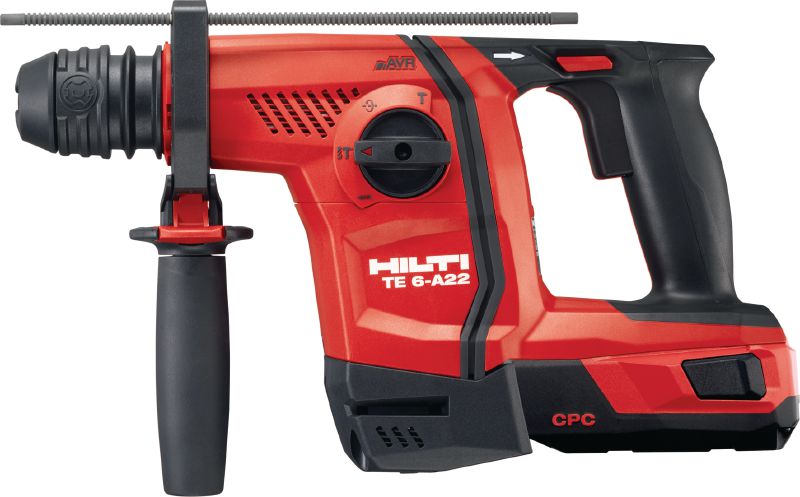

TE 6-A22 Cordless rotary hammer

Cordless rotary hammer TE 6-A22 case #2162758

L096770 (178535)
L097788_cropped (180145)
L097699_cropped (180143)
L097688_cropped (180141)
L110466_cropped (191060)
L096770 (178535)
L097788_cropped (180145)
L097699_cropped (180143)
L097688_cropped (180141)
L110466_cropped (191060)

Powerful D-grip 22V cordless rotary hammer with superior concrete drilling and chipping performance

  • Weight according to EPTA-Procedure 01/2003 without battery: 3.7 kg
  • Optimum hammer drilling range: 6 - 16 mm
  • Single impact energy: 2.5 J

Customers also searched for hammer drill, sds drill or drill.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

OMR 477.347

OMR 477.350 / 1 each

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
3.7 kg
Optimum hammer drilling range
6 - 16 mm
Single impact energy
2.5 J
Hammer drilling diameter range
4 - 20 mm
Hammer drilling RPM
1050 rpm
Full hammering frequency
5100 impacts/minute
Functionality
Active Vibration Reduction (AVR), Removable chuck, LED working light, Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
19.9 m/s² 1
Triaxial vibration for chiselling in concrete
10.9 m/s² 2
A-weighted emission sound power level
100 dB (A) 3
A-weighted emission sound pressure level
89 dB (A) 4
Dust removal system available
TE DRS-6-A, TE DRS-D, TE DRS-S, DCD
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see Operating Instruction for more details)
  4. According to the applicable product standard (see Operating Instruction for more details)

Features & Applications

Features

  • Powerful, cordless rotary hammer, designed for serial anchor hole drilling in concrete
  • Full compatibility with all Hilti 22V batteries
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity

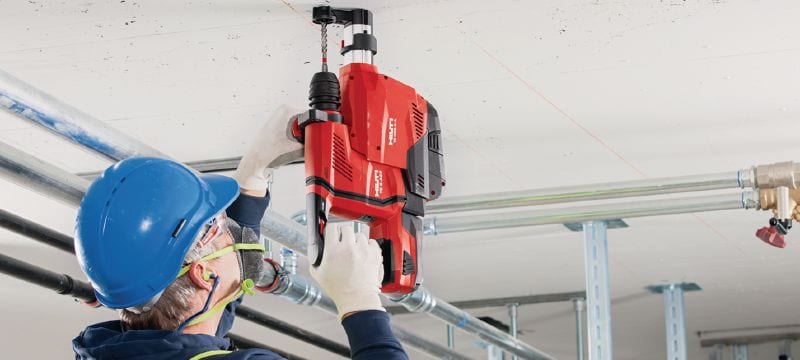

  • Virtually dustless drilling when used with the DRS-6-A dust removal system
  • Quick-change TE-C Click chuck for versatility and ease of use

Applications

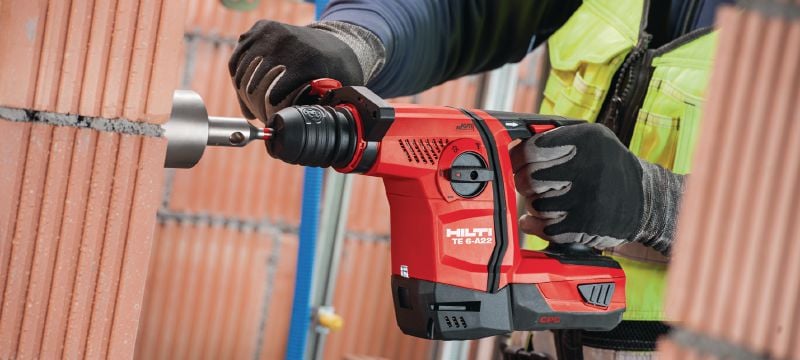

  • Drilling and hammer drilling in concrete and masonry
  • Occasional drilling in wood and steel with optional quick-release chuck
  • Screwdriving using the special bit holder with a TE-C (SDS Plus) connection end

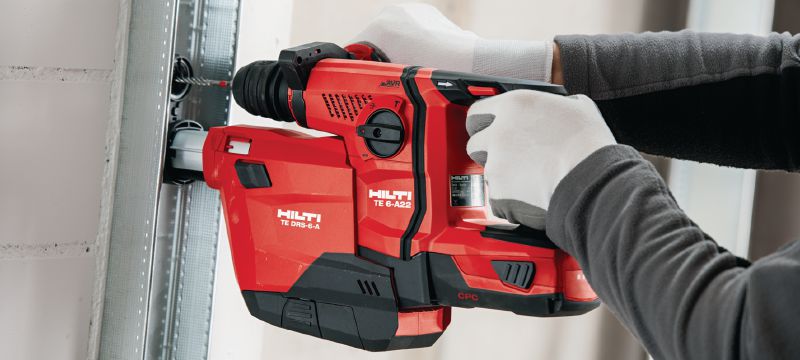

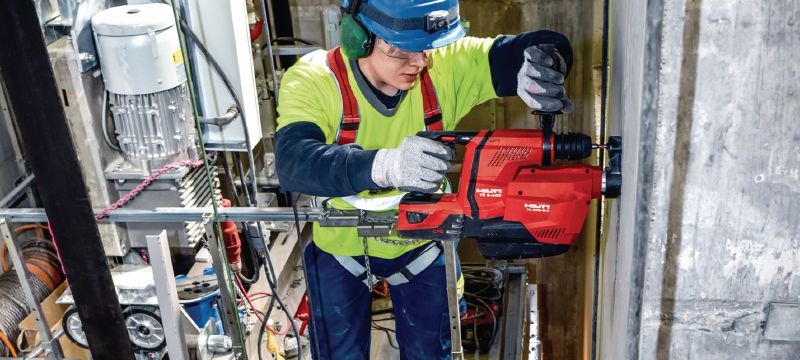

  • Drilling in concrete in clean areas using the DRS-6-A (02) integrated dust removal system
  • Light chiselling

Services

Hilti Tool Service

  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
More information about Tool Services
Lifetime_2_en_us_line.eps

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 3-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
