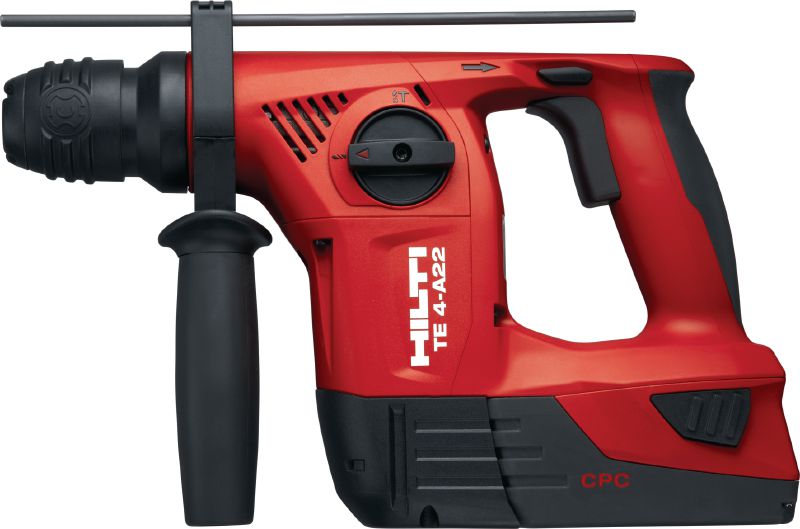

TE 4-A22 Cordless rotary hammer

Cordless rotary hammer TE 4-A22 cas #2098475

TE 4-A22,TE 4-A22 (HNA) Cordless rotary hammers G02 2nd Generation (69379)
TE 4-A22,TE 4-A22 (HNA) Cordless rotary hammers G02 2nd Generation (69374)
TE 4-A22, TE 4-A22 (HNA) Cordless rotary hammers G02 2nd Generation (69375)

Compact D-grip 22V cordless rotary hammer with superior handling in serial applications

  • Weight according to EPTA-Procedure 01/2003 without battery: 3.3 kg
  • Optimum hammer drilling range: 4 - 14 mm
  • Single impact energy: 2 J

Customers also searched for SDS drill, drill or hammer drill.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
OMR 422.972
OMR 422.970
/
1 each

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
3.3 kg
Optimum hammer drilling range
4 - 14 mm
Single impact energy
2 J
Hammer drilling diameter range
4 - 18 mm
Hammer drilling RPM
1050 rpm
Full hammering frequency
5200 impacts/minute
Functionality
Integrated Dust Removal System (DRS), Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
13.1 m/s² 1
A-weighted emission sound power level
99 dB (A) 2
A-weighted emission sound pressure level
88 dB (A) 3
Dust removal system available
TE DRS-4-A, TE DRS-D, TE DRS-S
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)
  3. According to the applicable product standard (see Operating Instruction for more details)

Features & Applications

Features

  • Ergonomically designed D-grip for comfortable use over long periods
  • Robustly built and engineered specifically for high-performance cordless drilling
  • Excellent performance-to-weight ratio and compact design

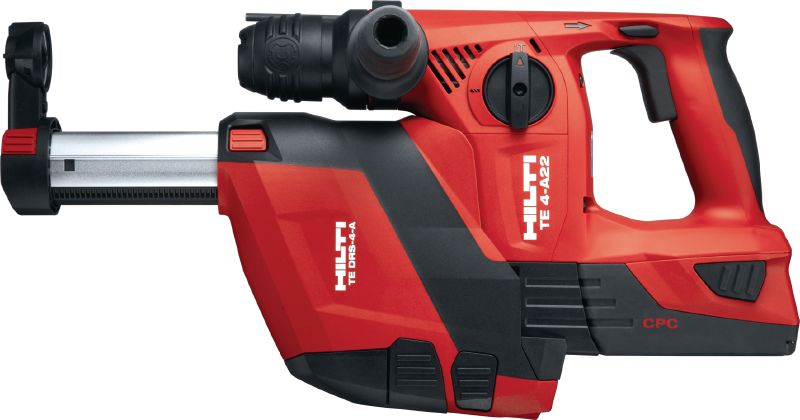

  • Virtually dustless drilling when used with the DRS-4-A dust removal system
  • Electronic switch for precise hole-starting

Applications

  • Drilling and hammer drilling in concrete and masonry
  • Occasional drilling in wood and steel with optional chuck adapter
  • Screwdriving using the special bit holder with TE-C (SDS Plus) connection end

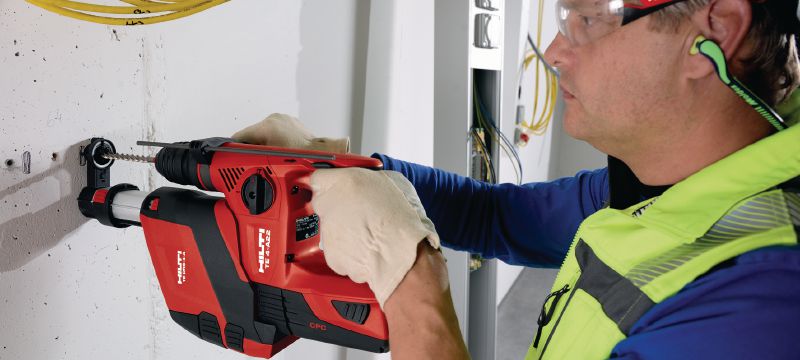

  • Drilling in concrete in clean areas using the integrated dust removal system (DRS-4-A)

Services

Hilti Tool Service

  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
More information about Tool Services

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 3-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
