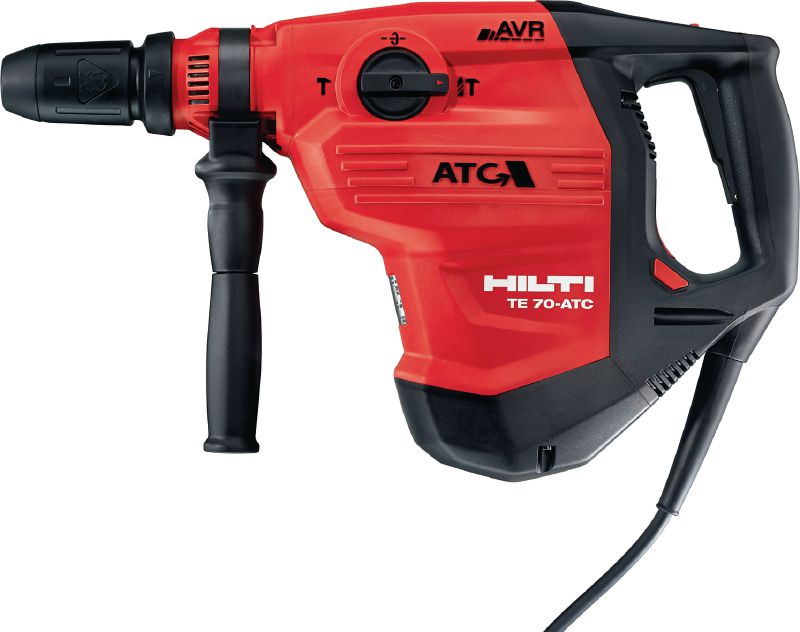

TE 70-ATC/AVR Rotary hammer

L059813.TIF
L062126.tiff
L061126.tiff
L062168.tiff
L061185.tiff

Very powerful SDS Max (TE-Y) rotary hammer for heavy-duty concrete drilling and chiselling, with Active Torque Control (ATC) and Active Vibration Reduction (AVR)

  • Weight according to EPTA-Procedure 01/2003 without battery: 9.5 kg
  • Single impact energy: 11.5 J
  • Hammer drilling diameter range: 12 - 55 mm

Customers also searched for drilling holes, demolition, drilling in concrete, drilling in wood and steel or tools & equipment.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From OMR 2,410.251

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
9.5 kg
Single impact energy
11.5 J
Hammer drilling diameter range
12 - 55 mm
Optimum hammer drilling range
20 - 40 mm
Hammer drilling RPM
360 rpm
Full hammering frequency
2760 impacts/minute
Functionality
Active Torque Control (ATC), Active Vibration Reduction (AVR), Chiselling, Power reduction
Triaxial vibration value for hammer drilling into concrete (ah,HD)
10 m/s² 1
Dust removal system available
TE DRS-Y, TE DRS-D, TE DRS-BK
Triaxial vibration for chiselling in concrete
10 m/s² 2
Rated input power
1800 W
Dimensions (LxWxH)
540 x 125 x 324 mm
A-weighted emission sound power level
113 dB (A) 3
A-weighted emission sound pressure level
102 dB (A) 4
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see Operating Instruction for more details)
  4. According to the applicable product standard (see Operating Instruction for more details)

Features & Applications

Features

  • Highest productivity for a wide range of drilling and chiselling applications
  • Low contact pressure for high user comfort
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • Optional DRS-Y dust removal system collects up to 95% of dust
  • Ruggedly built for a long lifetime

Applications

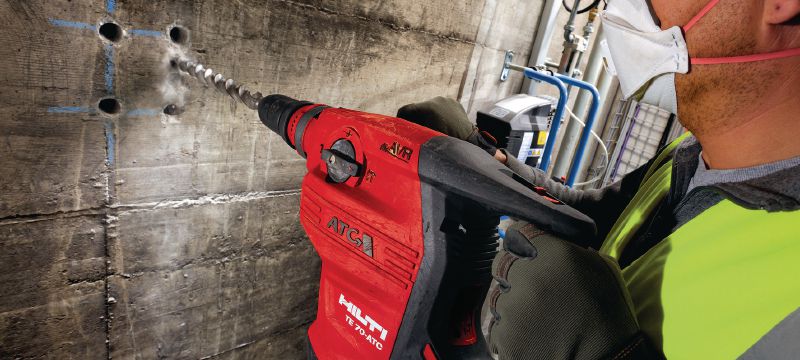

  • Hammer drilling in concrete, masonry and natural stone with drill bits 12 - 150 mm in diameter
  • Drilling holes for heavy-duty anchors from 20-40 mm in diameter

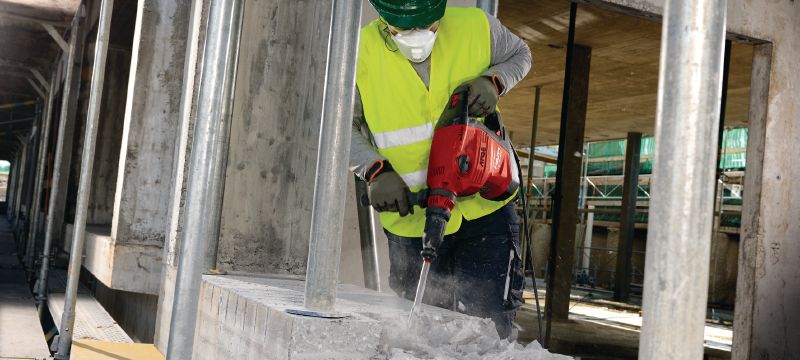

  • Breaching and demolition with pointed and flat chisels
  • Drilling with high torque in wood and steel
  • Hammer drilling in concrete, masonry and natural stone with drill bits 1/2" - 6" in diameter

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
More information about Tool Services

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 3-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
