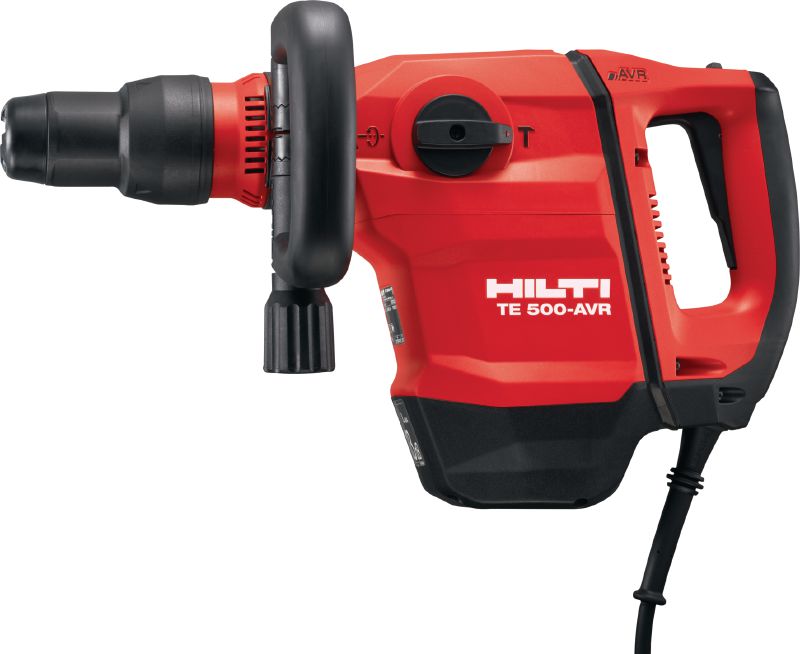

TE 500-AVR SDS-Max chipping hammer

Versatile SDS Max (TE-Y) demolition hammer for light-duty chiseling in concrete and masonry, with Active Vibration Reduction (AVR)

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From OMR 549.354

Technical Data

Working direction

Wall

Tool chuck type

TE-Y (SDS-max)

Weight according to EPTA-Procedure 01/2003 without battery

6.3 kg

Single impact energy

8.5 J

Full hammering frequency

3510 impacts/minute

Max. chiselling performance

1000 cm³/min

Dimensions (LxWxH)

467 x 118 x 265 mm

Triaxial vibration for chiselling in concrete

8.2 m/s² ¹

Dust removal system available

TE DRS-B

A-weighted emission sound pressure level

96 dB (A) ²

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)

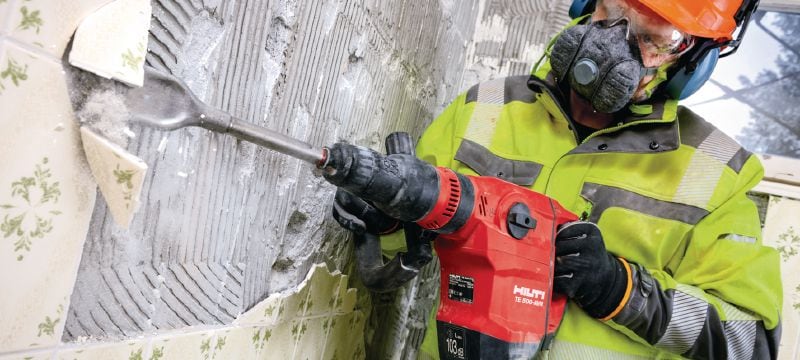

High versatility for a wide range of chiseling applications
Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
High robustness and long lifetime due to separate lubrication chambers

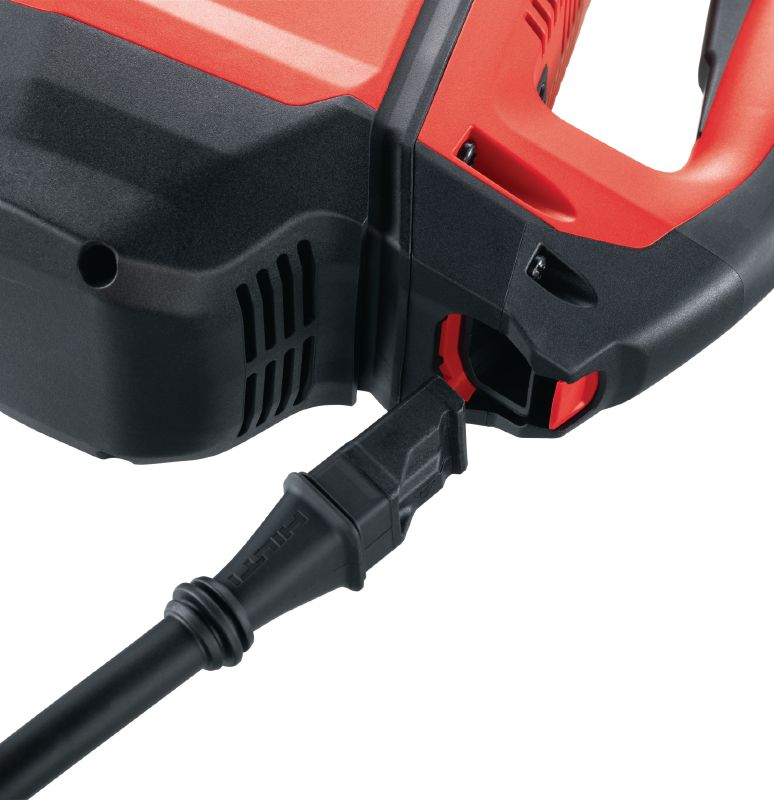

Detachable supply cord for quick and easy replacement of damaged/broken cords on the jobsite

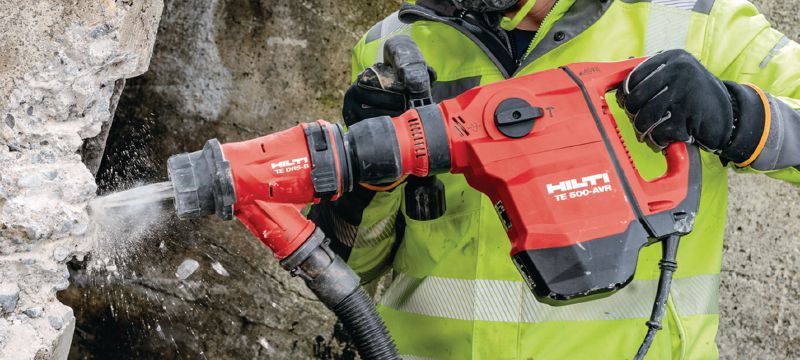

Optional DRS-B dust removal system collects up to 95% of dust
