Nuron

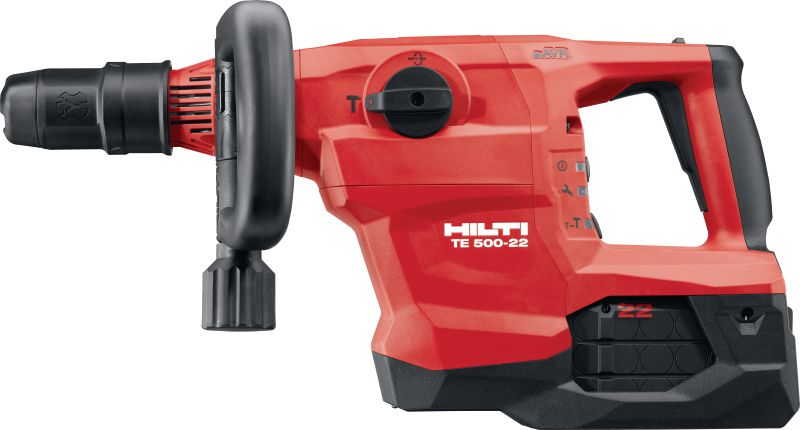

TE 500-22 SDS-Max cordless chipping hammer
Cordless SDS Max (TE-Y) demolition and chipping hammer with Active Vibration Reduction for chiseling concrete or masonry (Nuron battery platform)
- Working direction: Wall
- Tool chuck type: TE-Y (SDS-max)
- Tool body weight: 6 kg
Technical Data
Working direction
Wall
Tool chuck type
TE-Y (SDS-max)
Tool body weight
6 kg
Single impact energy
8.1 J
Full hammering frequency
3300 impacts/minute
Dimensions (LxWxH)
528 x 118 x 264 mm
Triaxial vibration for chiselling in concrete
8.7 m/s² 1
A-weighted emission sound pressure level
95 dB (A) 2
Rated voltage
21.6 V
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see Operating Instruction for more details)
Features & Applications
Features
- Uncompromised cordless performance – revolutionary Nuron batteries deliver the power to help you boost productivity and gain independence from other power supplies
- More power, more possibilities – TE 500-22 chipping hammers can perform all the full range of tasks as comparable corded demolition hammers
- Reduced worker fatigue – Active Vibration Reduction (AVR) helps minimise your exposure to vibration, better protecting your health and reducing interruptions on the jobsite
- Virtually dust-free demolition – contributes to safer jobsites when used with a DRS-B dust removal system connected to a compatible Hilti vacuum cleaner
- On the Nuron battery platform – cordless chipping hammers without compromise thanks to longer-lasting Nuron batteries, high-performance chisels and a range of services to keep you productive, today and tomorrow
Applications

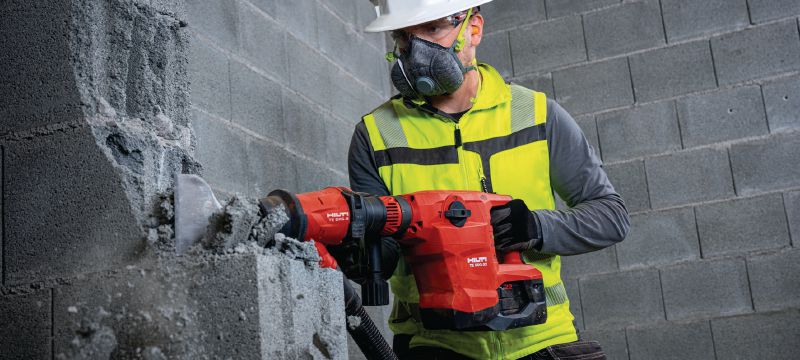

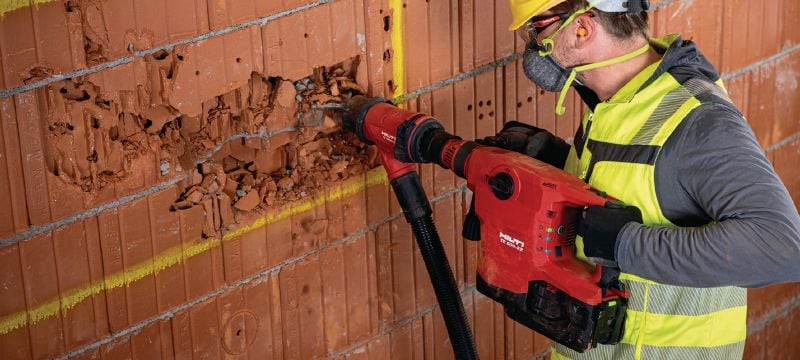

- Demolishing concrete and masonry walls

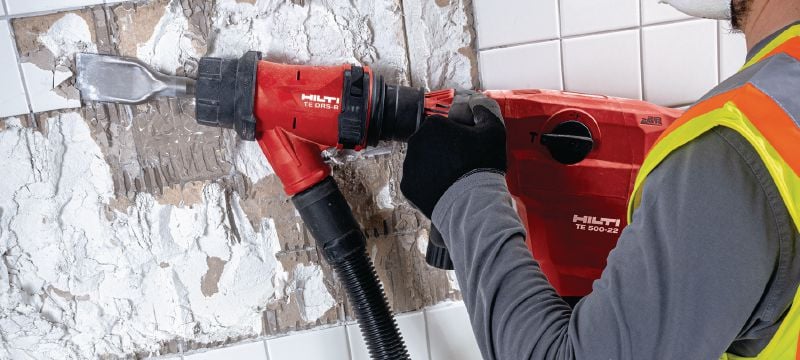

- Removing tiles and plaster
- Loosening compacted earth

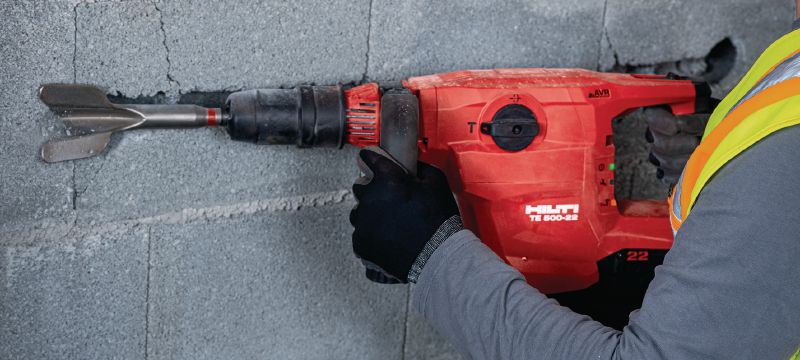

- Chiseling breaches, channels or penetrations for pipes in walls and floors
For approval or certificate information, please see individual items.
