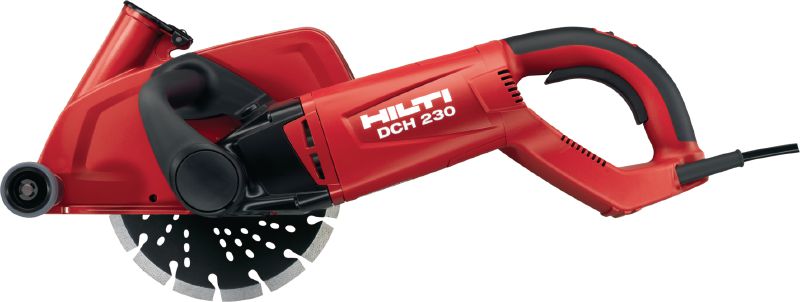

DCH 230 Electric cutter
Diamond cutter DCH 230 230V #47990
Dry electric hand-held diamond cutter – cutting depth up to 85 mm with 230 mm blade
- Disc diameter: 230 mm
- Cutting depth: 80 mm
- No load RPM: gear 1: 6500 rpm
Customers also searched for diamond cutting angle grinder, cutting metal beams, cutting reinforced concrete, cutting openings for windows or cutting.
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
OMR 1,332.614
OMR 1,332.610 / 1 each
Technical Data
Disc diameter
230 mm
Cutting depth
80 mm
No load RPM
gear 1: 6500 rpm
Triaxial vibration value for cutting concrete slab (ah)
4.7 m/s² 1
Weight
8.6 kg
Arbor size
22.2 mm
A-weighted emission sound pressure level
102.5 dB (A) 2
Dimensions (LxWxH)
661 x 239 x 235 mm
Wet or dry operation
Dry
Rated input power
2600 W
- According to the applicable product standard (see Operating Instruction for more details)
- According to the applicable product standard (see Operating Instruction for more details)
Features & Applications
Features
- Delivers 50% more cutting depth than typical angle grinders
- The inverted blade rotation guides the tool away from the operator's body and therefore makes cutting easier and safer

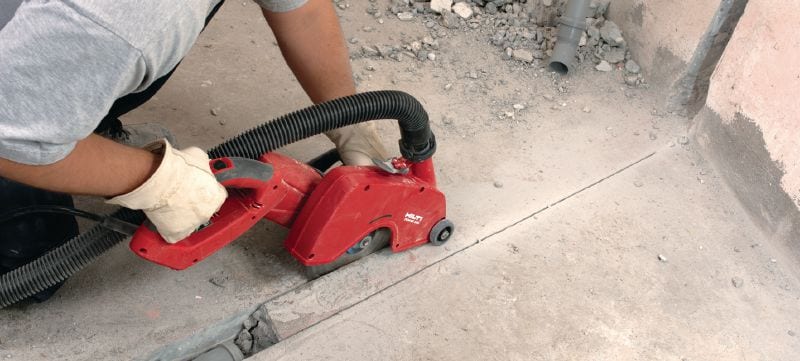

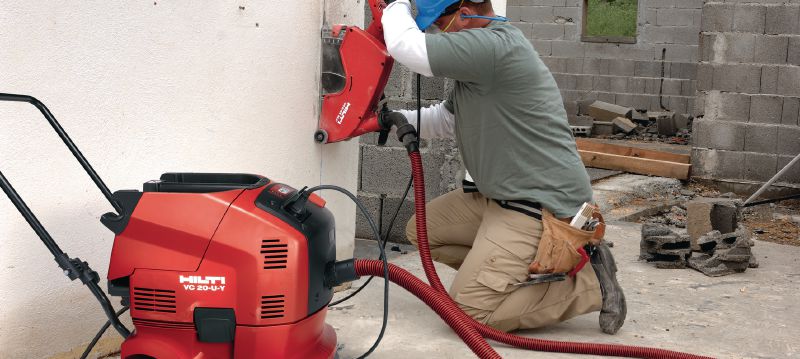

- Ensures a virtually dust-free jobsite when used with a compatible vacuum cleaner
- Achieve even greater productivity gains by using with specifically developed Hilti cutting discs
- Protection against overheating and overloading protection – prolongs the tool's lifetime and increases the operator's safety
Applications
- Cutting reinforced concrete, granite kerbstones, slabs, brick and masonry blocks
- Cutting metal beams, steel pipes and reinforcing bars
- Preliminary cuts for controlled demolition
- Cutting and extending openings for windows, doors and shafts
Services
Hilti Tool Service
- Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
- After the no-cost period, repair costs are capped
- Product warranty against parts and manufacturing irregularities for as long as we service the tool
- Product warranty against parts and manufacturing irregularities for 20 years
- 3-month no-cost period after each paid repair
LifeTime Services
- No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
- After the no-cost period, repair costs are capped for as long as we service the tool
- 3-month no-repair-cost period again after every paid repair
- Materials and workmanship warranty over the entire life of the tool
- Pick-up and delivery service
